Rail Pressure Sensor (RPS): Specifications: Specifications

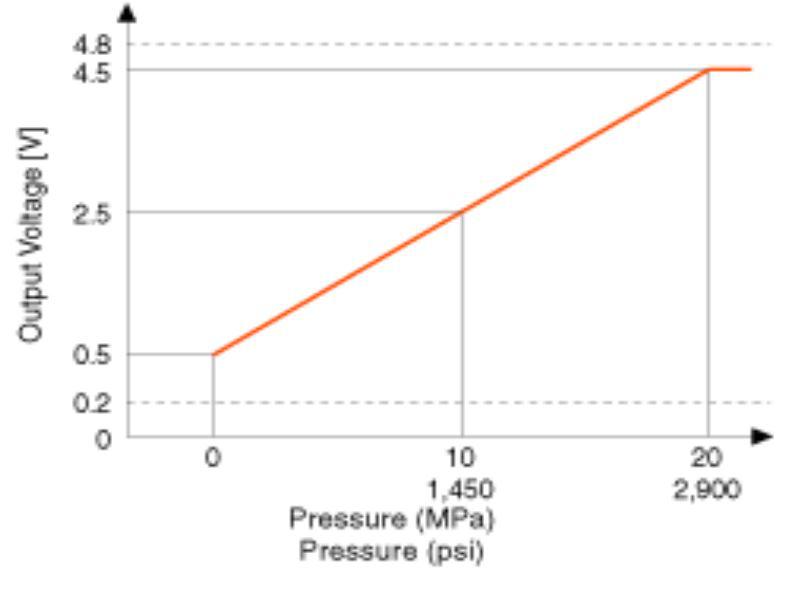

Fig 1: Rail Pressure Sensor (RPS) Output Voltage & Pressure

G00540462

Courtesy of HYUNDAI MOTOR CO.
