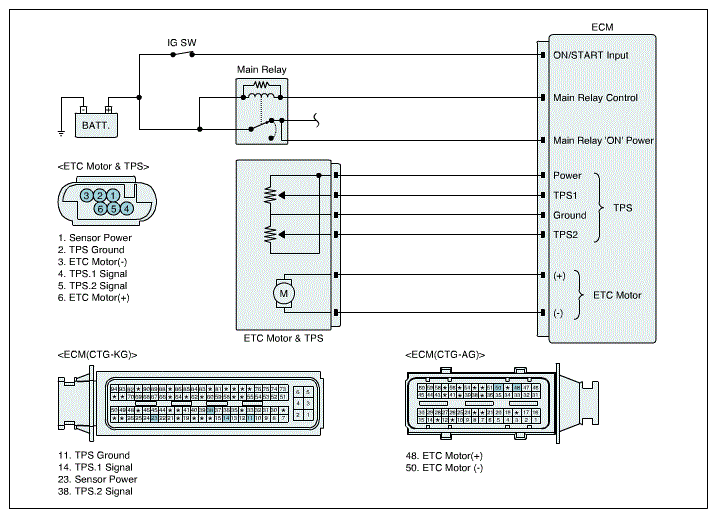

Home >> Hyundai >> 2012 >> Equus Ultimate >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 2) - 5.0L >> DTC P0122: Throttle Position Sensor 1 Signal Circuit Low Input >> General Information >> Diagnostic Circuit Diagram
