Home >> Hyundai >> 2011 >> Elantra Touring GLS, Standard >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension System >> Front Strut Assembly >> Components

Front Strut Assembly: Components

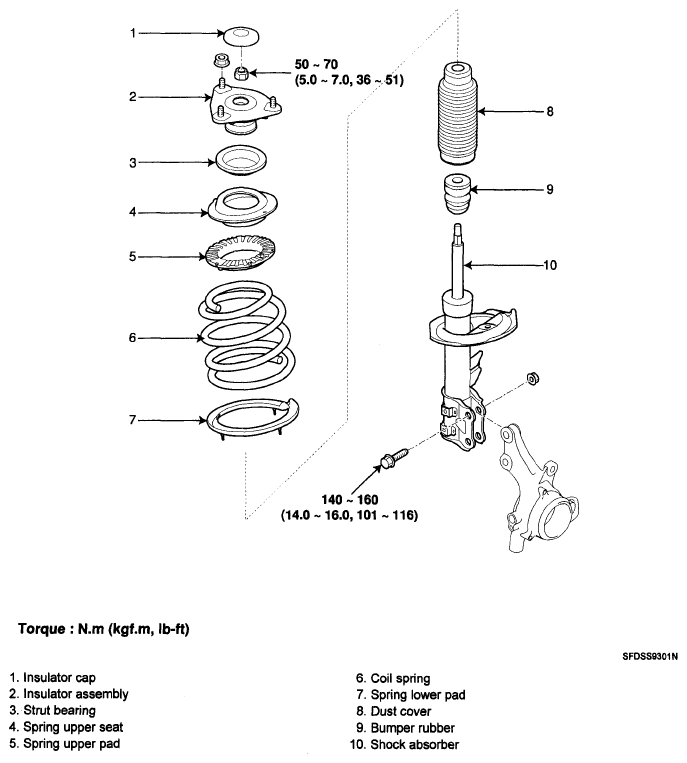

Fig 1: Front Strut Assembly Replacement Components With Torque Specifications

G06144248

Courtesy of HYUNDAI MOTOR CO.
