Home >> Hyundai >> 2003 >> Tiburon Base, Automatic >> Repair and Diagnosis (Single Page) >> Transmission >> Automatic Transaxle System >> General >> Elements In Use In Each Gear

Elements In Use In Each Gear

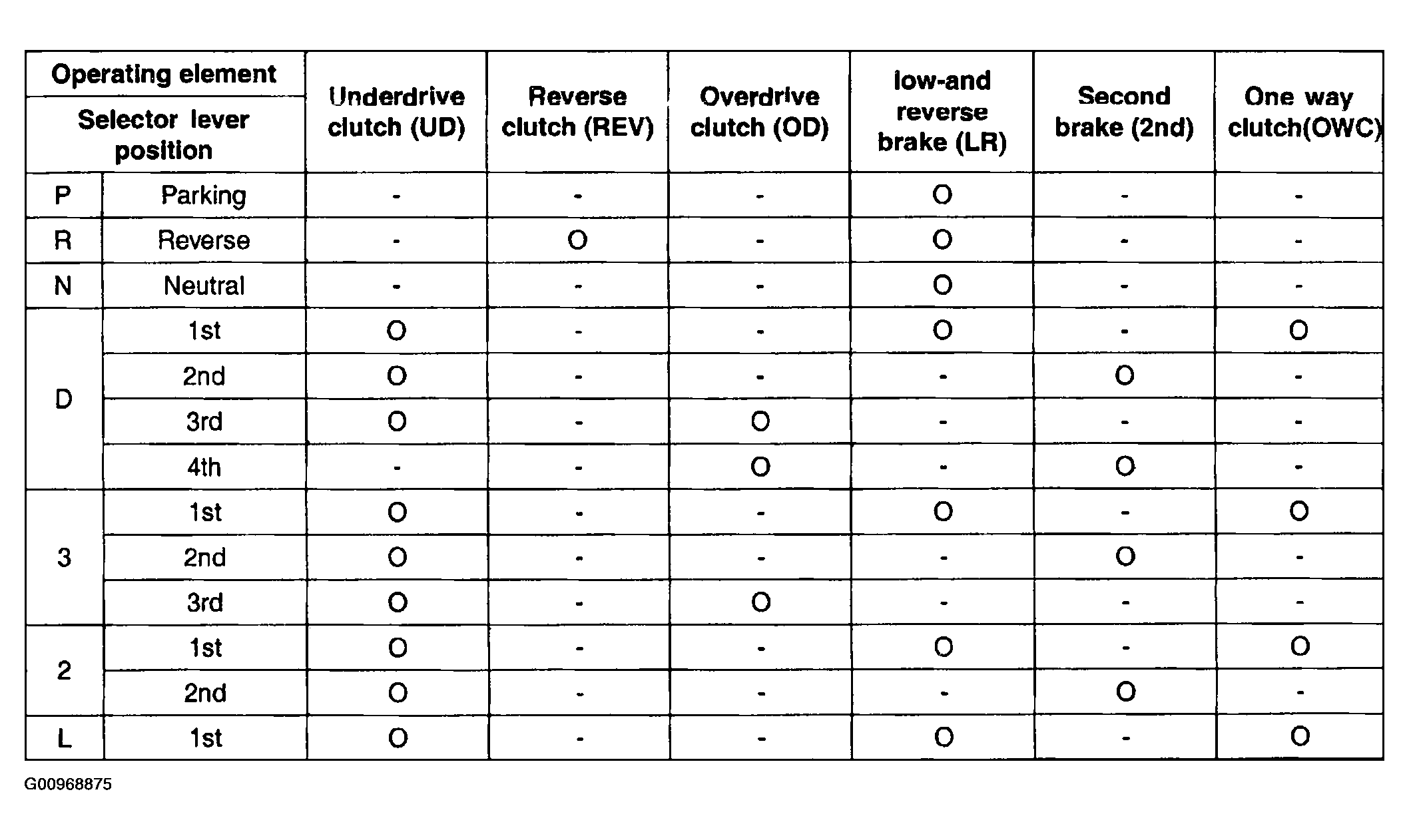

Fig 1: Elements In Use Chart

G00968875

Courtesy of HYUNDAI MOTOR CO.
