Manual A/C Compressor Controls: Compressor: Components

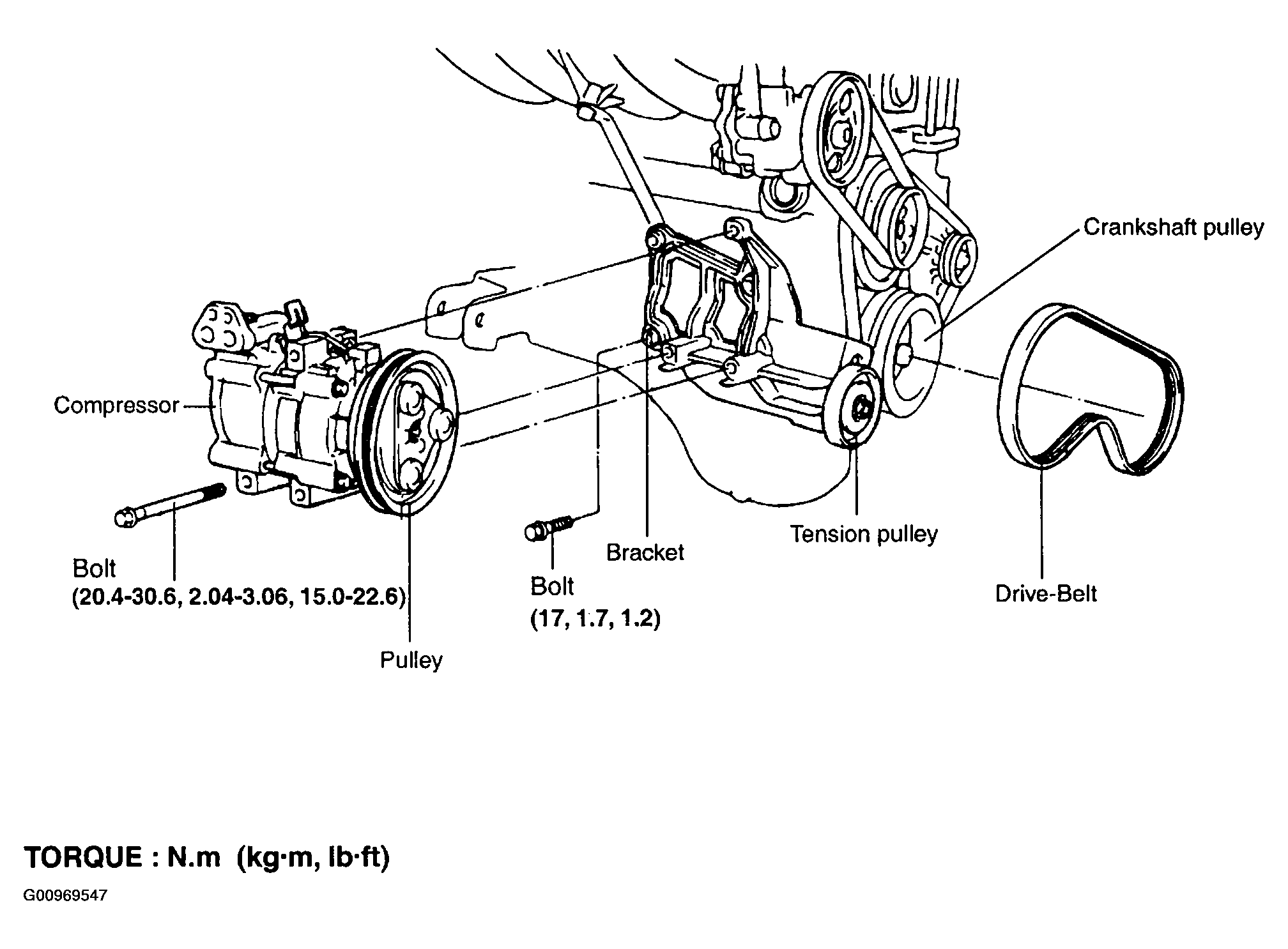

Fig 1: Compressor Components (1 Of 2)

G00969547

Courtesy of HYUNDAI MOTOR CO.

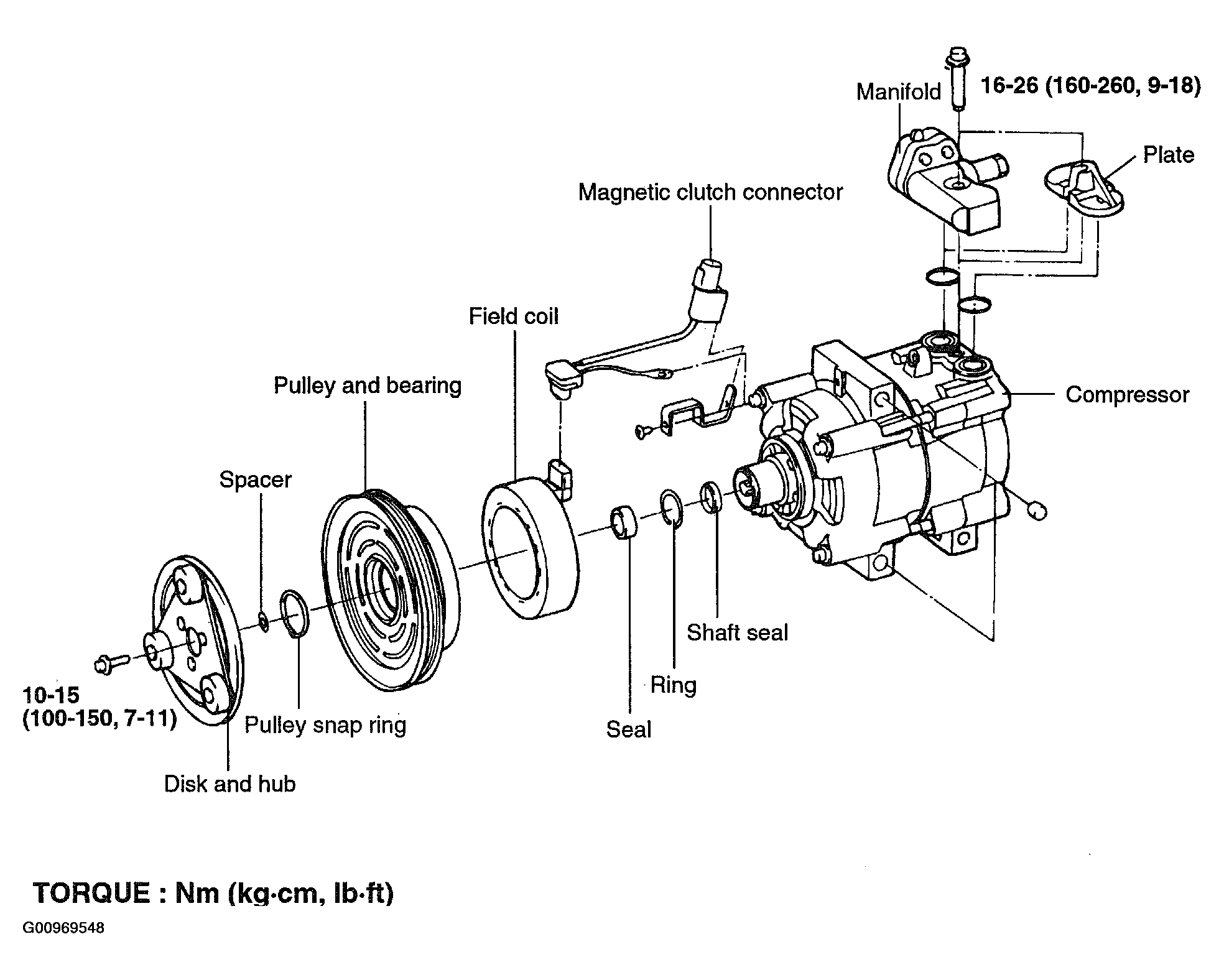

Fig 2: Compressor Components (2 Of 2)

G00969548

Courtesy of HYUNDAI MOTOR CO.
