Engine Mounting

  1. Remove the engine mounting insulator bolts.
  2. Remove the engine mounting bracket from the engine.

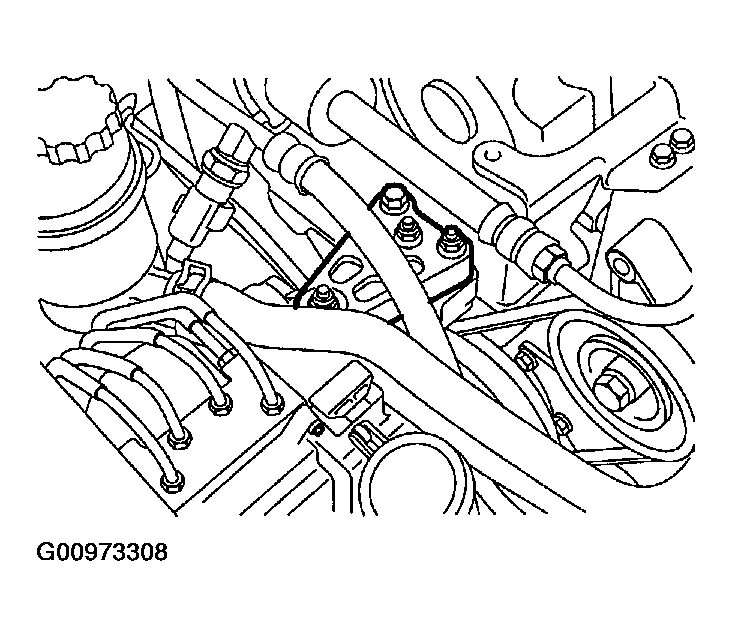

    Fig 1: Identifying Engine Mounting Bracket
    G00973308Courtesy of HYUNDAI MOTOR CO.
