Home >> Hyundai >> 2001 >> XG300 Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System Troubleshooting >> Troubleshooting (A/T) >> Diagnosis Function >> Road Test

Road Test

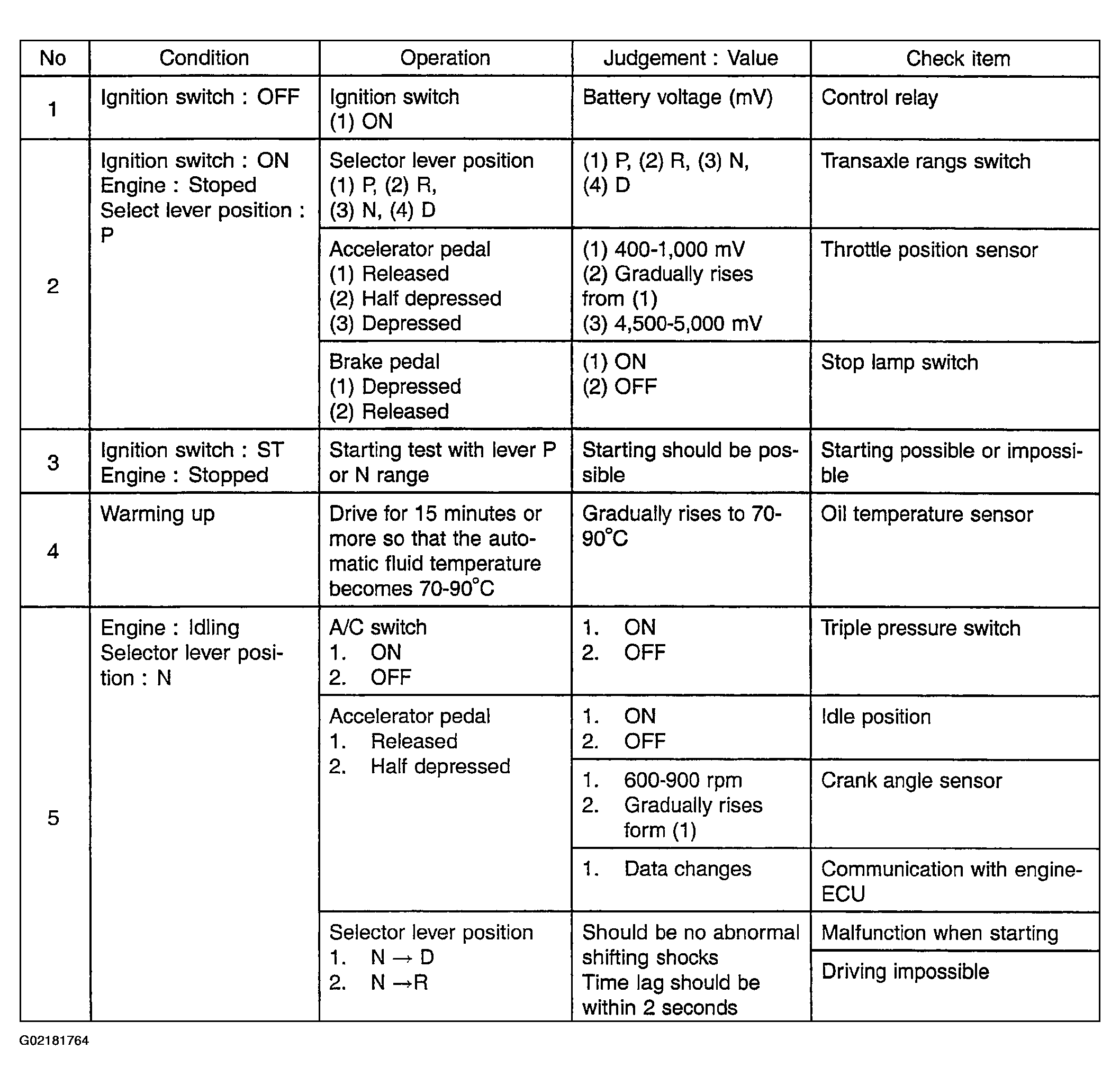

Fig 1: Road Test Condition & Probable Cause Table (1 Of 2)

G02181764

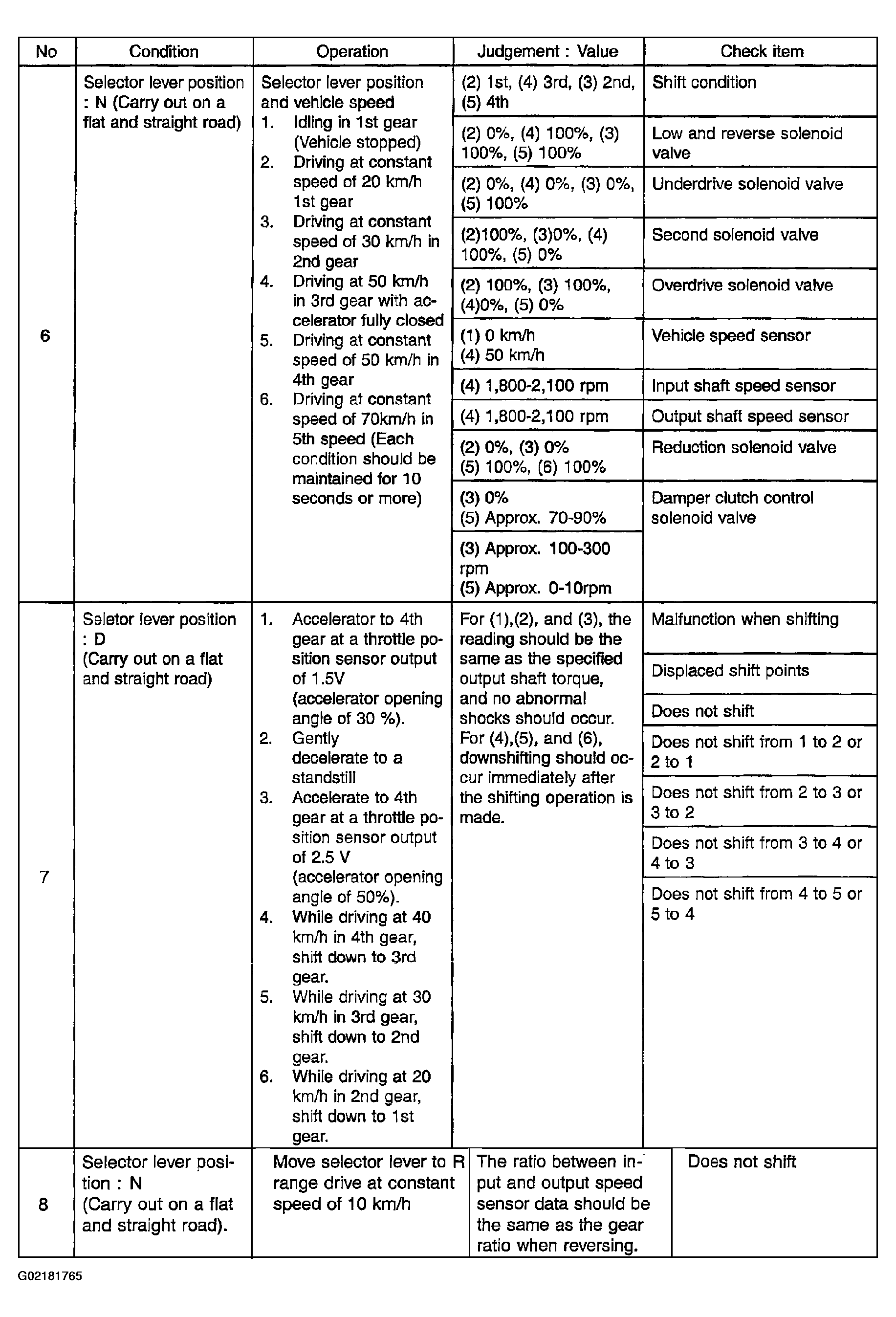

Fig 2: Road Test Condition & Probable Cause Table (2 Of 2)

G02181765
