Ignition Lock Cylinder Case Replacement

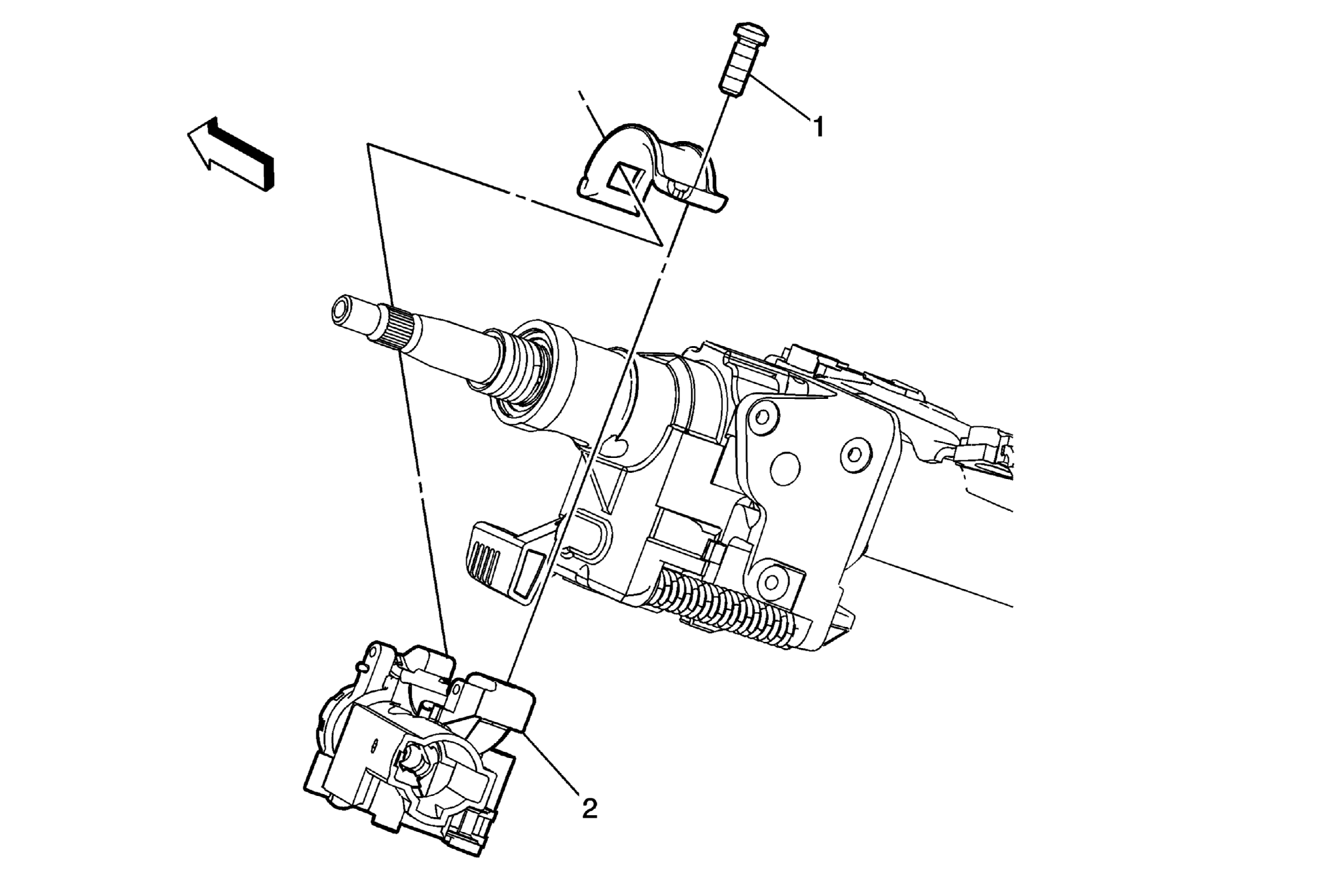

Fig 1: Ignition Lock Cylinder Case Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the turn signal switch bracket. Refer to Turn Signal Switch Bracket Replacement . Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement .
1	Ignition Lock Cylinder Case Bolt CAUTION: Refer to Fastener Caution . Procedure Use a hammer and chisel to bite into the shear bolt at a position offset from center and tap the chisel to rotate the bolt in order to remove it. Torque the ignition lock cylinder case bolt until the head shears off.
2	Ignition Lock Cylinder Case Procedure: Disconnect any electrical connectors as needed.

Callout

Component Name

Preliminary Procedures

Remove the turn signal switch bracket. Refer to Turn Signal Switch Bracket Replacement .
Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement .

Ignition Lock Cylinder Case Bolt

CAUTION: Refer to Fastener Caution .

Procedure

Use a hammer and chisel to bite into the shear bolt at a position offset from center and tap the chisel to rotate the bolt in order to remove it.
Torque the ignition lock cylinder case bolt until the head shears off.

Ignition Lock Cylinder Case
Procedure:
Disconnect any electrical connectors as needed.
