Battery Negative Cable Disconnection and Connection

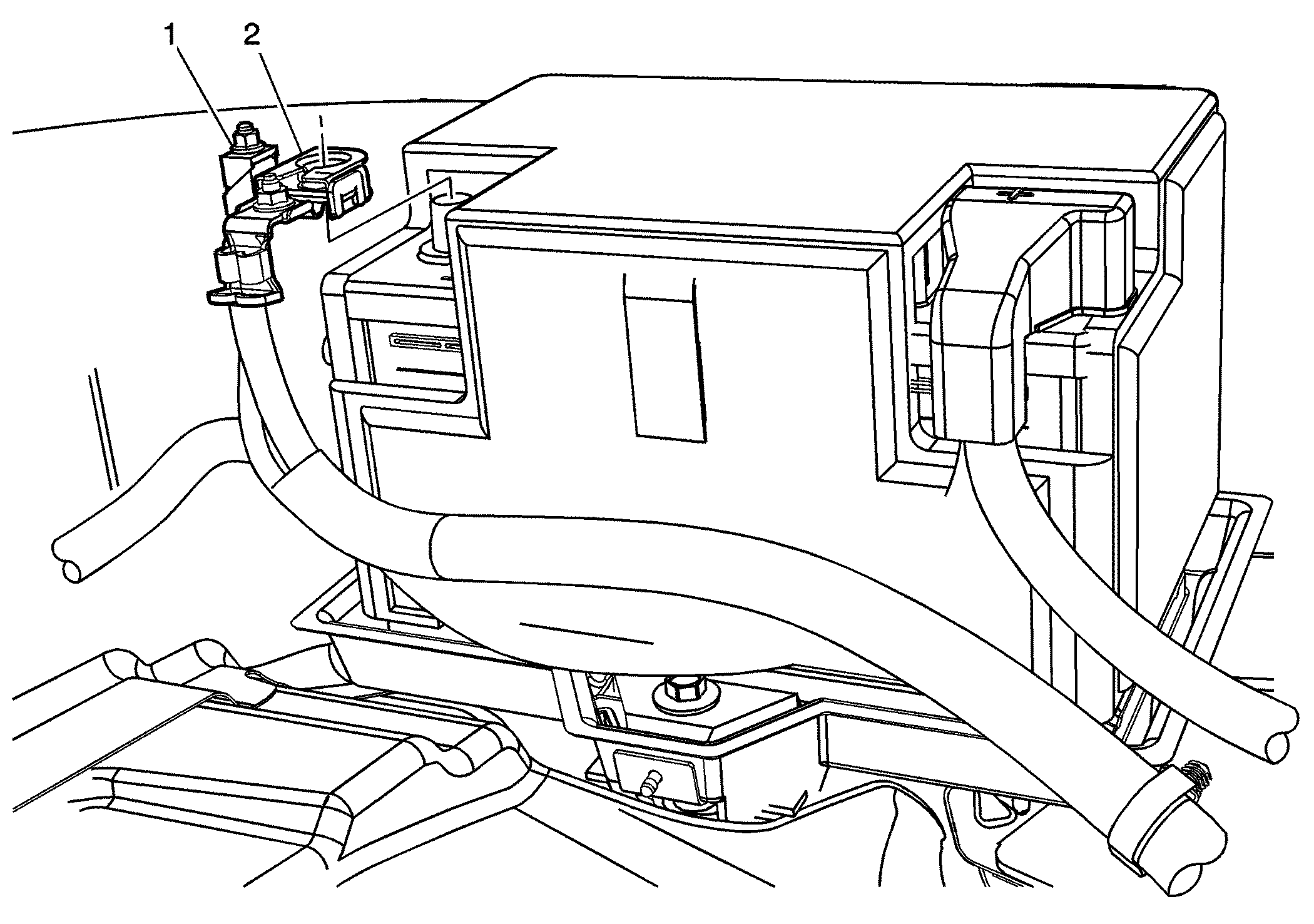

Fig 1: Identifying Battery Negative Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Unless directed otherwise, the ignition and start switch must be in the OFF or LOCK position, and all electrical loads must be OFF before servicing any electrical component. Disconnect the negative battery cable to prevent an electrical spark should a tool or equipment come in contact with an exposed electrical terminal. Failure to follow these precautions may result in personal injury and/or damage to the vehicle or its components. Preliminary Procedure WARNING: Refer to Battery Disconnect Warning . Turn all lamps and accessories OFF. Turn the Ignition to the OFF position.
1	Negative Terminal Nut CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Negative Battery Cable

Callout

Component Name

WARNING: Unless directed otherwise, the ignition and start switch must be in the OFF or LOCK position, and all electrical loads must be OFF before servicing any electrical component. Disconnect the negative battery cable to prevent an electrical spark should a tool or equipment come in contact with an exposed electrical terminal. Failure to follow these precautions may result in personal injury and/or damage to the vehicle or its components.

Preliminary Procedure

WARNING: Refer to Battery Disconnect Warning .

Turn all lamps and accessories OFF.
Turn the Ignition to the OFF position.

Negative Terminal Nut

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Negative Battery Cable
