Door Replacement - Rear

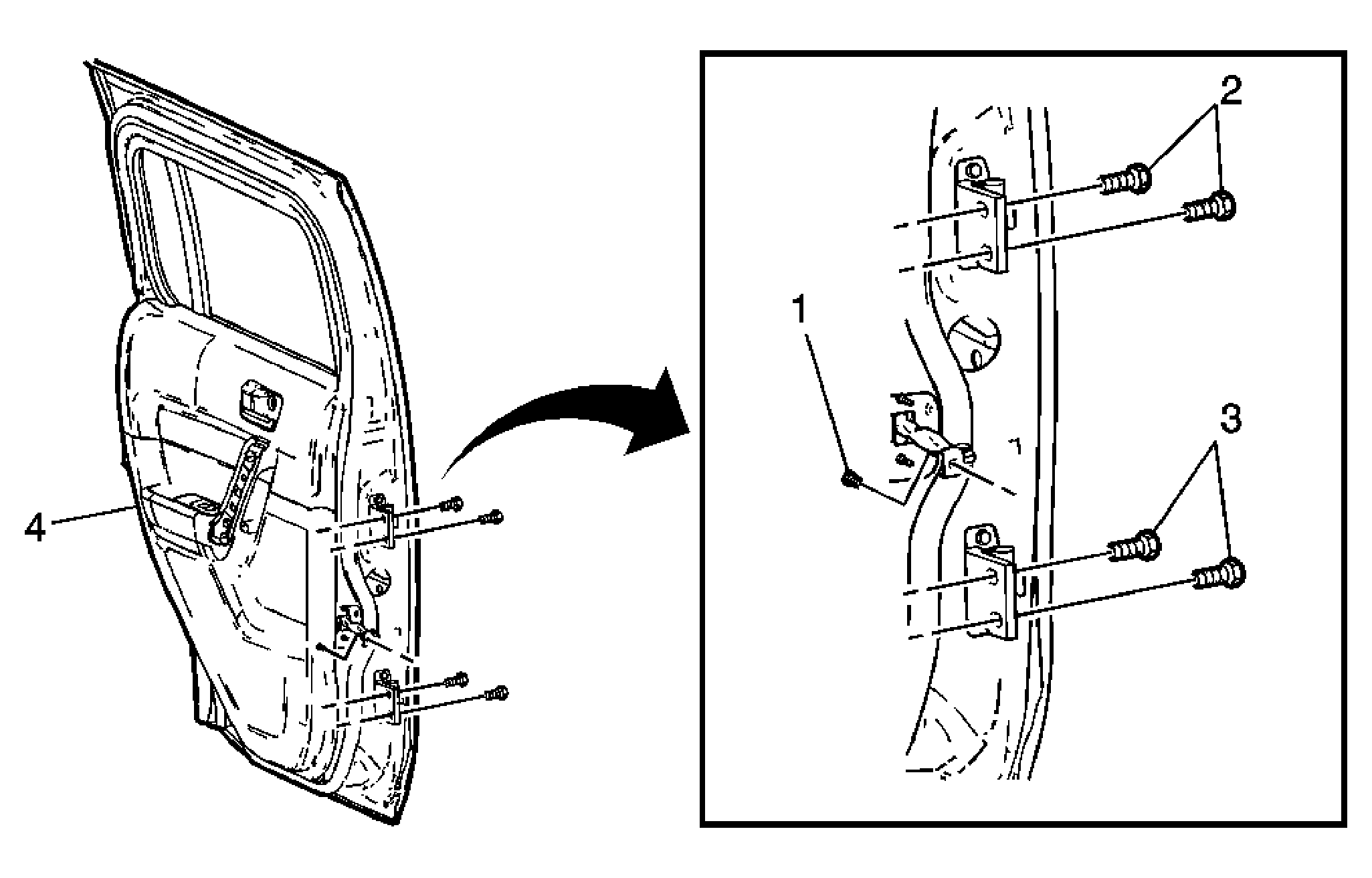

Fig 1: Door Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Bolt, Rear Side Door Check Link Tighten: 25 N.m (18 lb ft)
2	Bolt, Rear Side Door Upper Hinge (Qty: 2) Tip: Support door before removing hinge bolts. Disconnect door electrical connector. Tighten: 27 N.m (20 lb ft)
3	Bolt, Rear Side Door Lower Hinge (Qty: 2) Tighten: 27 N.m (20 lb ft)
4	Door Assembly, Rear Side
