Exploded View

NOTE: The illustration shows AWD/4WD transmission.

Transmission End Cover Exploded View
Exploded View

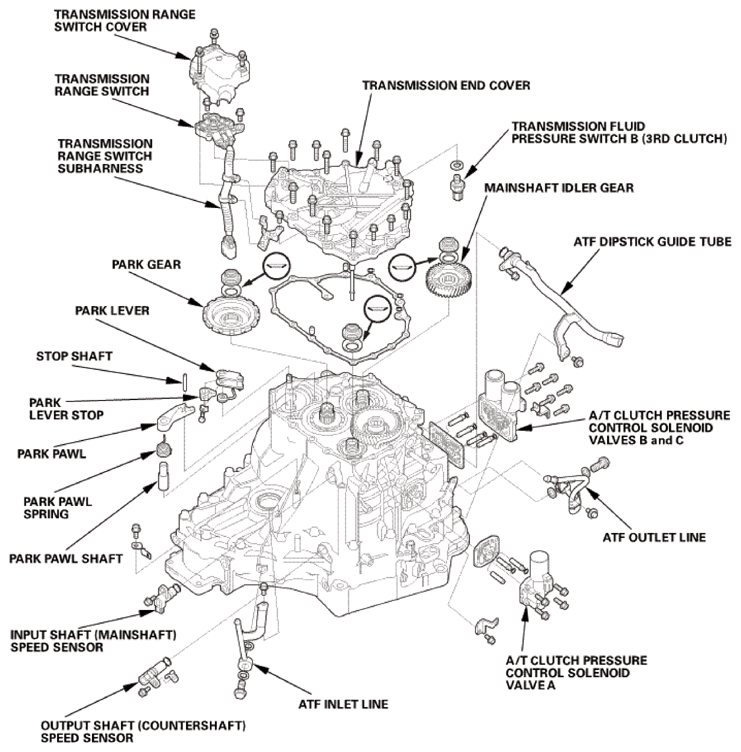

Fig 1: Exploded View Of Transmission End Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Automatic Shaft Assembly and Housing Exploded View
Exploded View

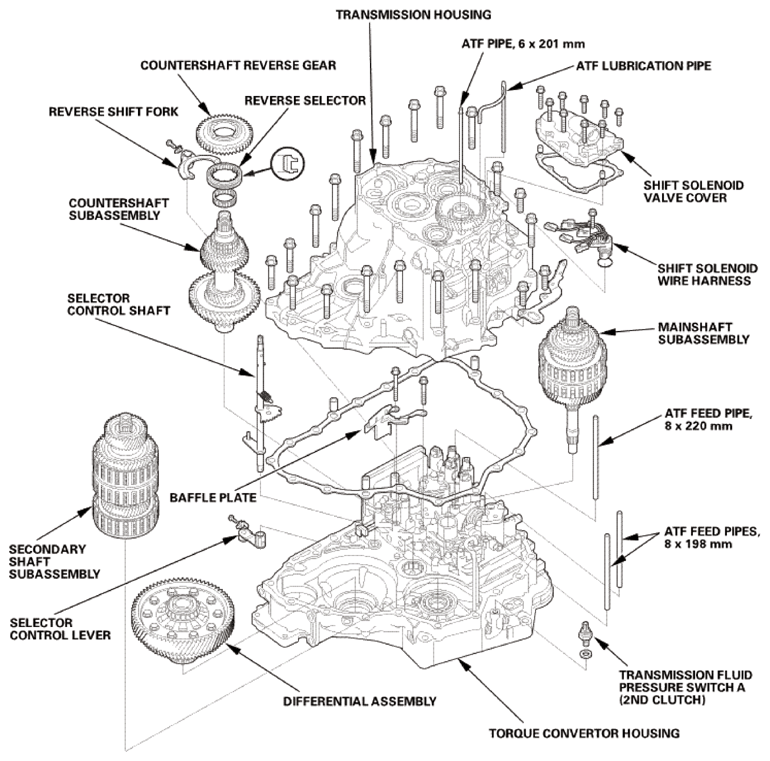

Fig 2: Exploded View Of Automatic Shaft Assembly And Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Valve Body and ATF Strainer Exploded View
Exploded View

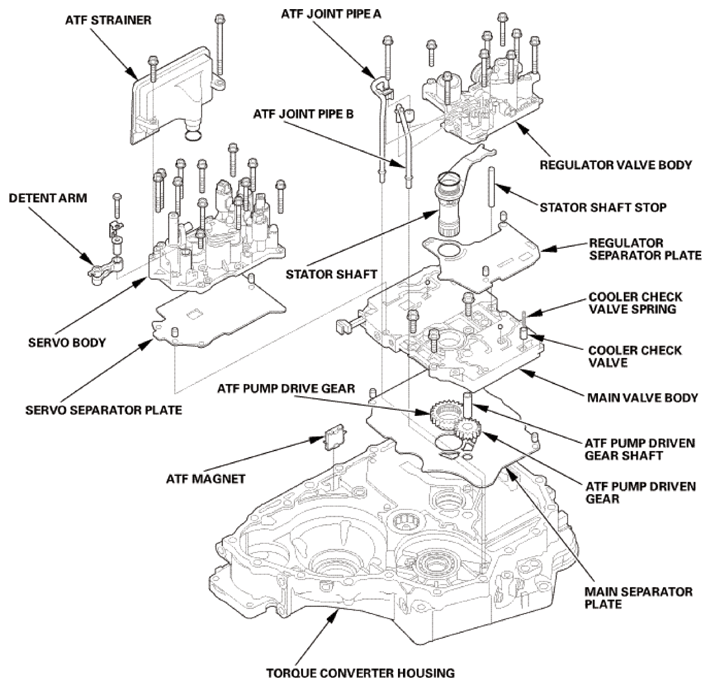

Fig 3: Exploded View Of Valve Body And ATF Strainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
