AM/FM Antenna Replacement

  1. Remove the AM/FM antenna mast (A).

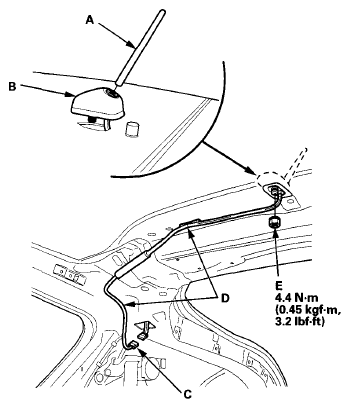

    Fig 1: AM/FM Antenna Mast And AM/FM Antenna Base With Torque Specifications
    G08095048Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the AM/FM antenna base (B).
    1. Remove the C-pillar trim (see C-PILLAR TRIM ), and disconnect the connector (C).
    2. Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ), and detach the clips (D).
    3. Remove the nut (E) from the AM/FM antenna base, and remove it.
  3. Install the AM/FM antenna in the reverse order of removal.
