Door and Rear

Driver's Door

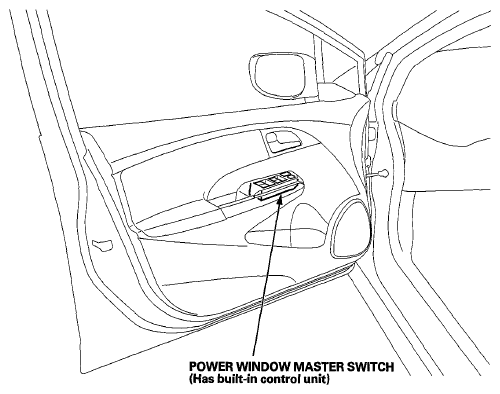

Fig 1: Relay And Control Unit Location - Driver's Door
G06431439Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

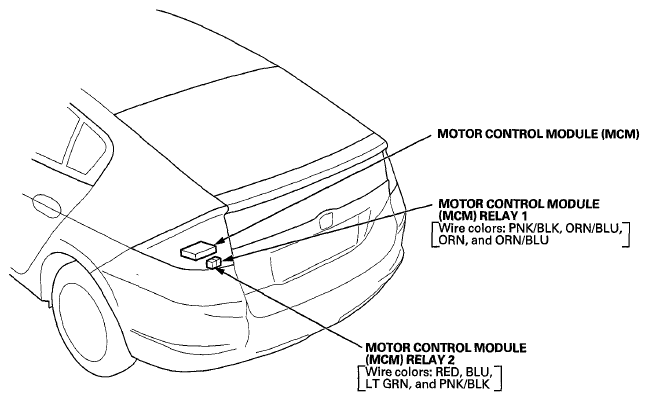

Fig 2: Relay And Control Unit Location - Rear
G06431440Courtesy of AMERICAN HONDA MOTOR CO., INC.
