Repair and Diagnosis
>>
Engine Mechanical
>>
Intake Manifold And Exhaust System
>>
Intake Manifold Removal and Installation
>>
Exploded View
Exploded View

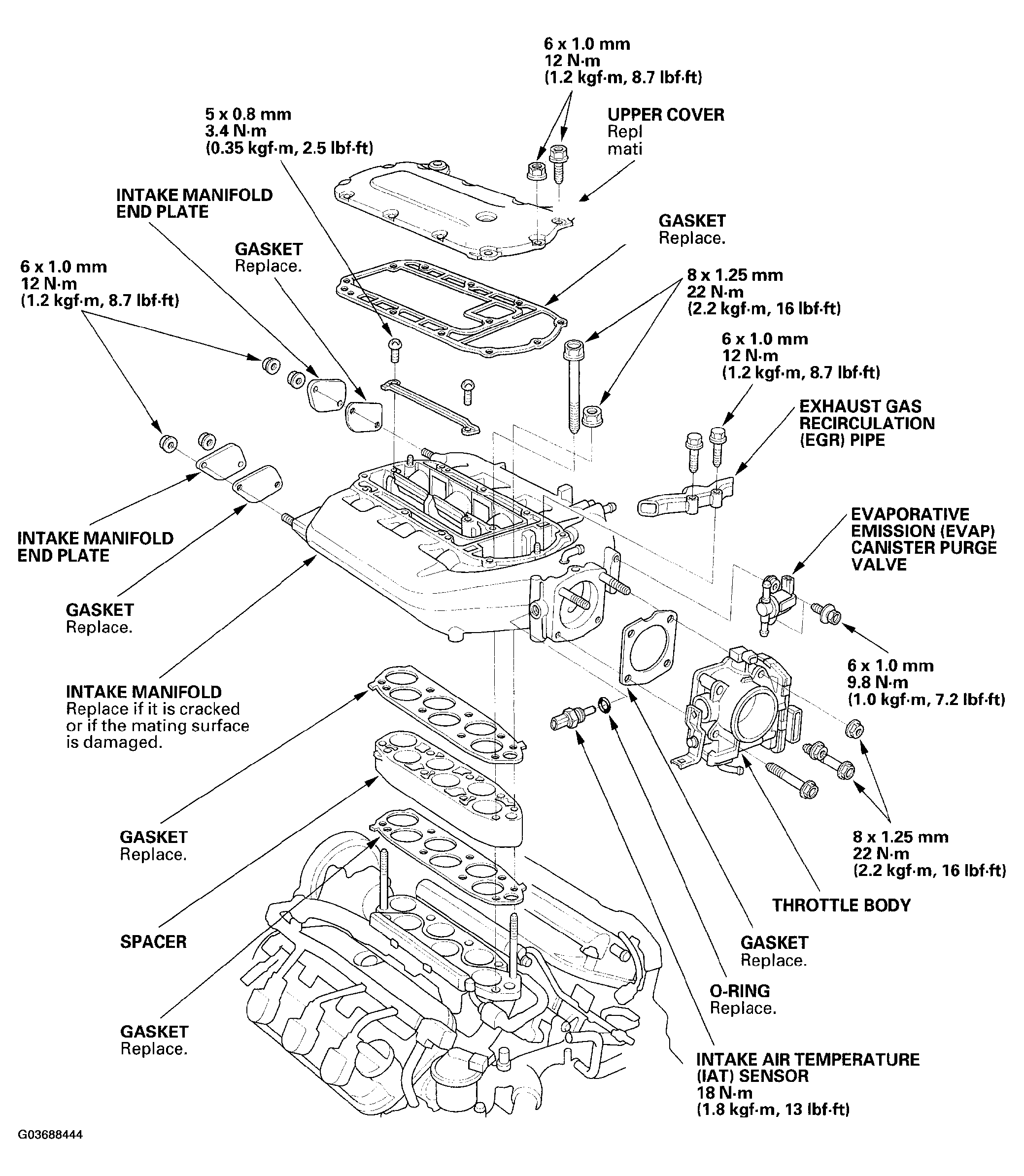

Fig 1: Exploded View Of Intake Manifold With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
