Fuel Tank Unit Removal and Installation: Removal

  1. Remove the fuel pressure (see Fuel Pressure Relieving ).
  2. Remove the fuel fill cap.
  3. Remove the rear seat-back (see REAR SEAT-BACK REMOVAL/INSTALLATION )
  4. Remove the access panel (A) from the floor, then disconnect the fuel tank unit 5P connector (B).

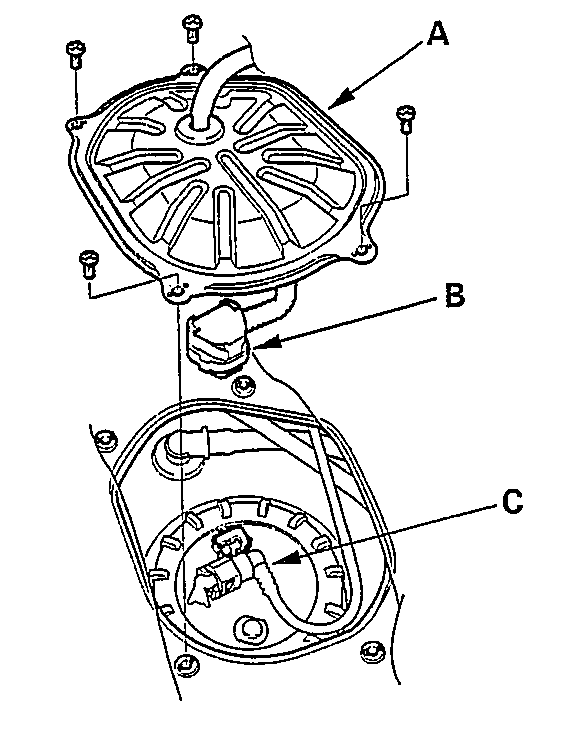

    5. Fig 1: Removing The Access Panel From The Floor, And Disconnecting The Fuel Tank Unit 5P Connector
    G00461572Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the quick-connect fitting (C) from the fuel tank unit
  6. Using the special tool, loosen the fuel tank unit locknut (A).

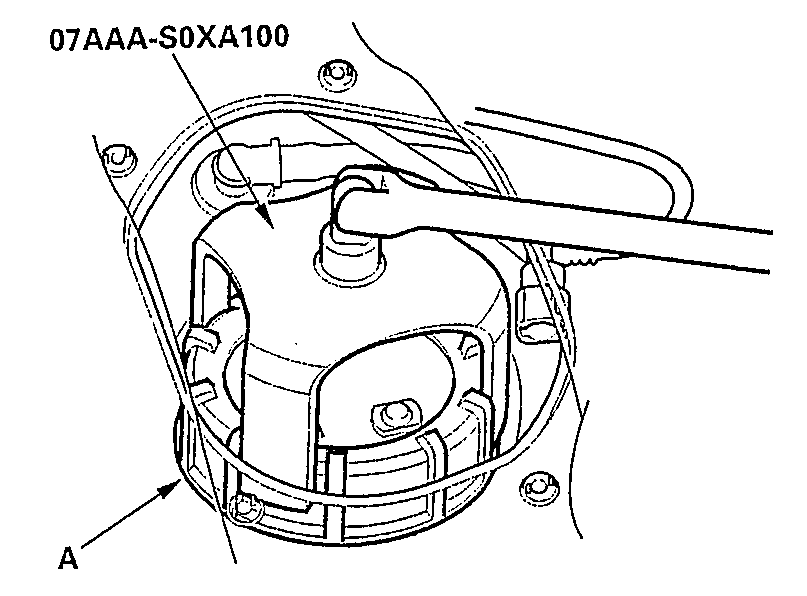

    7. Fig 2: Loosening The Fuel Tank Unit Locknut
    G00461573Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the locknut (A), locknut plate (B), and the fuel tank unit (C).

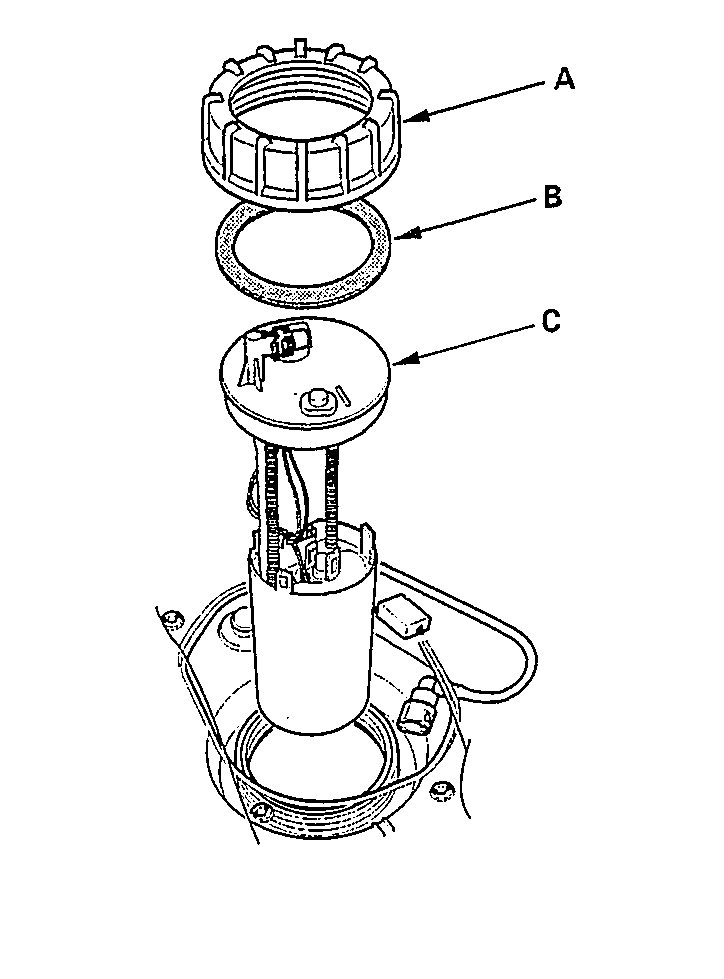

    8. Fig 3: Removing The Locknut, Locknut Plate, And The Fuel Tank Unit
    G00461574Courtesy of AMERICAN HONDA MOTOR CO., INC.
