S2000 (Front)

Compare camber settings with vehicle manufacturer recommendations. See WHEEL ALIGNMENT SPECIFICATIONS  . If camber is incorrect, check for bent or damaged suspension components. Replace faulty components. Recheck camber. If camber is still incorrect, hold adjusting bolt on front lower arm and loosen self-locking nut. Turn adjusting bolt until camber is correct. See Fig 1 . After adjusting, tighten self-locking nut while holding adjusting bolt. See TORQUE SPECIFICATIONS  .

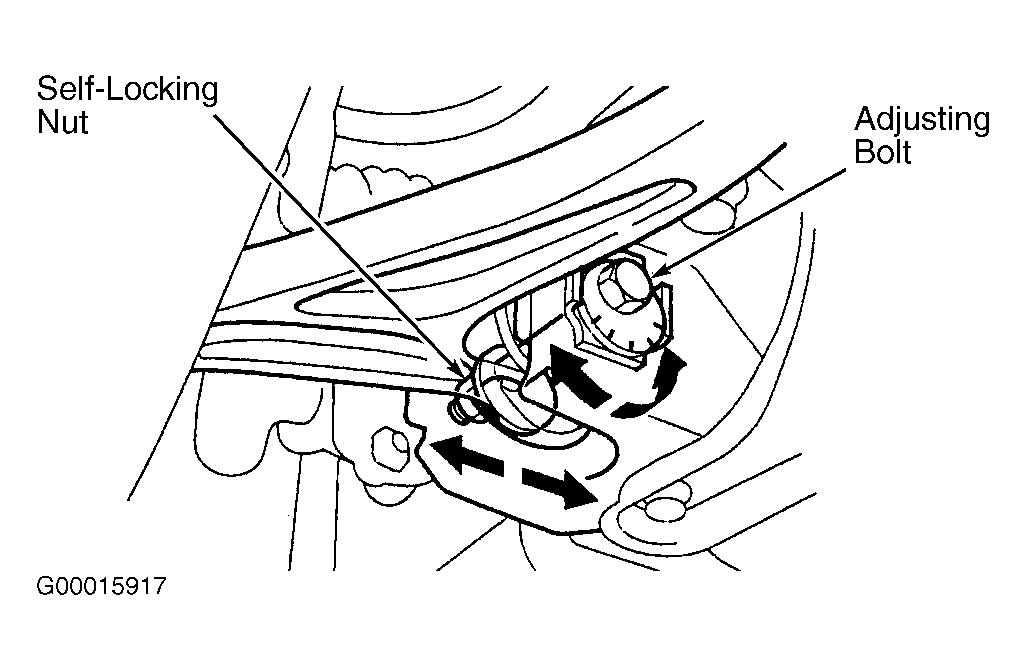

Fig 1: Adjusting Front Camber (S2000)
G00015917Courtesy of AMERICAN HONDA MOTOR CO., INC.
