Repair Procedures: Removal

CAUTION: Handling wireless charging system parts by wet hands may cause electric shock.

Disconnect the negative (-) battery terminal.
Remove the floor console cover assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

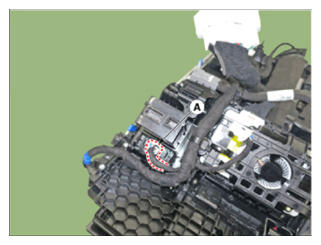

Disconnect the wireless charging lamp connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

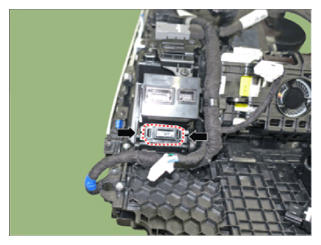

Disengage a fixed hook and then remove the wireless charging lamp.

Courtesy of HYUNDAI MOTOR AMERICA
