System Configuration Diagram

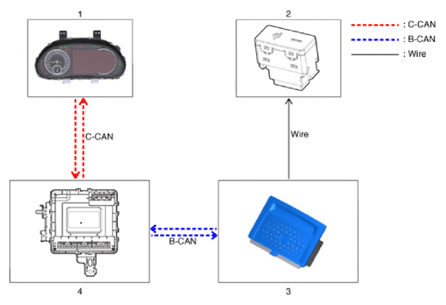

G14727307Courtesy of HYUNDAI MOTOR AMERICA
  1. Instrument cluster: Alerts about contact with mobile phone
  2. BCM unit: Determines contact with mobile phone
  3. Wireless charging lamp: Displays the charging status
  4. SMK unit: Stops charging during the activation of LF
