Gasoline 5.0

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the under cover.

    (Refer to Engine mechanical system - "ENGINE ROOM UNDER COVER ")

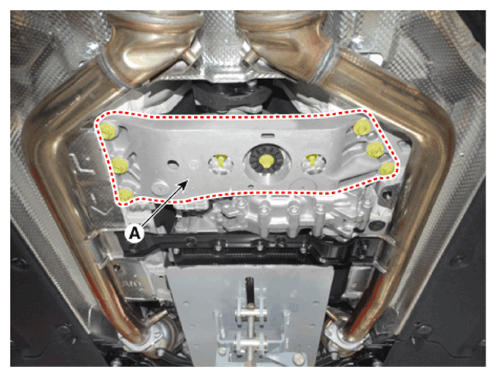

  3. Remove the cross member (A) after supporting the transmission oil pan by the transmission jack.

    Tightening torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    G14209537Courtesy of HYUNDAI MOTOR AMERICA

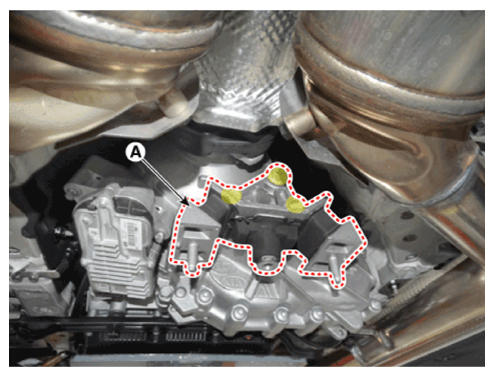

  4. Remove the mounting bracket (A).
    G14209538Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the front propeller shaft.

    (Refer to Drive shaft and axle -Front Propeller Shaft )

  6. Remove the rear propeller shaft.

    (Refer to Drive shaft and axle - "PROPELLER SHAFT ASSEMBLY ")

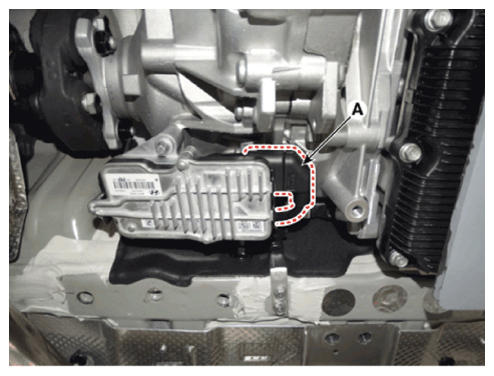

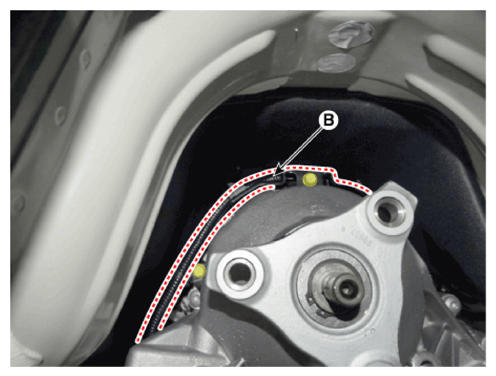

  7. Remove the wiring (B) fixed on the transfer case after disassembling the transfer case (AWD) ECU connector (A).
    G14209539Courtesy of HYUNDAI MOTOR AMERICA
    G14209540Courtesy of HYUNDAI MOTOR AMERICA

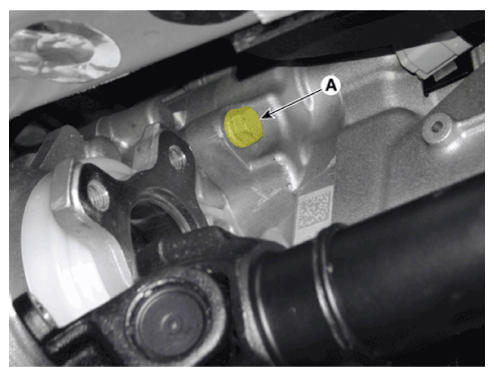

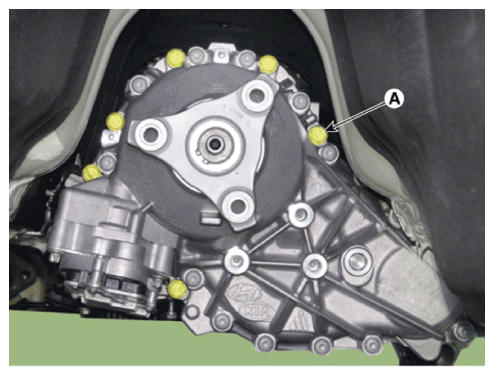

  8. Unfasten the mounting bolt (A) and remove the transfer case (AWD).

    Tightening torque:

  9. 29.4 - 41.2 N.m (3.0 - 4.2 kgf.m, 21.7 - 30.4 lb.ft)
G14209541Courtesy of HYUNDAI MOTOR AMERICA
G14209542Courtesy of HYUNDAI MOTOR AMERICA
