Gasoline 3.3
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the under cover.
(Refer to Engine mechanical system - "ENGINE ROOM UNDER COVER ")
- Remove the front propeller shaft.
(Refer to Drive shaft and axle - "Front Propeller Shaft ")
- Remove the rear propeller shaft.
(Refer to Drive shaft and axle - "PROPELLER SHAFT ASSEMBLY ")

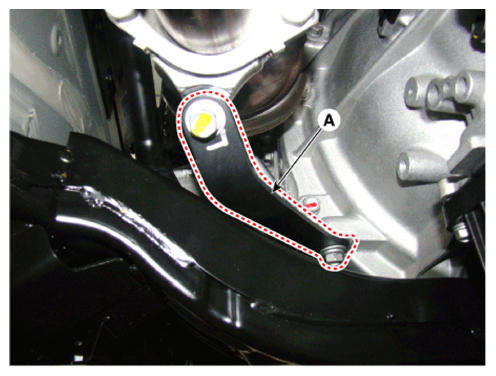

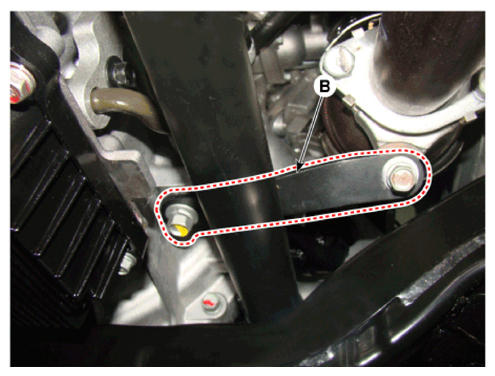

- Remove the LH side stay (A) and RH side stay (B).

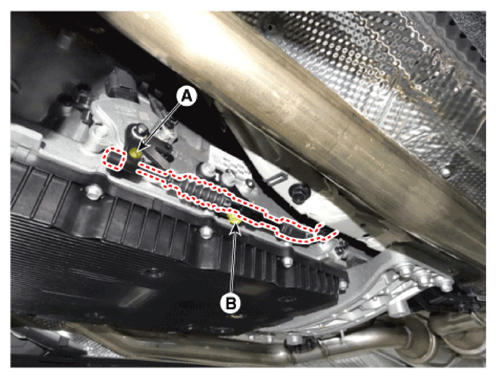

- Remove the fastener (A) and mounting bolt (B) of the parking release cable.
Tightening torque:
12.7 - 15.7 N.m (1.3 - 1.6 kgf.m, 9.4 - 11.6 lb-ft)

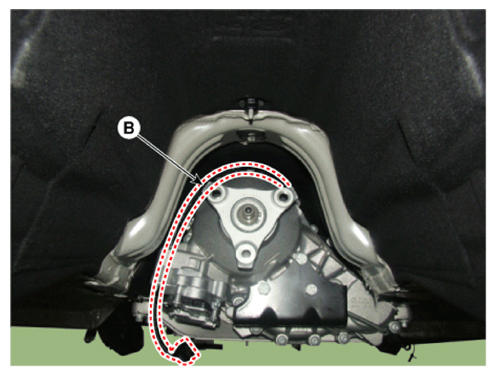

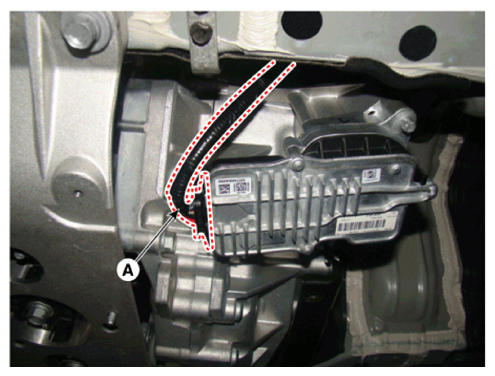

- Remove the wiring (B) fixed on the transfer case after disassembling the transfer case (AWD) ECU connector (A).

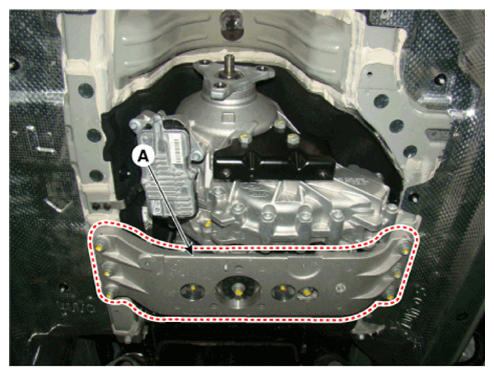

- Remove the cross member (A) after supporting the transmission oil pan by the transmission jack.
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

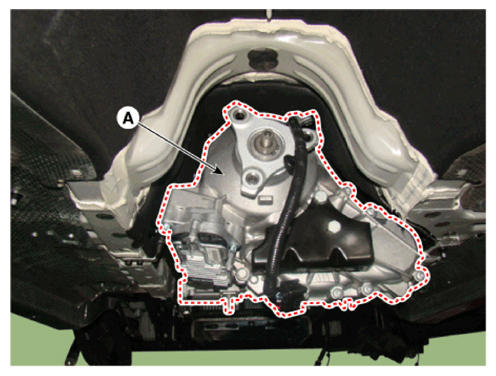

- Unfasten the mounting bolt and remove the transfer case (AWD) (A).
Tightening torque:
29.4 - 41.2 N.m (3.0 - 4.2 kgf.m, 21.7 - 30.4 lb.ft)
