Repair Procedures: Inspection

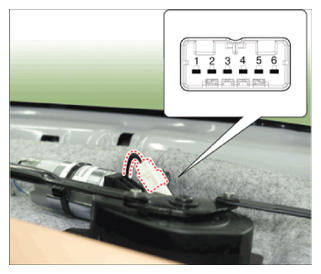

Connect the battery voltage and check the rear curtain motor rotation. If the motor does not operate properly, substitute with a known-good rear curtain motor and check for proper operation.
 Courtesy of HYUNDAI MOTOR AMERICA
|
| Position |
Terminal |
1 |
6 |
| Blind Up |
Counterclockwise |
(+) |
(-) |
| Blind Down |
Clockwise |
(-) |
(+) |
