Installation Procedure

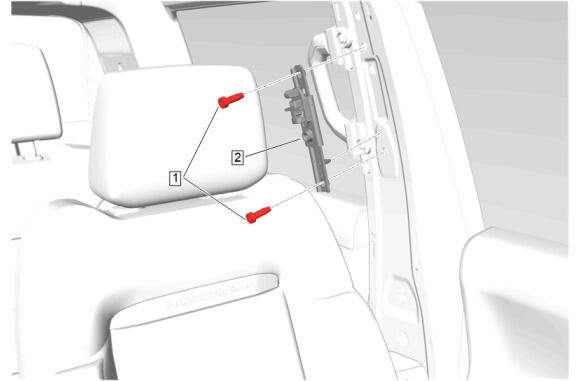

Front Seat Belt Guide Adjuster (2) - Install
- If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Front Seat Belt Adjust Bolt (1) - Install and tighten [2x] - Fastener Specifications
Return the front seat belt and seat belt guide (2) to the original position.

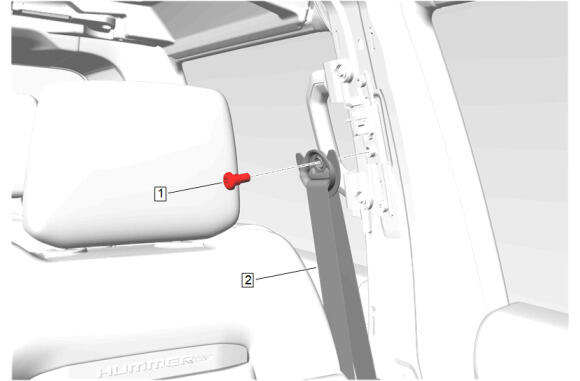

- Front Seat Belt Retractor D Ring Bolt (1) - Install and tighten - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.
Center Pillar Upper Trim Panel (1) - Install

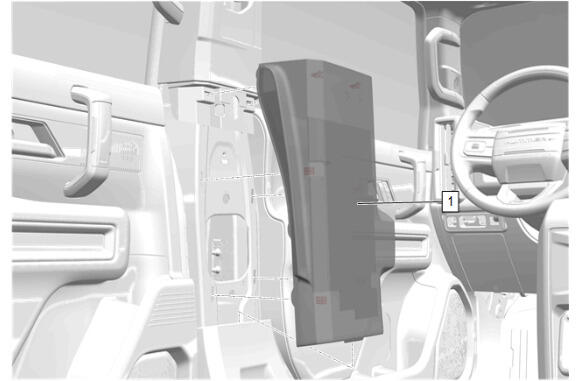

Center Pillar Center Trim Panel (1) - Install
- NOTE:
Some components not shown for graphic clarity.

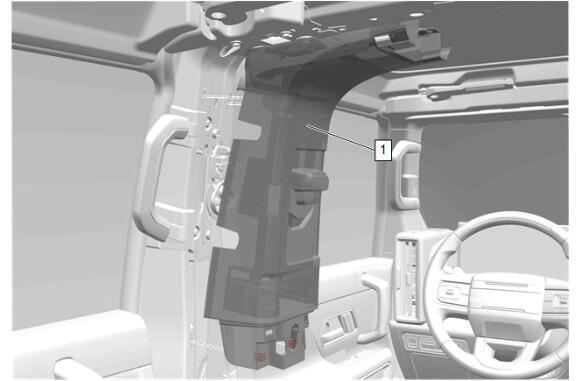

Align the bottom of the center pillar lower trim panel with the side door sill garnish molding.
- Center Pillar Lower Trim Panel (1) - Install
- Return the seat to its original position.
CAUTION:
Refer to Fastener Caution .
