Left Passenger Components (Extended Cab)

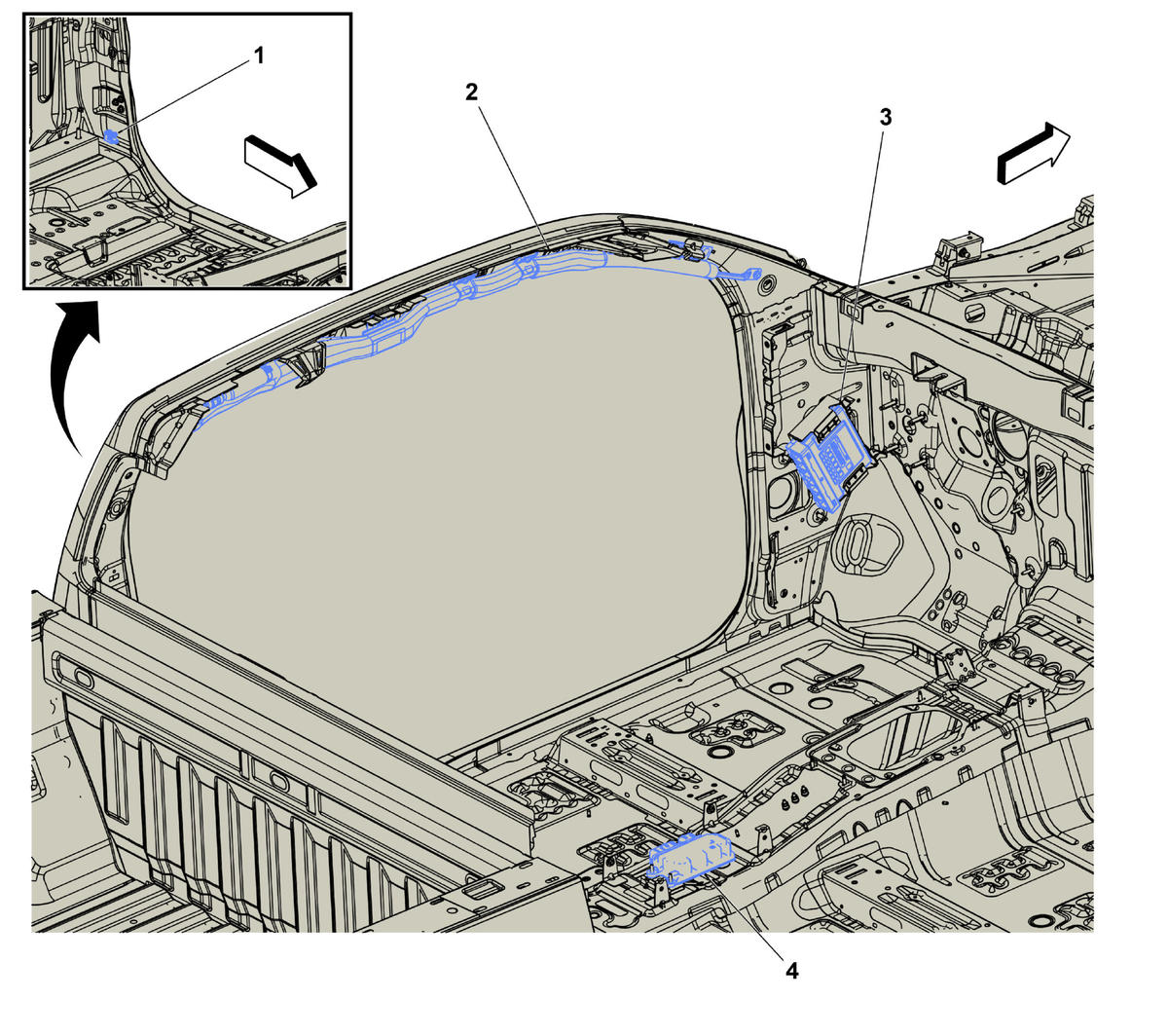

GM3902392Courtesy of GENERAL MOTORS COMPANY
Left Passenger Components (Extended Cab)

Component Name Callout
B63LR Side Impact Sensor - Left Rear B63LR Side Impact Sensor - Left Rear 1
F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left 2
K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 3
K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 , or K36 Inflatable Restraint Sensing and Diagnostic Module X2 4
