B65 Manifold Absolute Pressure and Intake Air Temperature Sensor
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

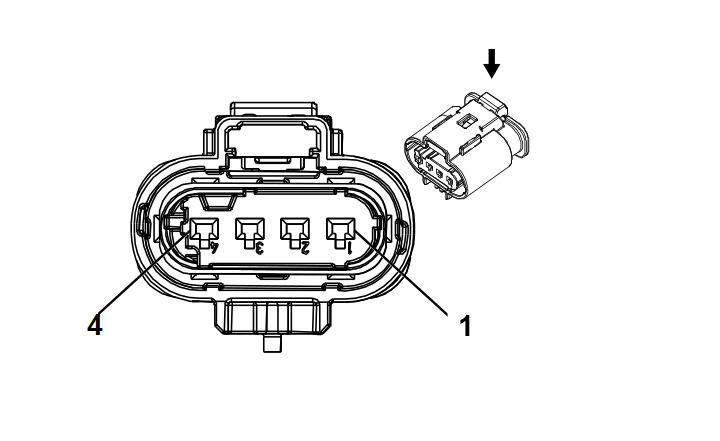

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 13815341
- Service Connector: 13587299
- Description: 4-Way F 1.2 Multilock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH / BU |
7329 |
Pre-Throttle Air Temperature Signal |
I |
- |
| 2 |
0.5 |
GY / RD |
2704 |
Manifold Absolute Pressure Sensor 5V Reference |
I |
- |
| 3 |
0.5 |
BK / GN |
469 |
Manifold Absolute Pressure Sensor Low Reference |
I |
- |
| 4 |
0.5 |
GN / WH |
432 |
Manifold Absolute Pressure Sensor Signal |
I |
- |
