Installation Procedure

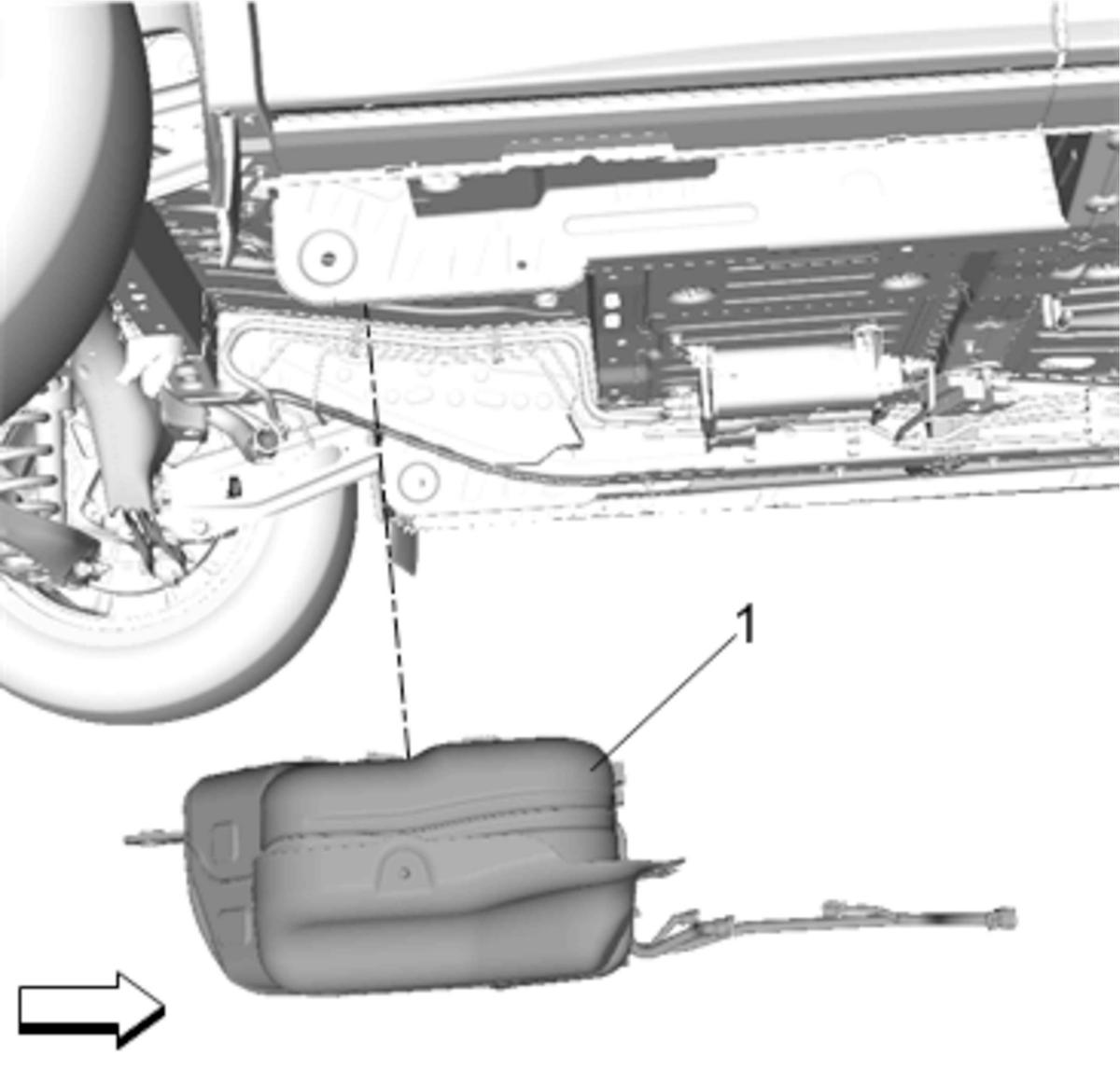

    Fig 1: Fuel Tank
    GM4596034Courtesy of GENERAL MOTORS COMPANY
  1. Place a suitable adjustable jack under the fuel tank.
  2. Install Fuel Tank (1).

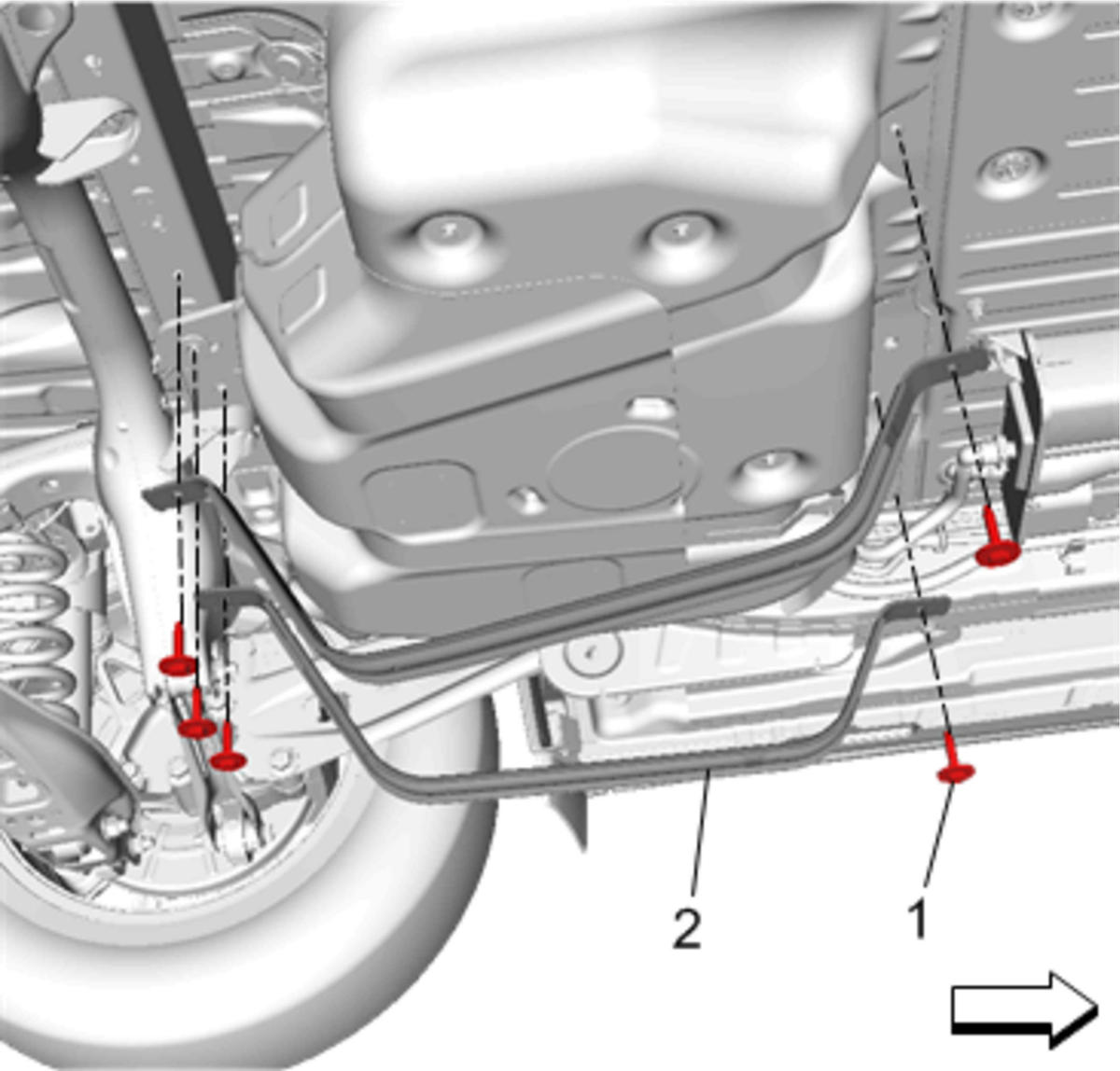

    3. Fig 2: Fuel Tank Strap And Bolt
    GM4596032Courtesy of GENERAL MOTORS COMPANY
  3. Install Fuel Tank Strap (2)
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install Fuel Tank Strap Bolt (1) and tighten [5x] 22 N.m (16 lb ft)

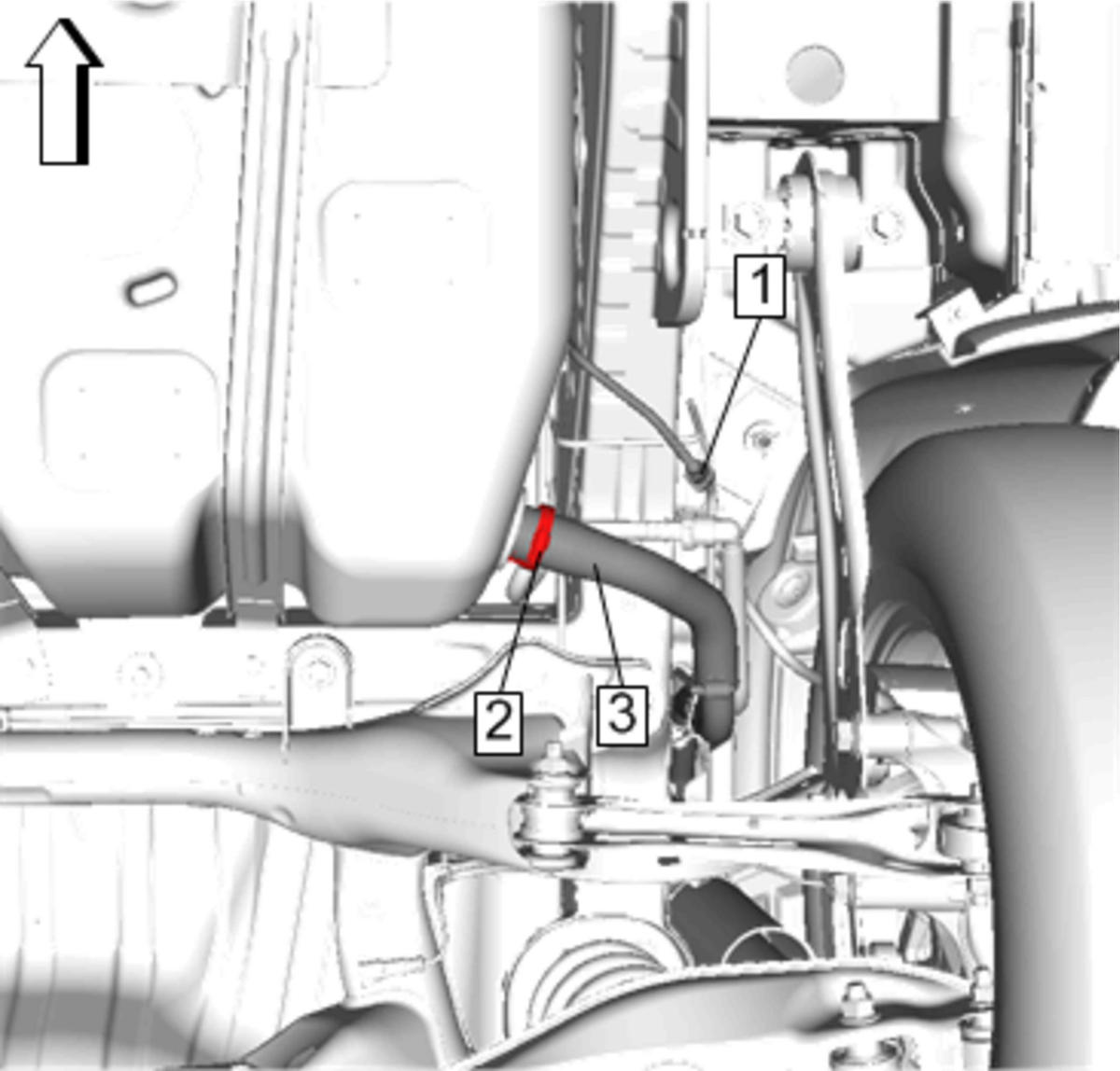

    5. Fig 3: Fuel Tank Vent Hose, Fuel Tank Filler Hose And Clamp
    GM4596028Courtesy of GENERAL MOTORS COMPANY
  5. Install Fuel Tank Filler Hose (3)
  6. Install Fuel Tank Filler Hose Clamp (2) and tighten 4 N.m (35 lb in)
  7. Connect Fuel Tank Vent Hose -Plastic Collar Quick Connect Fitting Service

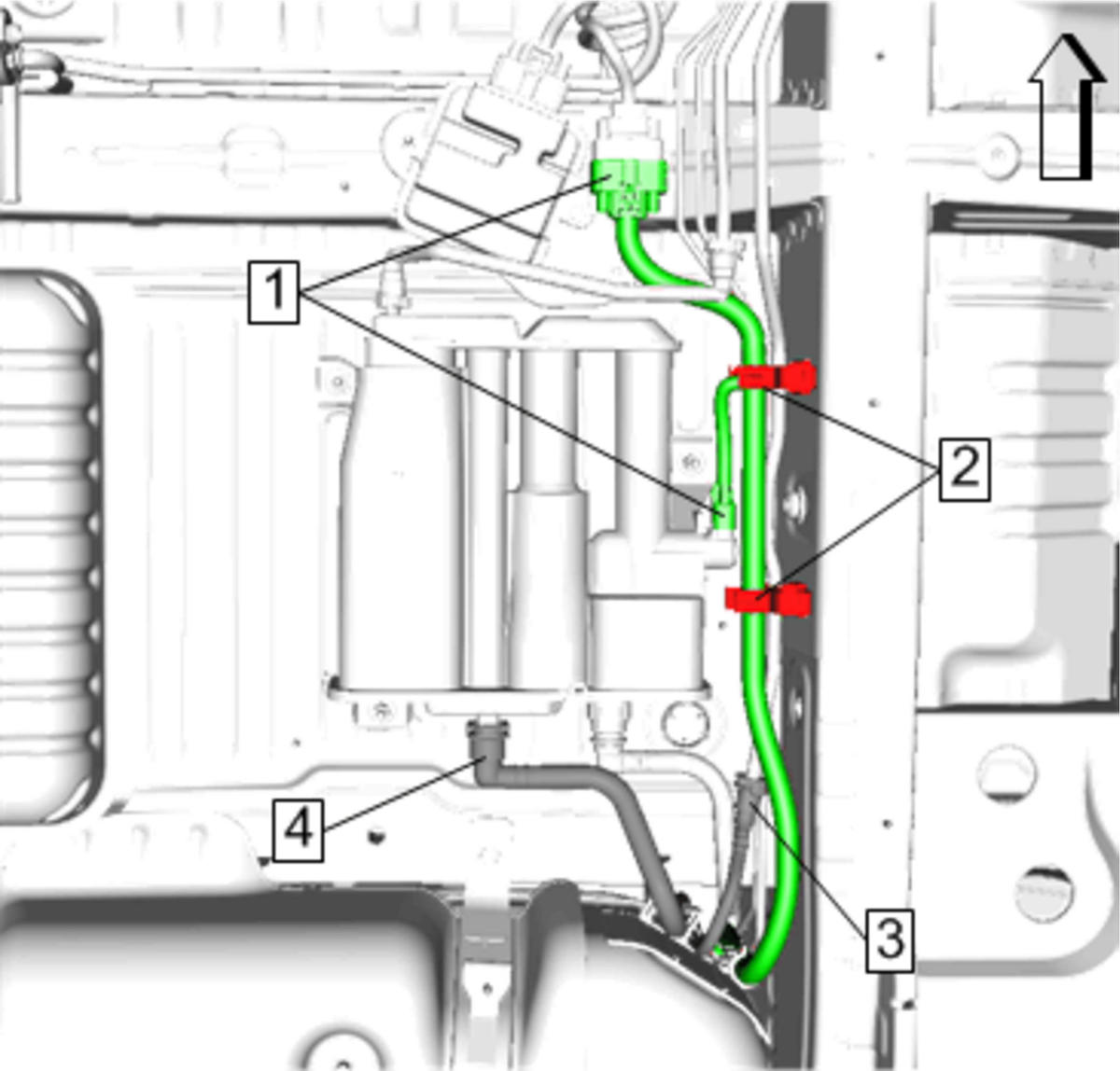

    8. Fig 4: Fuel Tank Fuel Pump Module Wiring Harness And Fuel Pump Fuel Feed Hose
    GM4596026Courtesy of GENERAL MOTORS COMPANY
  8. Connect Evaporative Emission Canister Vent Hose (4) Plastic Collar Quick Connect Fitting Service
  9. Connect Fuel Pump Fuel Feed Hose (3) - Plastic Collar Quick Connect Fitting Service
  10. Install Fuel Tank Fuel Pump Module Wiring Harness (1) @Retainer - [2x]
  11. Connect Fuel Tank Fuel Pump Module Wiring Harness (1) - [2x]
  12. Install Underbody Rear Air Deflector - Underbody Rear Air Deflector Replacement (Front Wheel Drive)
  13. Install Exhaust Muffler Assembly - Exhaust Muffler Replacement (LTG, LYX)
  14. Lower the vehicle.
  15. Refill the fuel tank.
  16. Inspect for fuel leaks.
