Subsystem References (3 of 4) Wiring Schematics

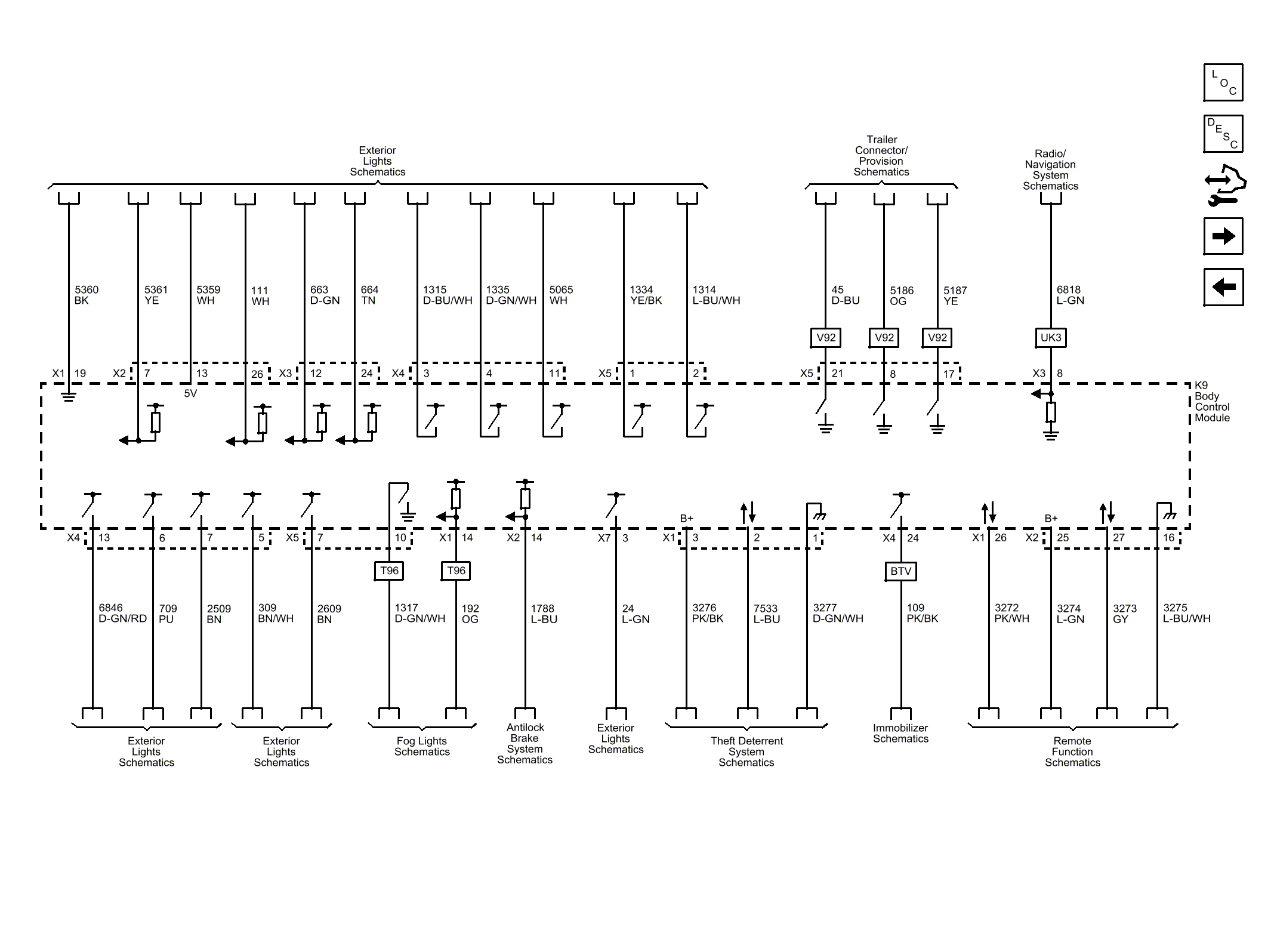

Fig 1: Subsystem References (3 of 4) Wiring Schematics

GM3423961

Courtesy of GENERAL MOTORS COMPANY
