Radio Rear Speaker Replacement (Console Cover)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

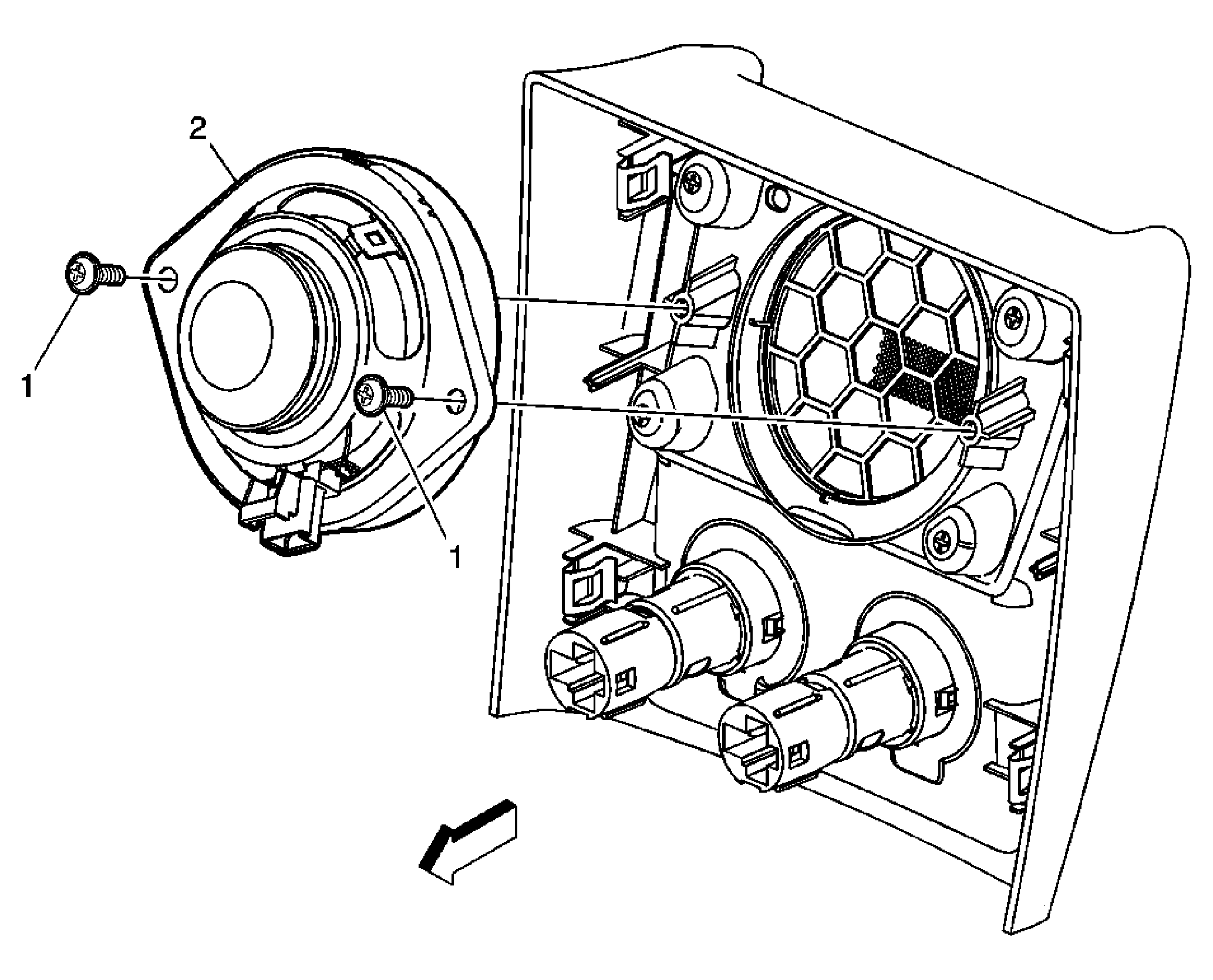

Fig 1: View Of Rear Speaker (Console Cover)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear console trim plate. Refer to Console Rear Trim Plate Replacement (Left Hand Drive) or Console Rear Trim Plate Replacement (Right Hand Drive) .
1	Radio Rear Speaker Assembly Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 3 N.m (25 lb in)
2	Radio Rear Speaker Assembly
