Transfer Case Shield: Installation

  1. Install the transfer case shield to the cross member.

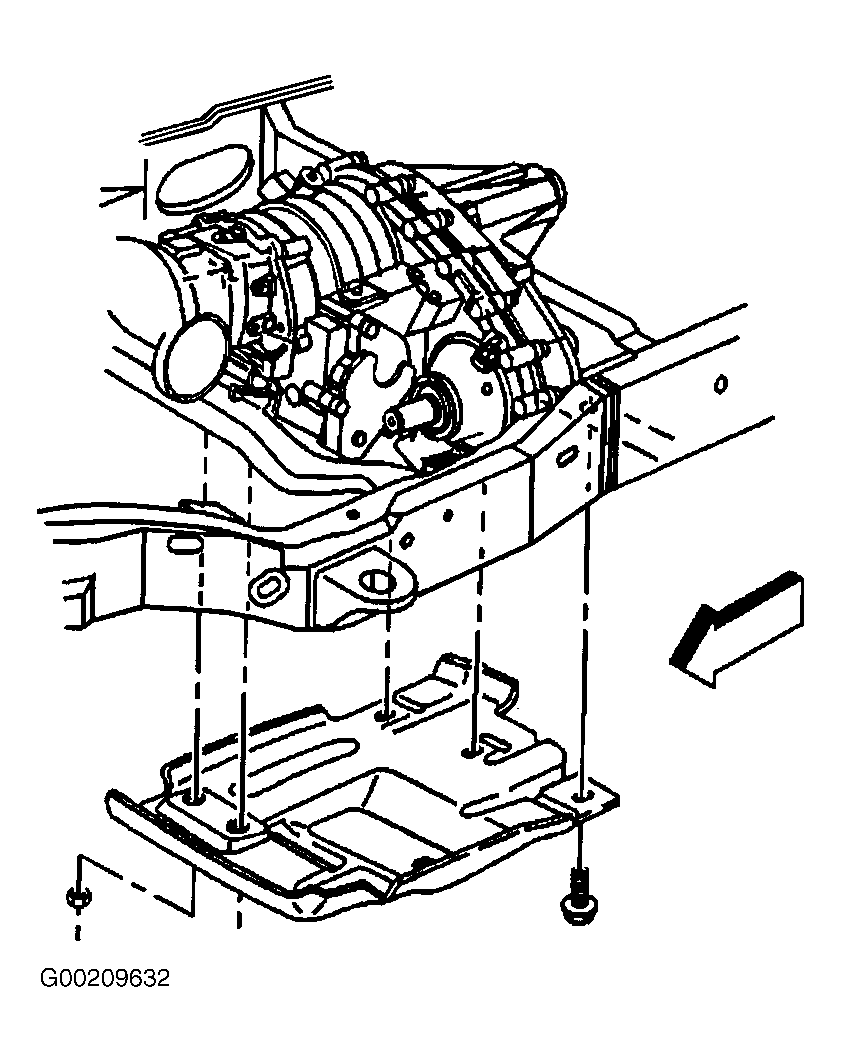

  2. Install the transfer case shield mounting bolts. See Figure. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
  3. Lower the vehicle.
