Horns Connector End Views

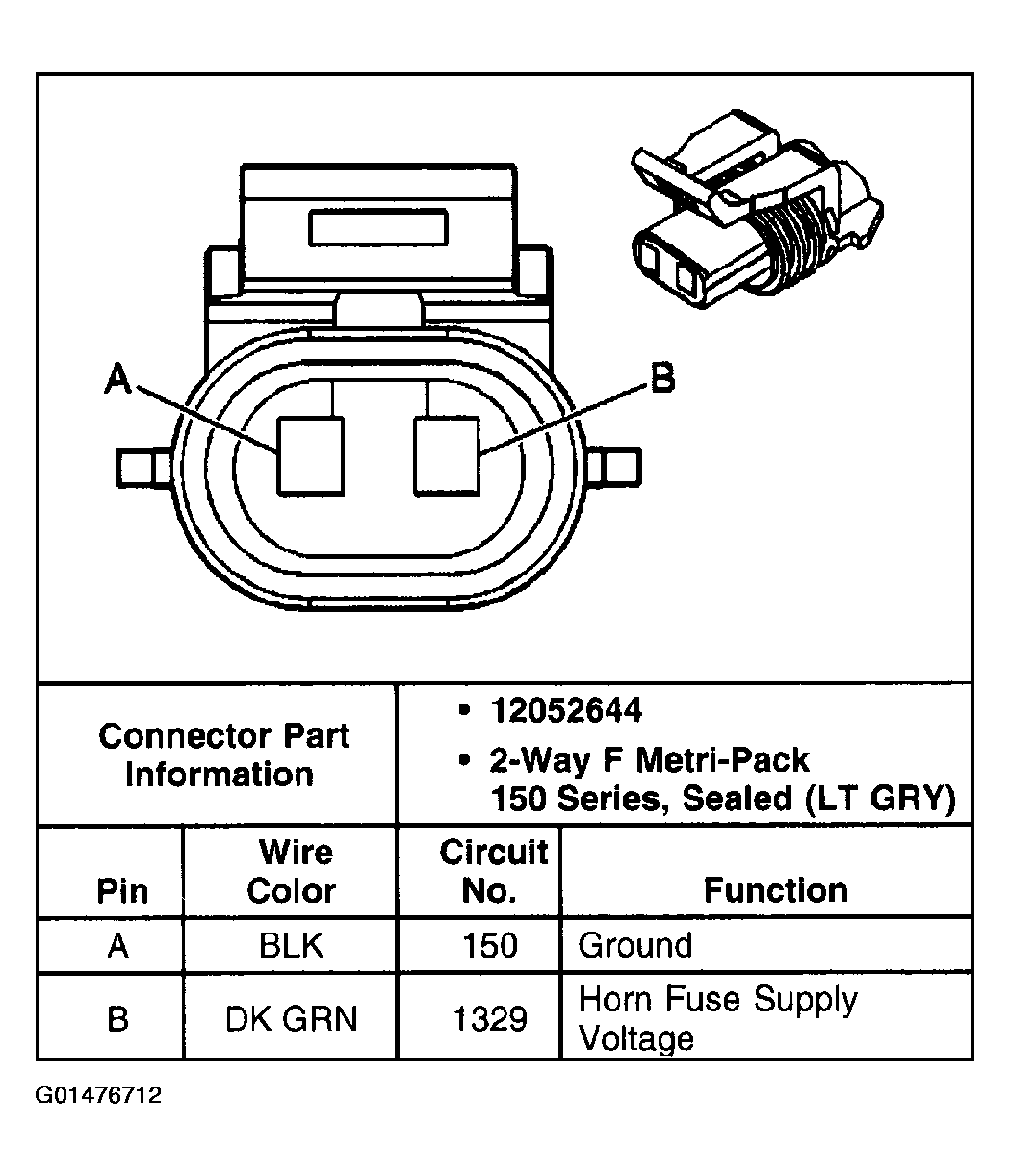

Fig 1: Horn - Left

G01476712

Courtesy of GENERAL MOTORS CORP.

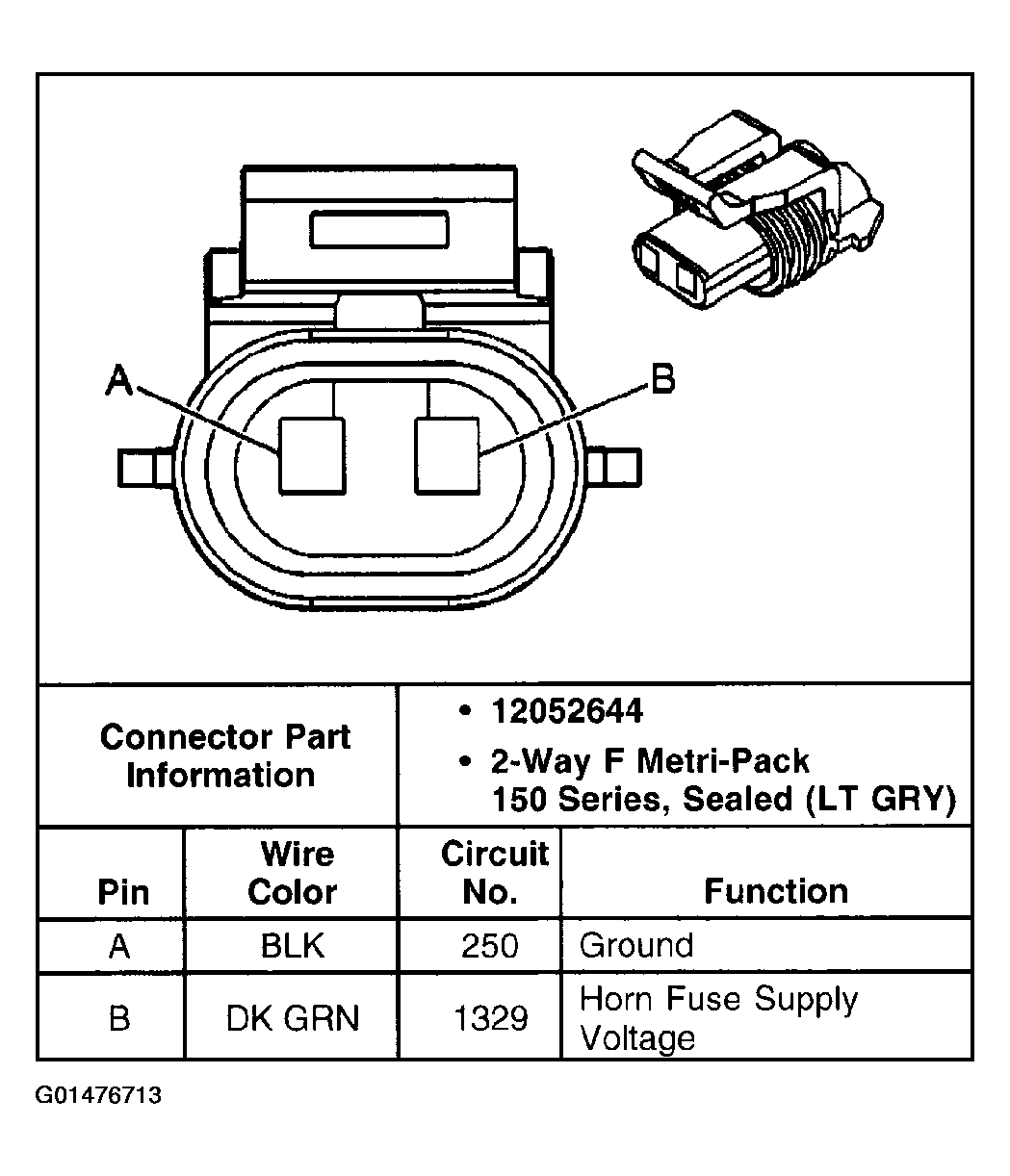

Fig 2: Horn - Right

G01476713

Courtesy of GENERAL MOTORS CORP.
