C203 (2.2L)

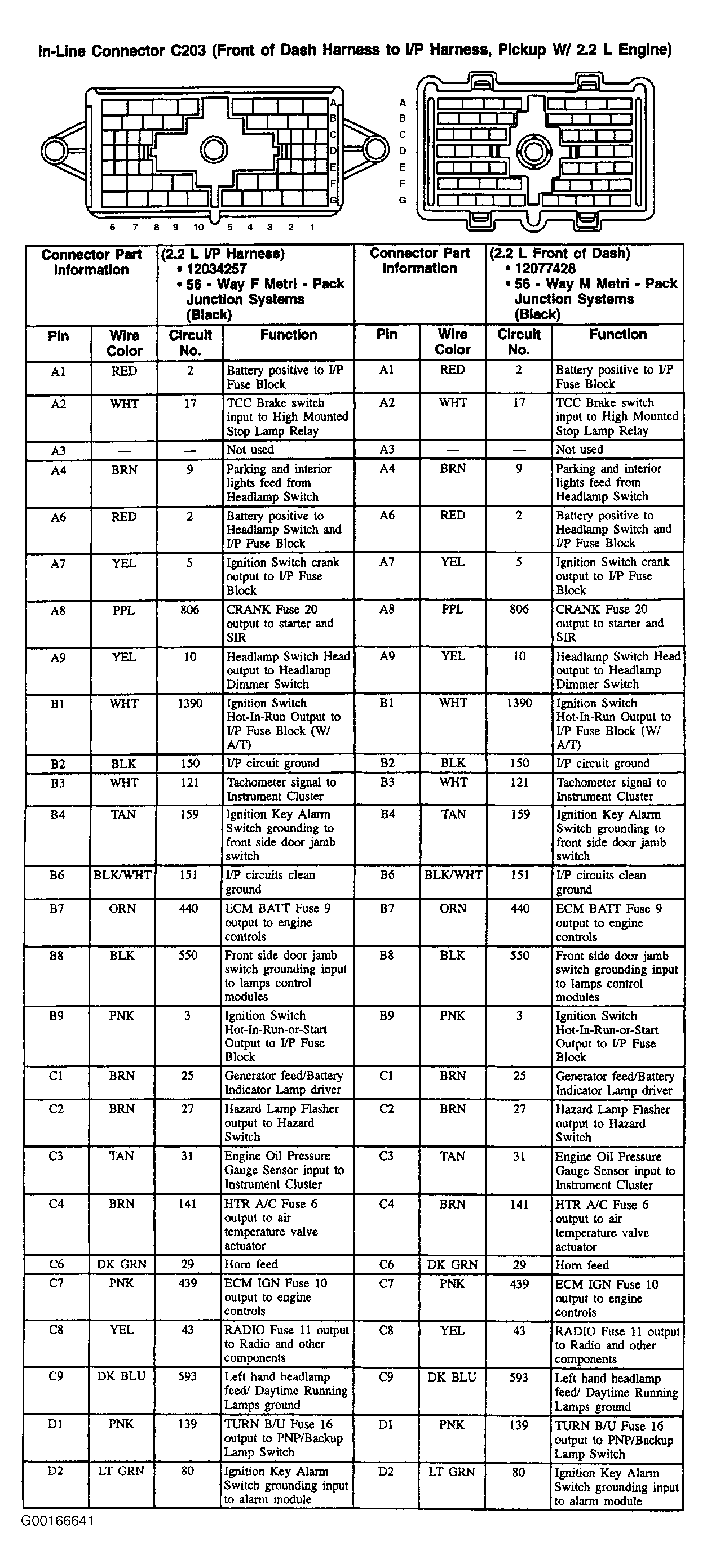

Fig 1: C203 (2.2L) - 56-Pin Connector, Black (1 Of 3)
G00166641Courtesy of GENERAL MOTORS CORP.

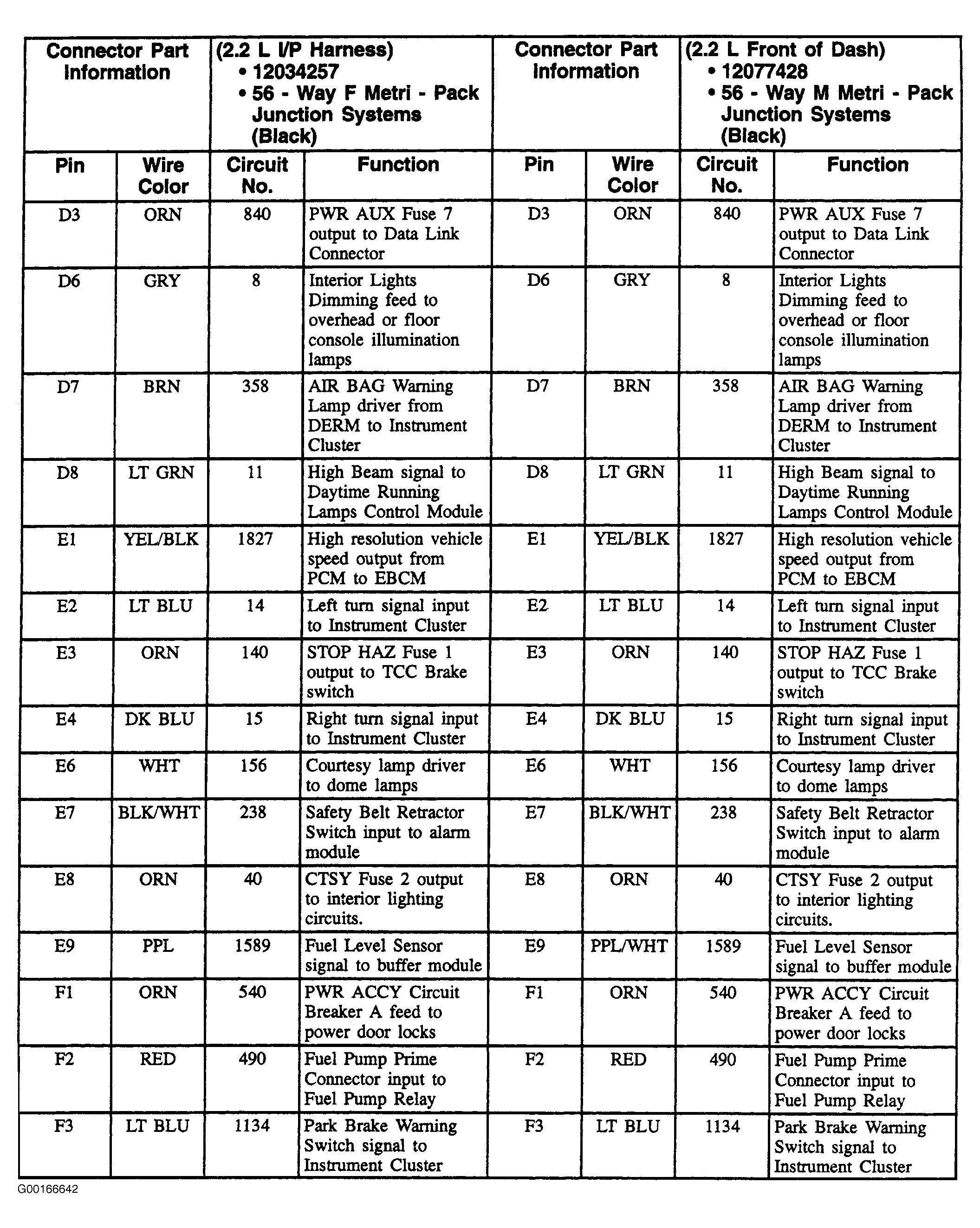

Fig 2: C203 (2.2L) - 56-Pin Connector, Black (2 Of 3)
G00166642Courtesy of GENERAL MOTORS CORP.

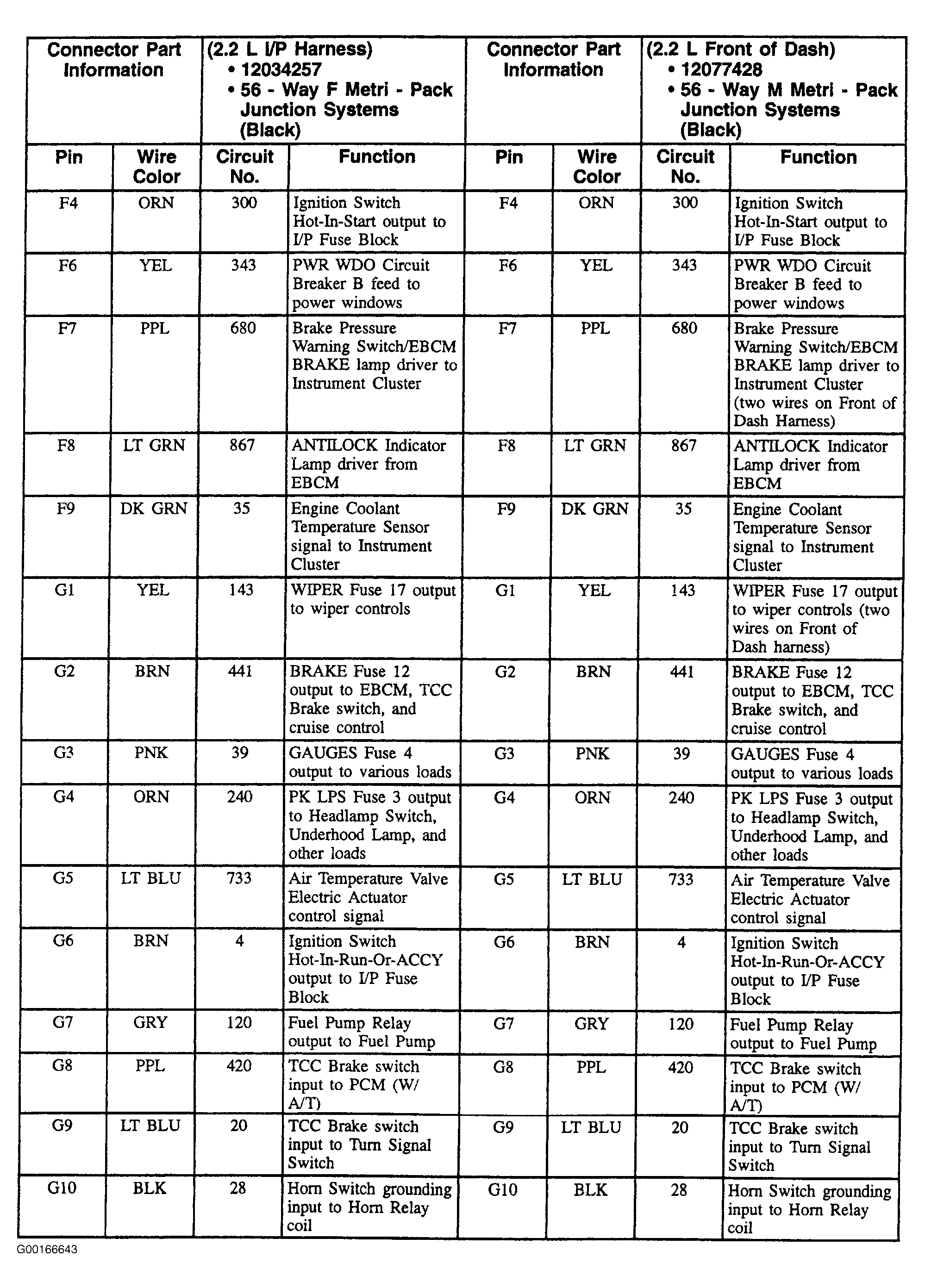

Fig 3: C203 (2.2L) - 56-Pin Connector, Black (3 Of 3)
G00166643Courtesy of GENERAL MOTORS CORP.
