Fuse Panel Identification (1983-84): Notes

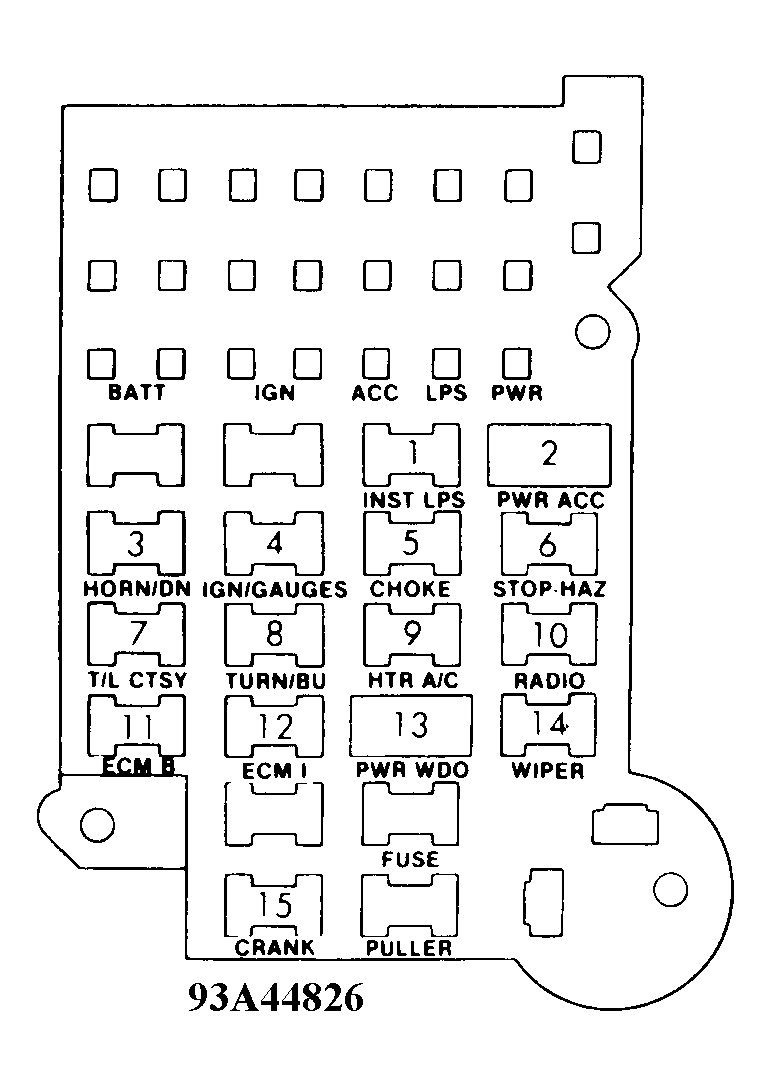

Fig 1: Fuse Panel Identification (1983-84)

G93A44826

Courtesy of GENERAL MOTORS CORP.
