Transfer Case

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

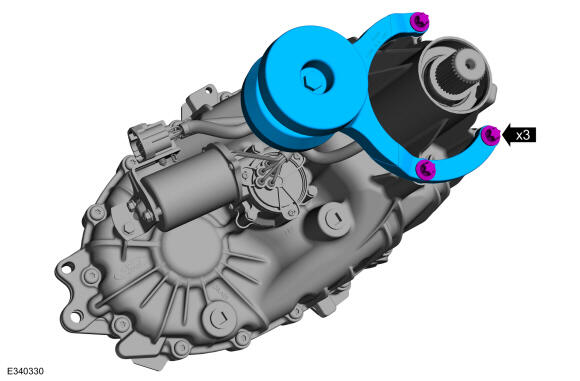

1. If removed, install the vibration damper to the transfer case.

   Torque : 20 Nm

   Courtesy of FORD MOTOR COMPANY

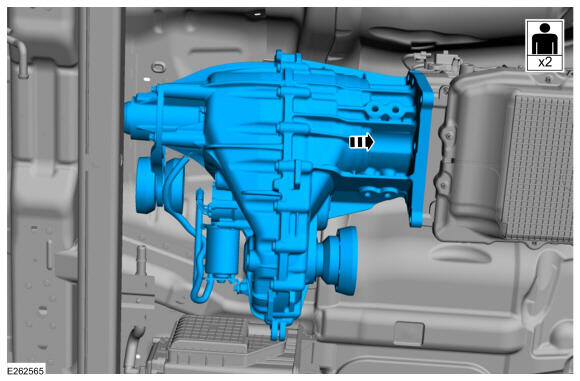

2. NOTE: The help of an assistant will be required.

   Position the transfer case on the crossmember. Lower the transmission approximately 25.4 mm (1 in).

   Courtesy of FORD MOTOR COMPANY

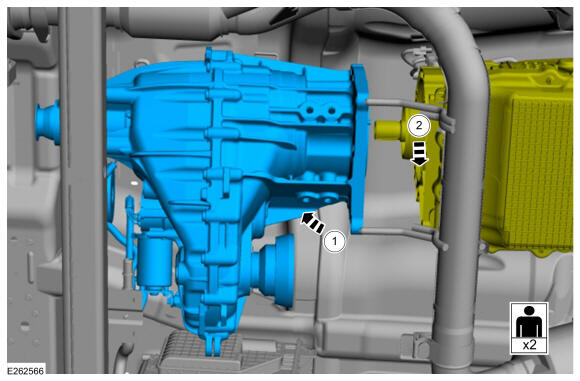

3. NOTE: The help of an assistant will be required.

   Position the transfer case to the transmission and onto the output shaft.

   Courtesy of FORD MOTOR COMPANY

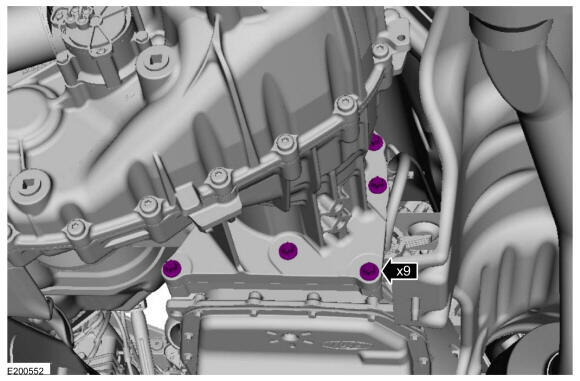

4. NOTE: Do not reuse the old transfer case-to-transmission bolts.

   Install new transfer case-to-transmission bolts.

   Torque : 19 Nm

   Courtesy of FORD MOTOR COMPANY

5. Install the transmission support insulator. Refer to: Transmission Support Insulator .

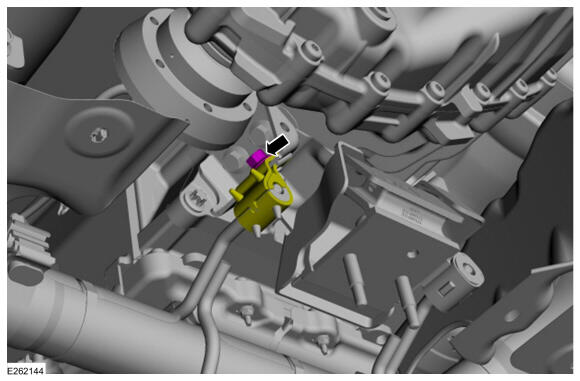

6. Install the LH exhaust support bracket and bolt.

   Torque : 55 Nm

   Courtesy of FORD MOTOR COMPANY

7. Install the transmission support crossmember. Refer to: Transmission Support Crossmember .

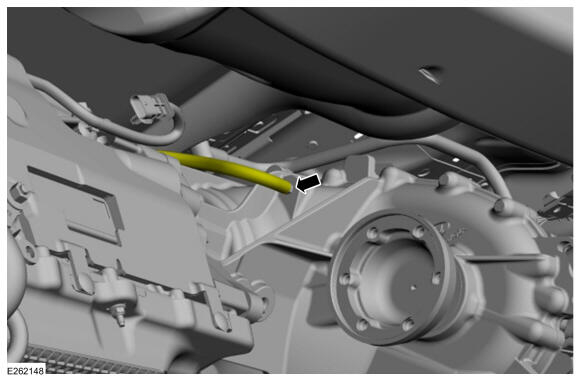

8. Connect the vent hose to the transfer case.

   Courtesy of FORD MOTOR COMPANY

   Vehicles With: 1-Speed Torque On Demand Transfer Case

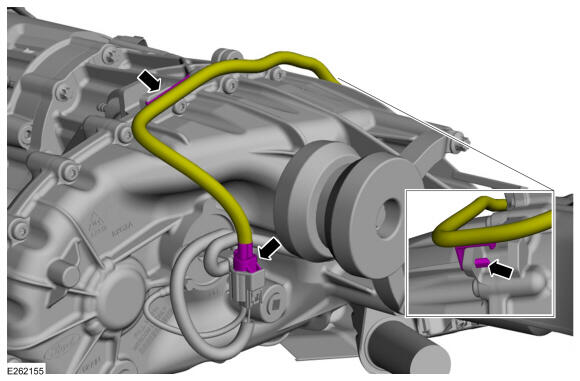

9. Connect the electrical connector and attach the harness retainer clip from the transfer case.

   Courtesy of FORD MOTOR COMPANY

   Vehicles With: 2-Speed Torque On Demand Transfer Case

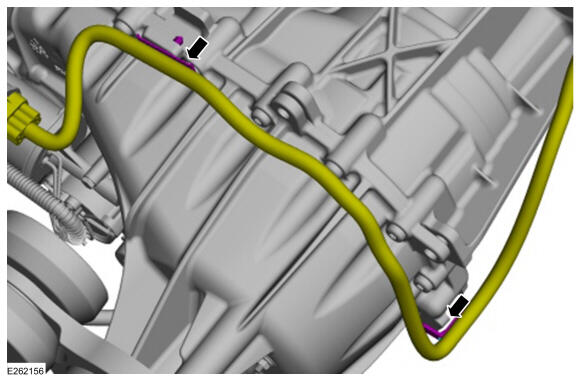

10. Connect the shift motor electrical connector.

    Courtesy of FORD MOTOR COMPANY

11. Connect the shift motor electrical connector.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

12. NOTE: Align the index marks made during removal.

    Install the rear driveshaft. Refer to: Rear Driveshaft .

13. NOTE: Align the index marks made during removal.

    Install the front driveshaft. Refer to: FRONT DRIVESHAFT .

14. Check the transfer case fluid level. Refer to: Transfer Case Draining and Filling .

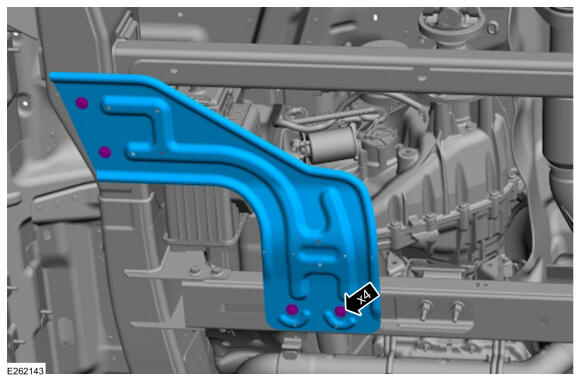

15. If equipped.Position the skid plate and install the skid plate bolts.

    Torque : 40 Nm

Courtesy of FORD MOTOR COMPANY
