Piston Ring End Gap
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Special Tool(s) / General Equipment
| Feeler Gauge |
|---|
Check
NOTE:
Refer to the appropriate service information in the ENGINE - 2.0L ECOBOOST (184KW/250PS) - MI4
/ ENGINE - 2.7L ECOBOOST (238KW/324PS) (1 OF 2)
/ ENGINE - 2.7L ECOBOOST (238KW/324PS) (2 OF 2)
for the specification.
-
NOTE: Use care when fitting piston rings to avoid possible damage to the piston ring or the cylinder bore.NOTE: Piston rings should not be transferred from one piston to another.NOTE: The cylinder bore must be within specification for taper and out-of-round.

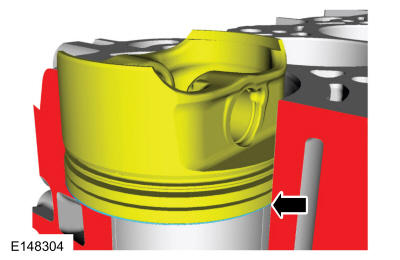

Use a piston without rings to push a piston ring in a cylinder to the bottom of ring travel.

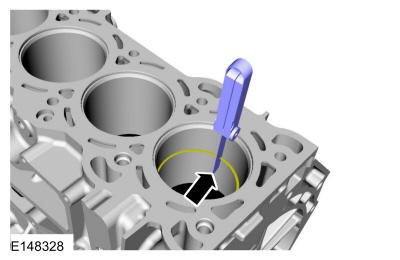

- Using the Feeler Gauge Set measure the top piston ring end gap and the second piston ring end gap. Use the General Equipment: Feeler Gauge
