Steering Gear: Installation

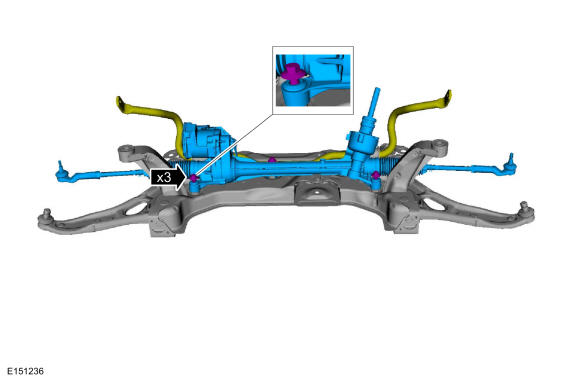

Install the steering gear, position the front stabilizer bar and install the new steering gear bolts finger tight.

Courtesy of FORD MOTOR COMPANY

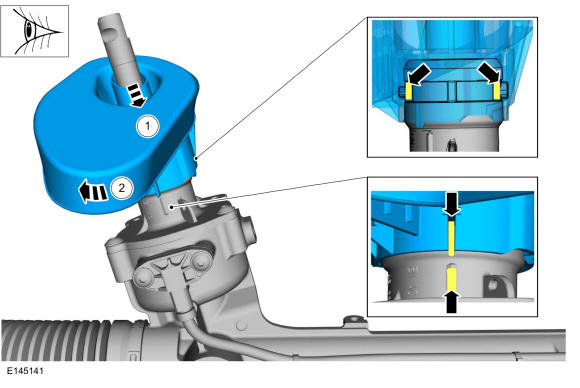

Check and install the steering gear boot on steering gear as shown in illustration.

Courtesy of FORD MOTOR COMPANY
With all 3 bolts finger tightened, complete all 4 stages of the tightening sequence first on bolt 1, then bolt 2 then bolt 3 as shown below.
1. Tighten the steering gear bolt.
  Torque

  :Stage 1: 81 lb.ft (110 Nm)

  Stage 2: Loosen: 360°

  Stage 3: 41 lb.ft (56 Nm)

  Stage 4: 180°
2. Tighten the steering gear bolt.
  Torque

  :Stage 1: 81 lb.ft (110 Nm)

  Stage 2: Loosen: 360°

  Stage 3: 41 lb.ft (56 Nm)

  Stage 4: 180°
3. Tighten the steering gear bolt.
  Torque

  :Stage 1: 81 lb.ft (110 Nm)

  Stage 2: Loosen: 360°

  Stage 3: 41 lb.ft (56 Nm)

  Stage 4: 180°

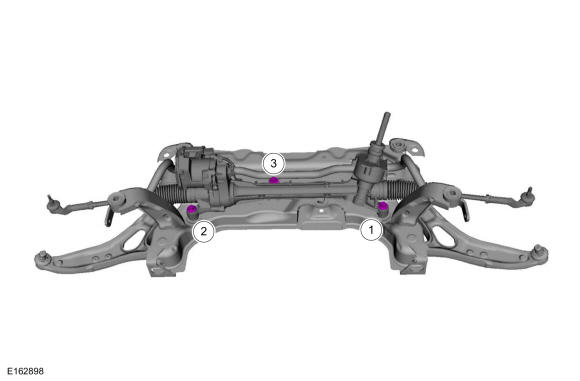

Fig 1: Gear Bolt Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the front subframe. Refer to: Front Subframe .
