Fuel Pump Driver Module (FPDM): Installation

Pickup

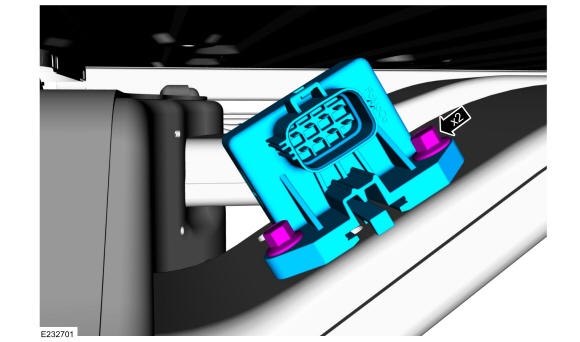

1. Install the fuel pump driver module (FPDM), then install and tighten the fuel pump driver module (FPDM) retainers.

   Torque

   : 71 lb.in (8 Nm)

   Courtesy of FORD MOTOR COMPANY

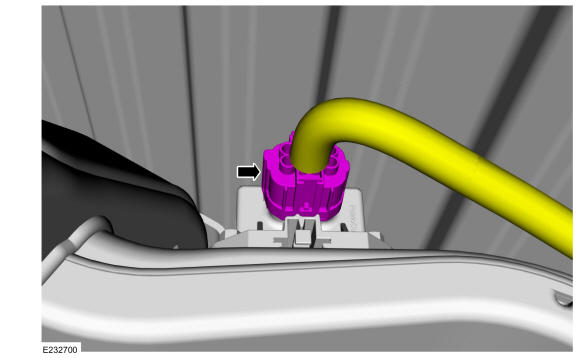

2. Connect the fuel pump driver module (FPDM) electrical connector.

   Courtesy of FORD MOTOR COMPANY

   Chassis Cab

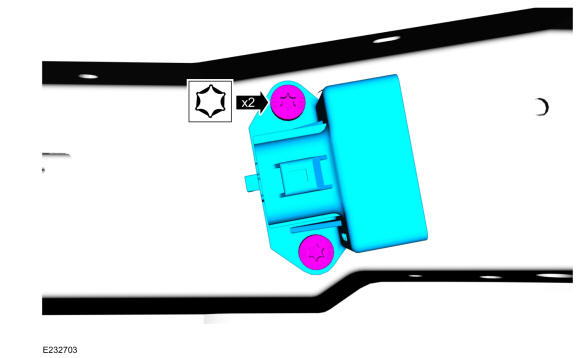

3. Install the fuel pump driver module, then install and tighten the fuel pump driver module retainers.

   Torque

   : 71 lb.in (8 Nm)

   Courtesy of FORD MOTOR COMPANY

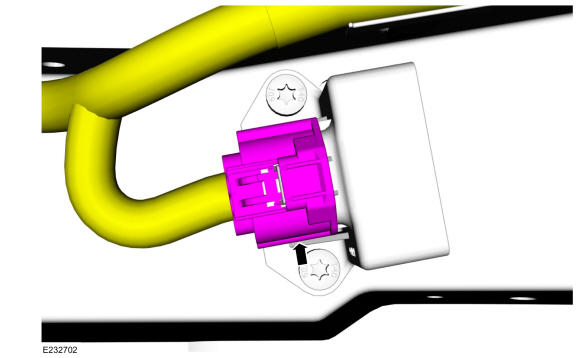

4. Connect the fuel pump driver module electrical connector.

Courtesy of FORD MOTOR COMPANY
