Steering Wheel Rotation Sensor: Notes

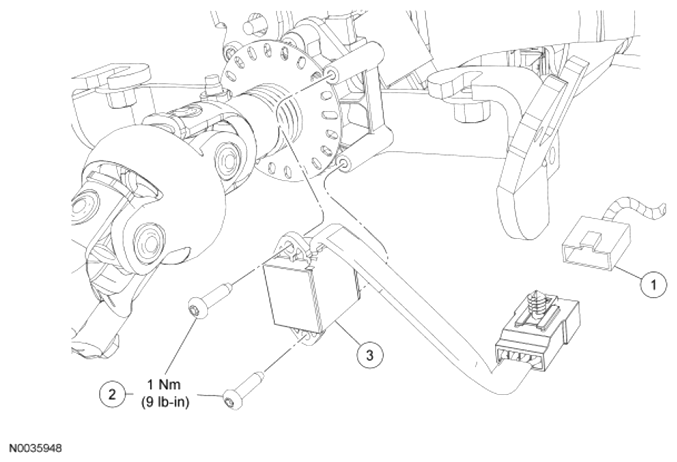

Fig 1: Exploded View Of Steering Wheel Rotation Sensor With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	-	Steering wheel rotation sensor electrical connector (part of 14401)
2	390345	Steering wheel rotation sensor bolts (2 required)
3	3F818	Steering wheel rotation sensor

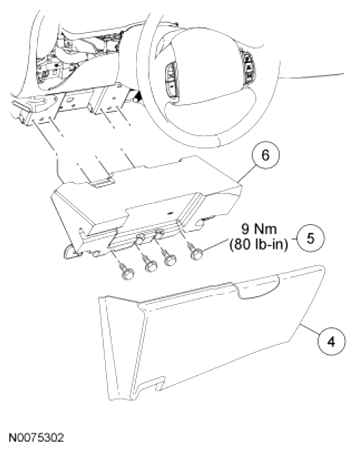

Fig 2: Exploded View Of Steering Wheel Rotation Sensor With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
4	1504459	Steering column opening cover
5	N808401	Instrument panel LH knee bolster bolt (4 required)
6	15043C74	Instrument panel LH knee bolster
