Anti-Lock Brake System (ABS) Module: Notes

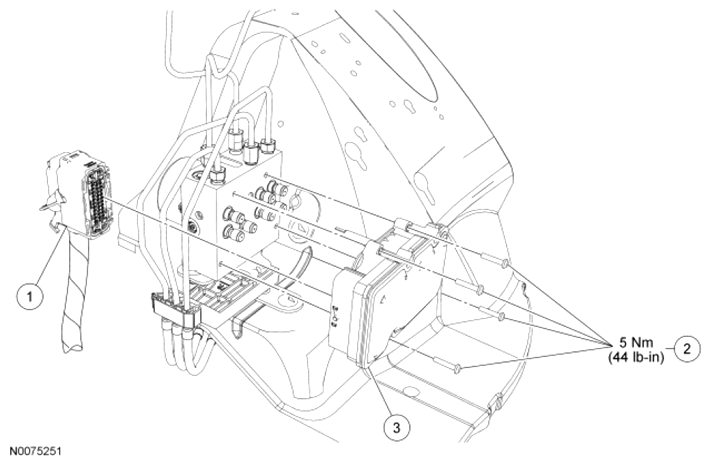

Fig 1: Locating Anti-Lock Brake System Module With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	-	ABS module electrical connector (part of 12A581)
2	-	ABS module screws (4 required) (part of 2C219)
3	2C219	ABS module
