Wiper/Washer Switch: Notes

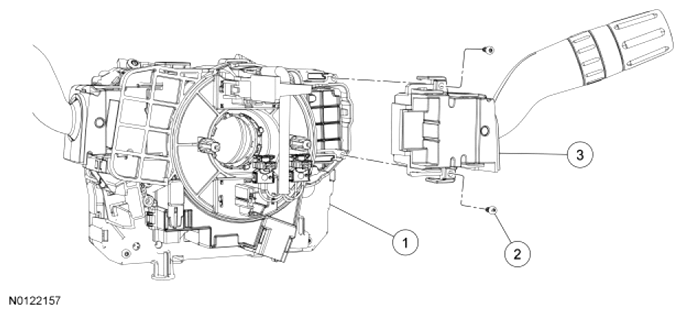

Fig 1: Exploded View Of Wiper And Washer Switch
G07403308Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 3F791 Steering Column Control Module (SCCM)
2 - Wiper/washer switch screw (part of 17A553) (2 required)
3 17A553 Wiper/washer switch
