Inline Connectors

Fig 1: Inline Connector End View (C110)

G07850132

Courtesy of FORD MOTOR CO.

Fig 2: Inline Connector End View (C133)

G07850140

Courtesy of FORD MOTOR CO.

Fig 3: Inline Connector End View (C139)

G07850142

Courtesy of FORD MOTOR CO.

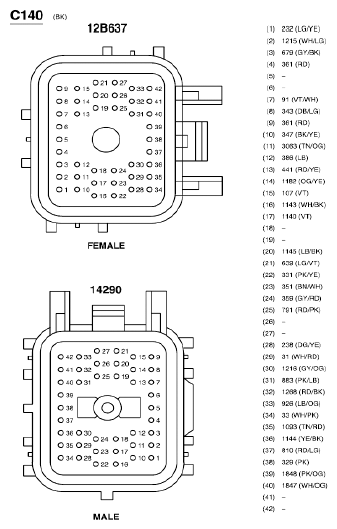

Fig 4: Inline Connector End View (C140)

G07850143

Courtesy of FORD MOTOR CO.

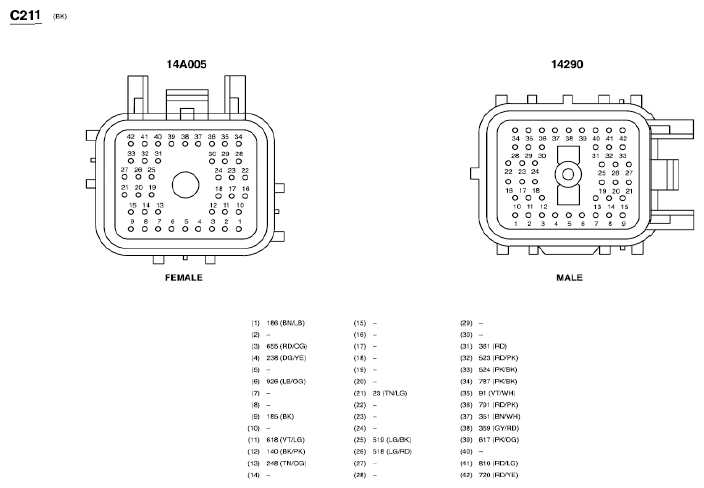

Fig 5: Inline Connector End View (C211)

G05169075

Courtesy of FORD MOTOR CO.

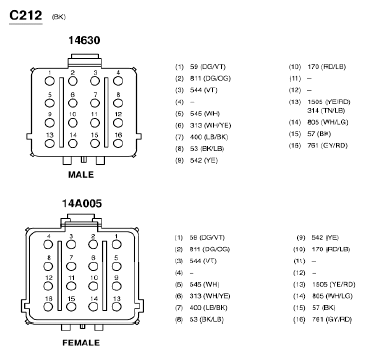

Fig 6: Inline Connector End View (C212)

G07850174

Courtesy of FORD MOTOR CO.

Fig 7: Inline Connector End View (C214)

G07850175

Courtesy of FORD MOTOR CO.

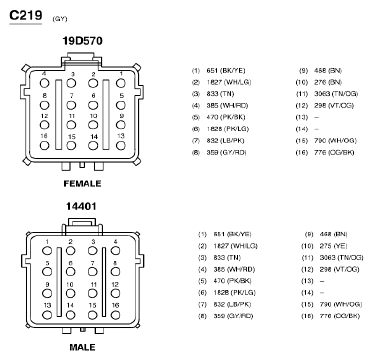

Fig 8: Inline Connector End View (C219)

G07850178

Courtesy of FORD MOTOR CO.

Fig 9: Inline Connector End View (C260)

G07850187

Courtesy of FORD MOTOR CO.

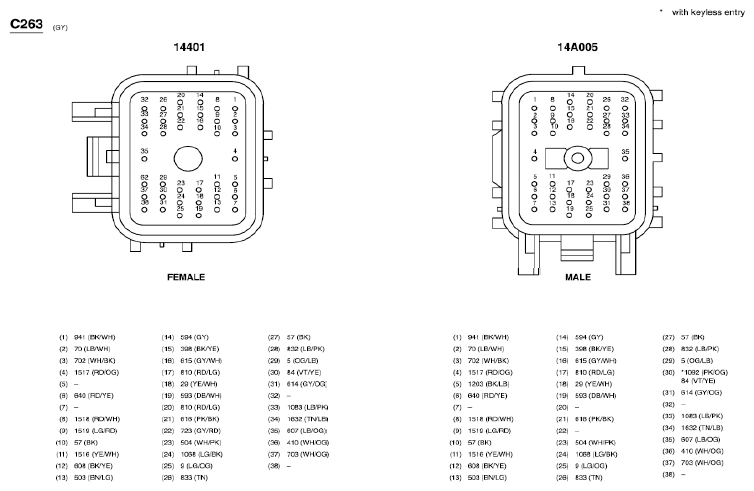

Fig 10: Inline Connector End View (C263)

G05169082

Courtesy of FORD MOTOR CO.

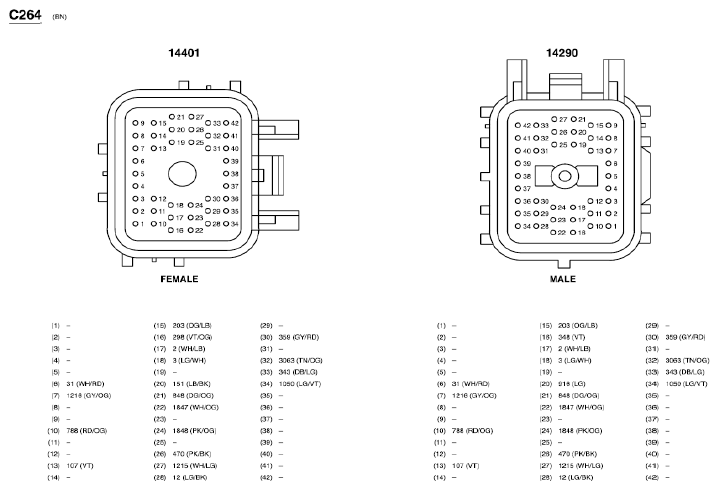

Fig 11: Inline Connector End View (C264)

G05169083

Courtesy of FORD MOTOR CO.

Fig 12: Inline Connector End View (C265)

G07850188

Courtesy of FORD MOTOR CO.

Fig 13: Inline Connector End View (C291)

G07850195

Courtesy of FORD MOTOR CO.

Fig 14: Inline Connector End View (C313)

G07850204

Courtesy of FORD MOTOR CO.

Fig 15: Inline Connector End View (C314)

G07850205

Courtesy of FORD MOTOR CO.

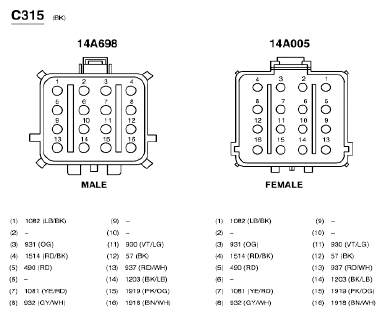

Fig 16: Inline Connector End View (C315)

G07850206

Courtesy of FORD MOTOR CO.

Fig 17: Inline Connector End View (C316)

G07850207

Courtesy of FORD MOTOR CO.

Fig 18: Inline Connector End View (C327)

G07850209

Courtesy of FORD MOTOR CO.

Fig 19: Inline Connector End View (C408)

G07850228

Courtesy of FORD MOTOR CO.

Fig 20: Inline Connector End View (C411)

G07850229

Courtesy of FORD MOTOR CO.

Fig 21: Inline Connector End View (C431)

G07850235

Courtesy of FORD MOTOR CO.

Fig 22: Inline Connector End View (C432)

G07850236

Courtesy of FORD MOTOR CO.

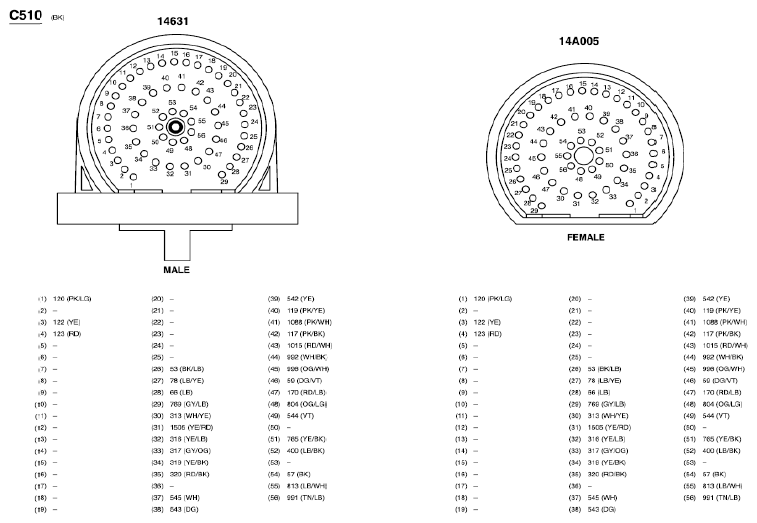

Fig 23: Inline Connector End View (C510)

G05169105

Courtesy of FORD MOTOR CO.

Fig 24: Inline Connector End View (C710)

G07850272

Courtesy of FORD MOTOR CO.

Fig 25: Inline Connector End View (C810)

G07850277

Courtesy of FORD MOTOR CO.

Fig 26: Inline Connector End View (C913)

G07850285

Courtesy of FORD MOTOR CO.

Fig 27: Inline Connector End View (C919)

G07850287

Courtesy of FORD MOTOR CO.

Fig 28: Inline Connector End View (C922)

G07850289

Courtesy of FORD MOTOR CO.
