Main Control Valve Body: Assembly

    WARNING: Air pressure must not exceed 138 kPa (20 psi). Wear safety glasses when using compressed air. Failure to follow these instructions can result in personal injury.
    CAUTION: If the valve sticks in its bore and cannot be freed, install a new main control valve body.
    NOTE: Clean the main control valve body and accumulator body assembly of the main control in cleaning solvent. Blow dry with moisture-free regulated compressed air. The solenoid valve body should not be cleaned in cleaning solvent. It may be blown clean with compressed air or wiped clean with a lint-free cloth.
    Fig 1: Installing Intermediate And Overdrive Accumulator Plug Seal And Coat With Petroleum Jelly
    G03901074Courtesy of FORD MOTOR CO.
  1. Install a new intermediate and overdrive accumulator plug seal and coat with petroleum jelly.
  2. CAUTION: Do not install the intermediate and overdrive accumulator valve plug and seal too far into the bore and damage the seal. Only push the intermediate and overdrive accumulator valve plug until it is flush with the accumulator body assembly.
    Fig 2: Installing Intermediate And Overdrive Accumulator Valve Plug
    G03901073Courtesy of FORD MOTOR CO.
  3. Install the intermediate and overdrive accumulator valve plug.
  4. Install the intermediate and overdrive accumulator valve plug retaining plate.
    Fig 3: Installing Intermediate And Overdrive Accumulator Valve Plug Retaining Plate
    G03901072Courtesy of FORD MOTOR CO.
  5. Install the special tool.

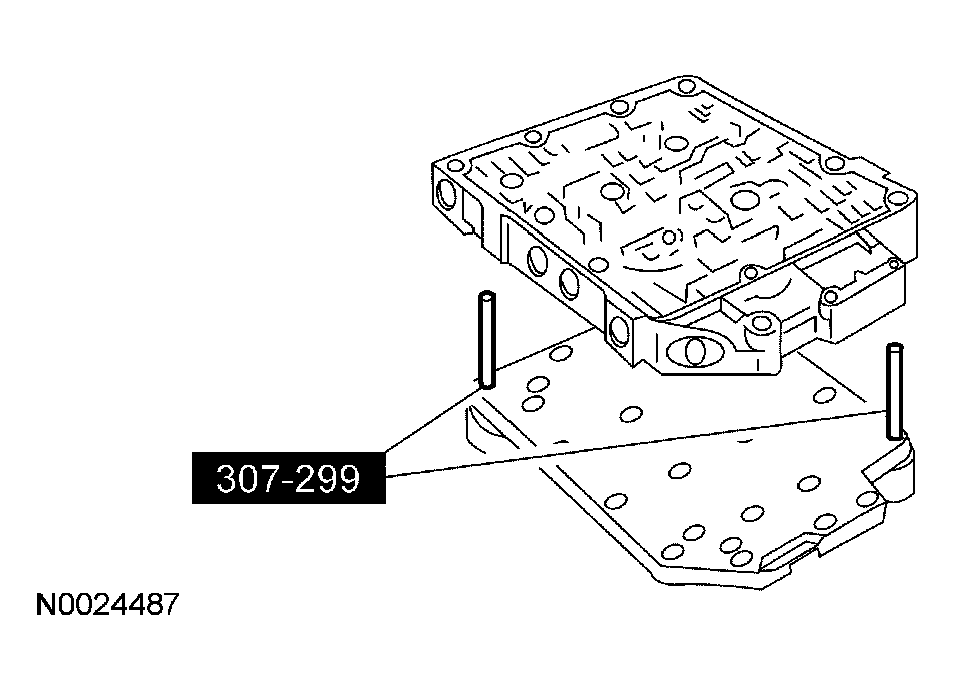

    Fig 4: Installing Special Tool
    G03901078Courtesy of FORD MOTOR CO.
  6. Using the special tool, install the valve body separator plate gaskets and valve body separator plate.
    1. Install a new valve body separator plate gasket.
    2. Install the valve body separator plate.
    3. Install a new valve body separator plate gasket.
      Fig 5: Installing Valve Body Separator Plate Gaskets And Valve Body Separator Plate
      G03901079Courtesy of FORD MOTOR CO.
  7. Using the special tool, install the main control valve body.
    Fig 6: Installing Main Control Valve Body
    G03901078Courtesy of FORD MOTOR CO.
  8. Using the special tool, install the accumulator body separator plate and gaskets.
    1. Install a new accumulator body separator plate gasket.
    2. Install the accumulator body separator plate.
    3. Install a new accumulator body separator plate gasket.

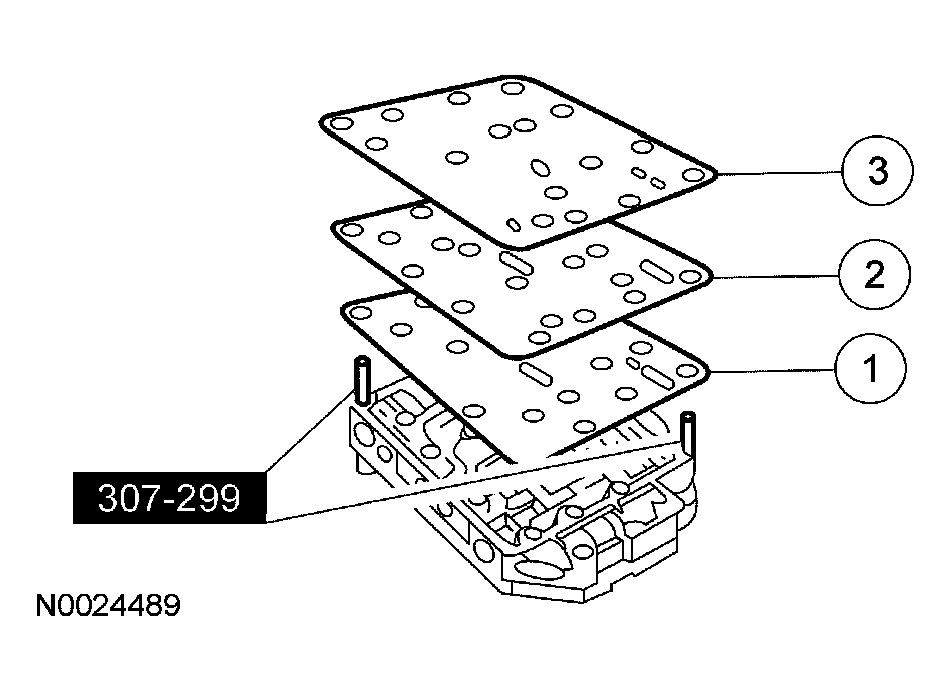

      Fig 7: Installing Accumulator Body Separator Plate And Gaskets
      G03901081Courtesy of FORD MOTOR CO.
  9. Using the special tool, install the accumulator body assembly.

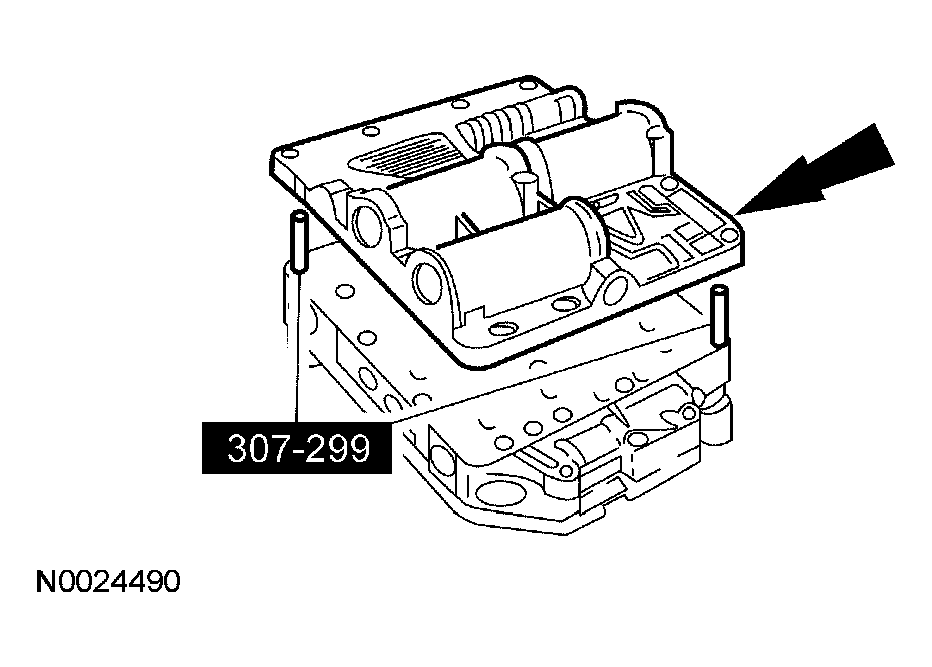

    Fig 8: Installing Accumulator Body Assembly
    G03901082Courtesy of FORD MOTOR CO.
  10. Starting with the bolts in the middle and working outward, install the accumulator body transfer plate.
    • Tighten to 12 Nm (9 lb-ft).
      Fig 9: Installing Accumulator Body Transfer Plate
      G03901069Courtesy of FORD MOTOR CO.
  11. Starting with the bolts in the middle and working outward, install the main control valve body to transfer plate and install the detent spring.
    • Tighten to 12 Nm (9 lb-ft).
      Fig 10: Installing Detent Spring
      G03901084Courtesy of FORD MOTOR CO.
  12. Install a new pressure tap plate gasket.

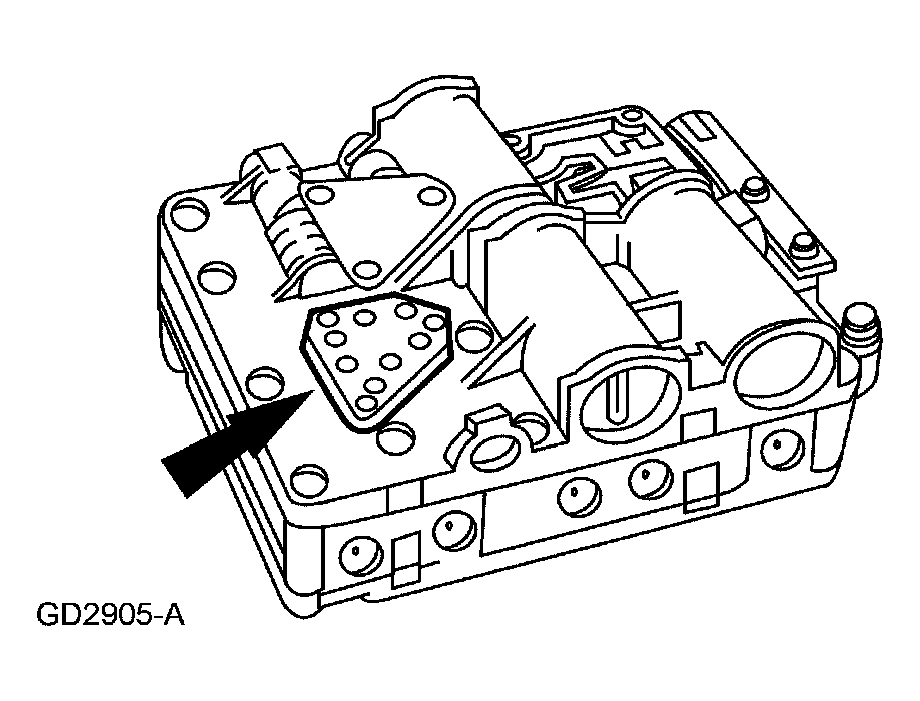

    Fig 11: Installing Pressure Tap Plate Gasket
    G03901085Courtesy of FORD MOTOR CO.
  13. Install the pressure tap plate and bolts.
    • Tighten to 8 Nm (71 lb-in).
      Fig 12: Installing Pressure Tap Plate And Bolts
      G03901066Courtesy of FORD MOTOR CO.
  14. NOTE: Match the solenoid valve body gasket to passages.
  15. Install the solenoid valve body.
    1. Install the solenoid valve body gasket.
    2. Install the solenoid valve body.
    3. Install the 2 solenoid valve body bolts.
      • Tighten to 10 Nm (89 lb-in).
        Fig 13: Installing Solenoid Valve Body
        G03901087Courtesy of FORD MOTOR CO.
  16. Install the manual valve.

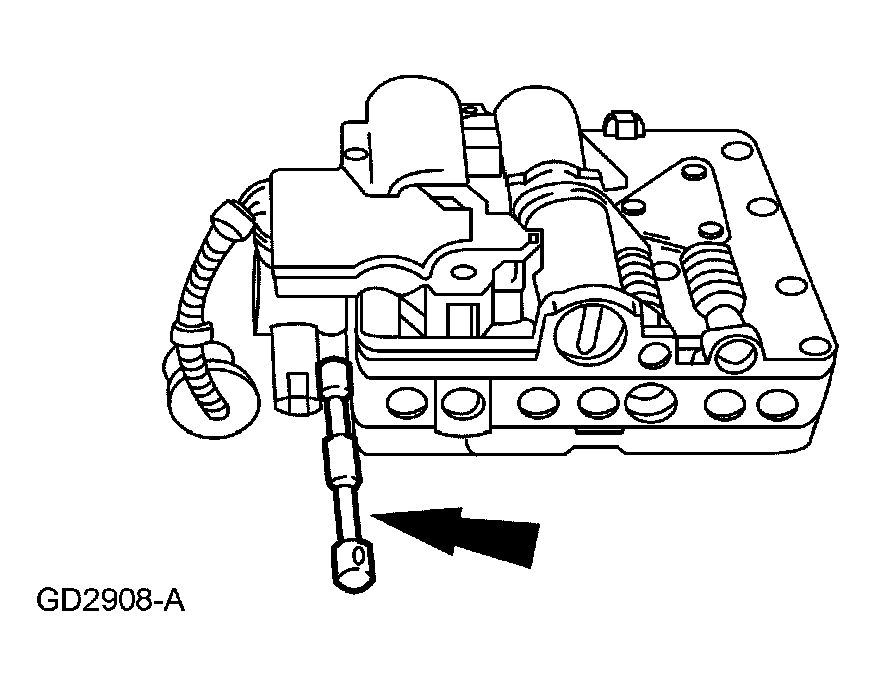

    Fig 14: Installing Manual Valve
    G03900655Courtesy of FORD MOTOR CO.
