Item 92: Fluid Pump Assembly Note

  1. Using the special tool, make sure that the fluid pump gear seal ring is fully seated.
    Fig 1: Inspecting Fluid Pump Gear Seal Ring
    G03182336Courtesy of FORD MOTOR CO.
  2. Remove the special tool.

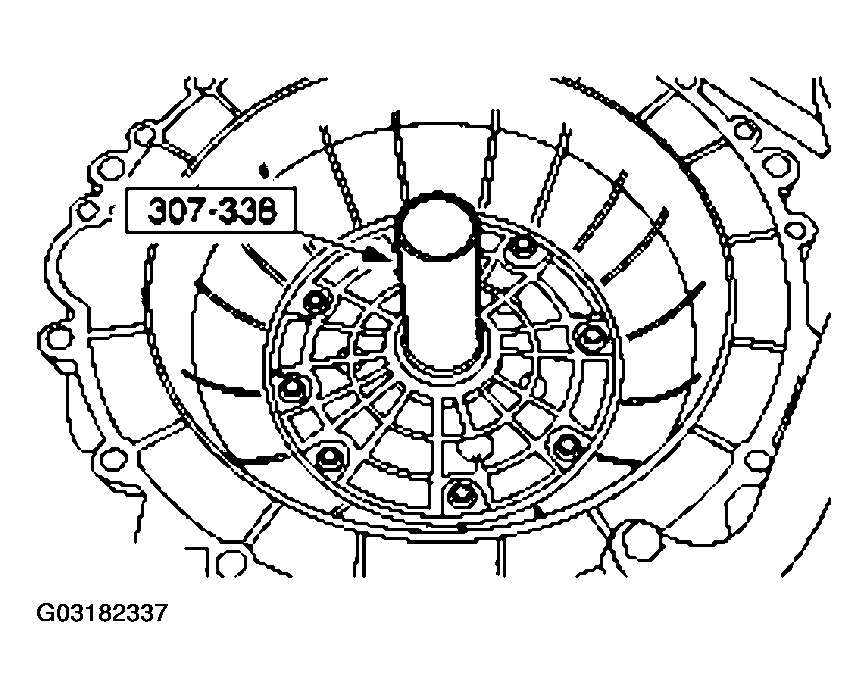

    Fig 2: Removing Special Tool
    G03182337Courtesy of FORD MOTOR CO.
