Items 2 and 3: Front Pump Drive Gear Assembly Note

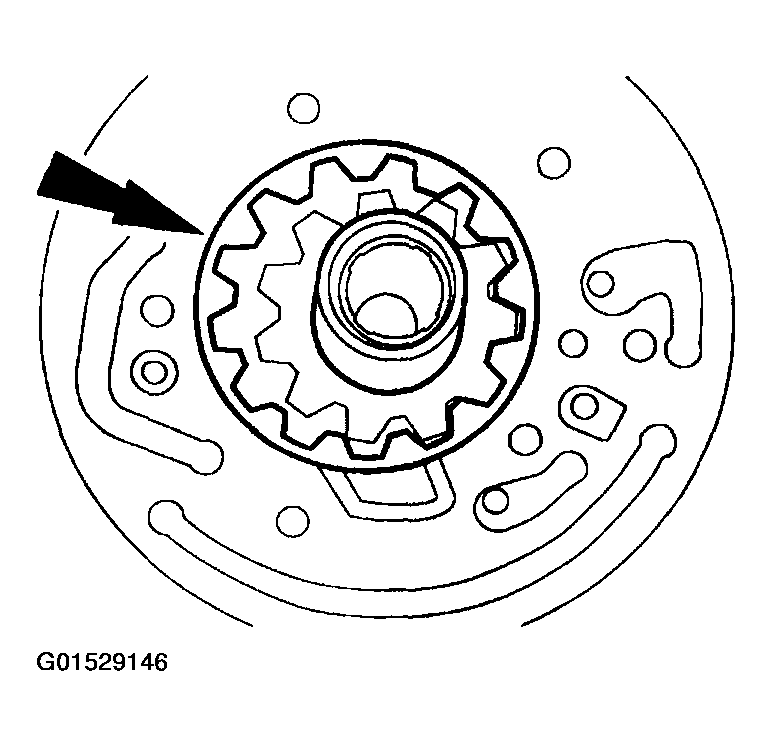

- Install the pump gears into the fluid pump housing. Apply multi-purpose grease to the pump gears to prevent scoring at start up.
CAUTION:
The chamber on the inside edge of the small gear must be up when in the pump housing gear pocket. The dimple on the larger gear must be down when in the pump housing gear pocket.
