Air Induction Systems: Turbocharger: Symptoms

For symptom diagnostics, see Fig 1 and Fig 2 .

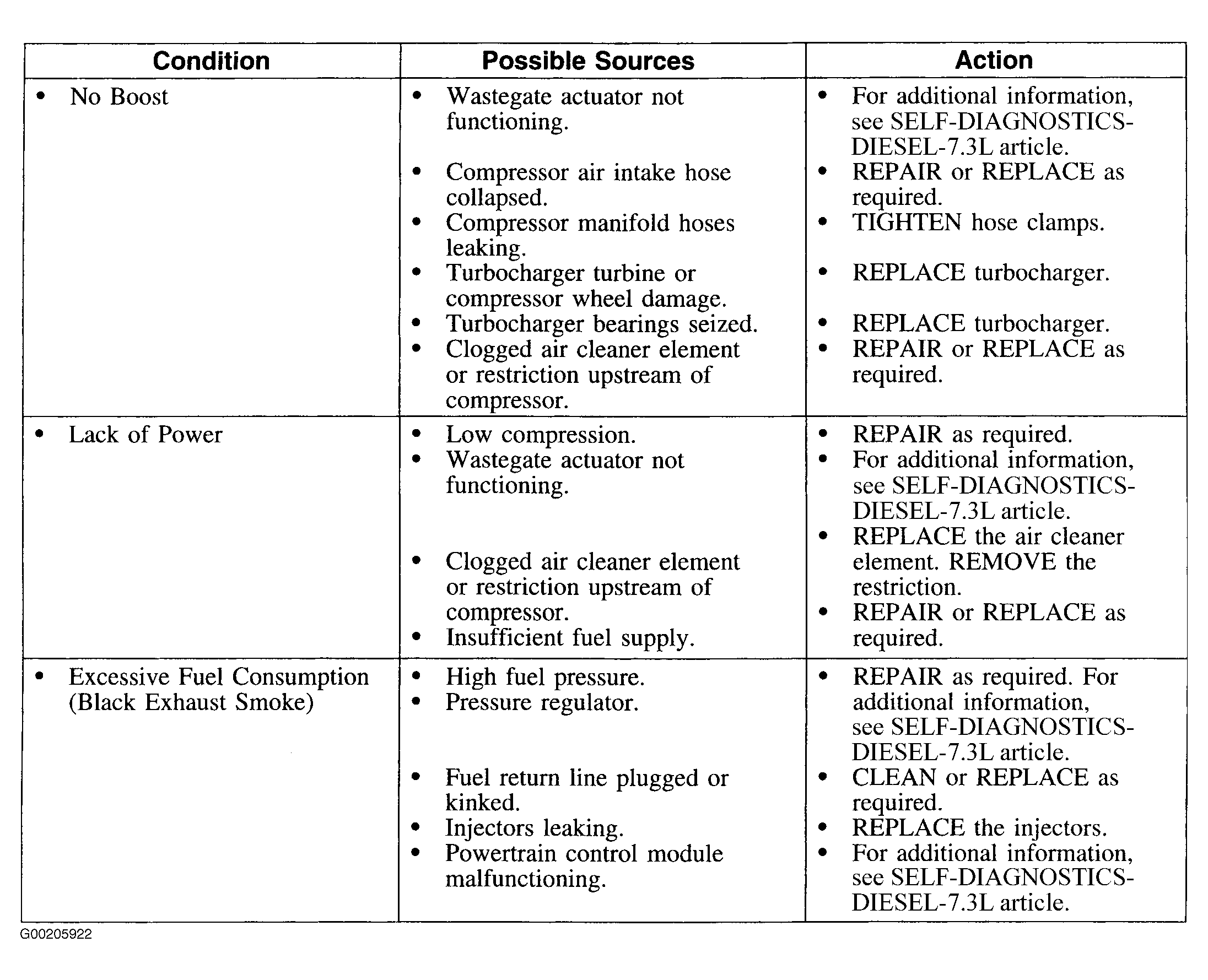

Fig 1: Symptom Charts (1 Of 2)
G00205922Courtesy of FORD MOTOR CO.

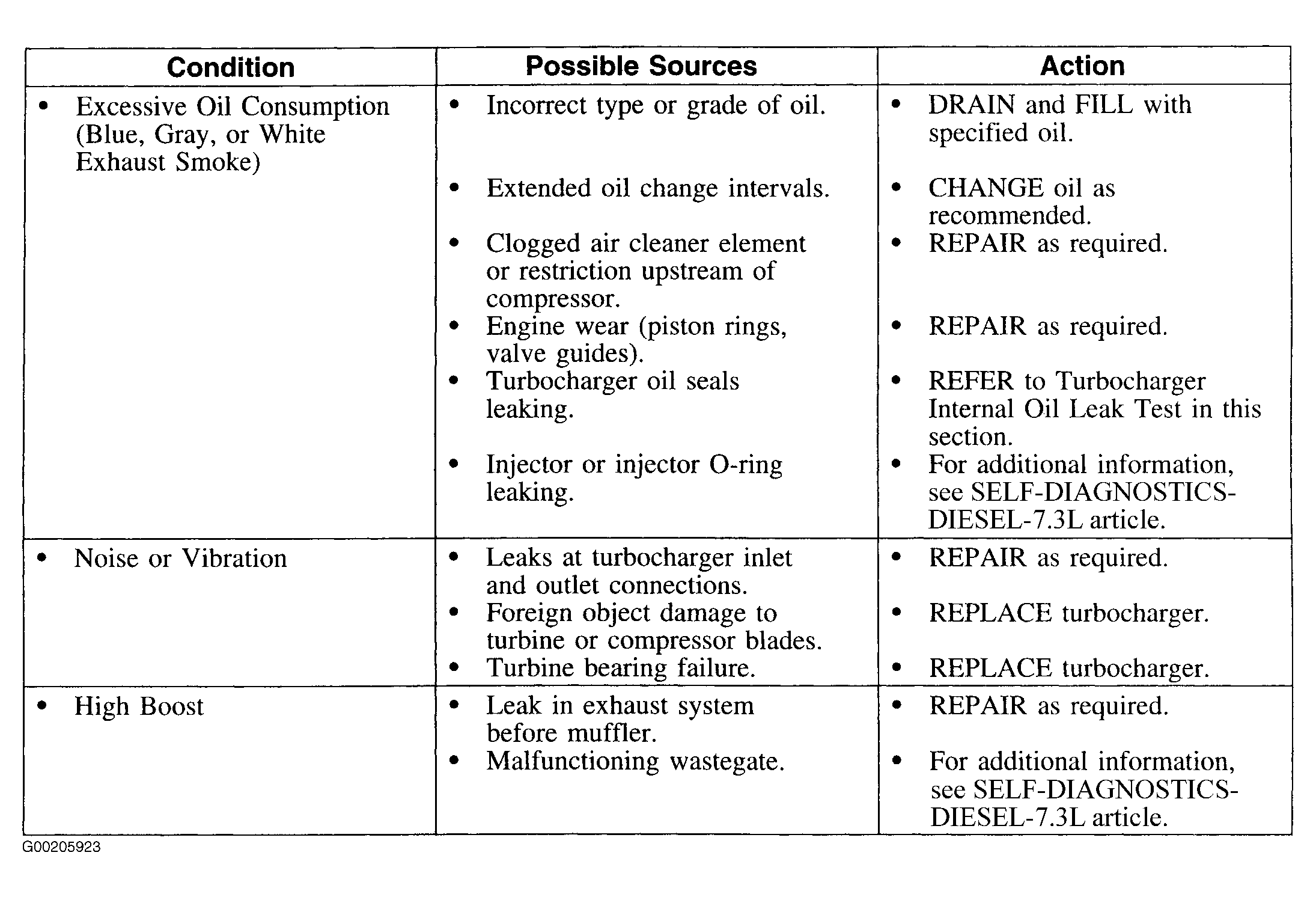

Fig 2: Symptom Charts (2 Of 2)
G00205923Courtesy of FORD MOTOR CO.
