Crankcase Ventilation Tube: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

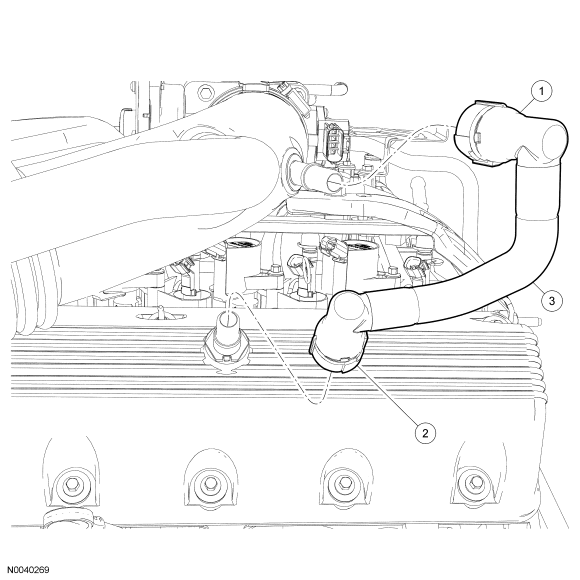

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
LH crankcase ventilation tube-to-Air Cleaner (ACL) outlet pipe quick connect coupling (part of 9G499) |
| 2 |
- |
LH crankcase ventilation tube-to-valve cover fitting quick connect coupling (part of 9G499) |
| 3 |
9G499 |
LH crankcase ventilation tube |

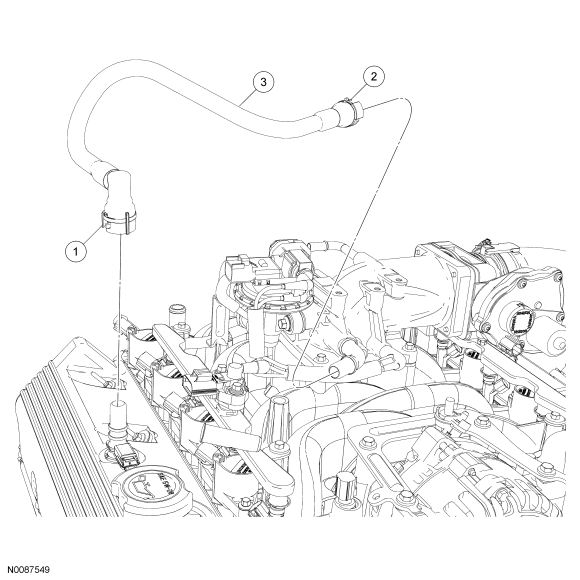

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
RH crankcase ventilation tube-to-PCV valve quick connect coupling (part of 9E499A) |
| 2 |
- |
RH crankcase ventilation tube-to-Throttle Body (TB) spacer quick connect coupling (part of 9E499A) |
| 3 |
9E499 |
RH crankcase ventilation tube |
