CII Pump
- Remove the reservoir cap. Check the fluid.
- Tightly insert the stopper of the Vacuum Pump (D95L-7559-A) or equivalent into the reservoir.
- Start the vehicle.
- Apply maximum vacuum and maintain it for a minimum of three minutes with the engine speed set at idle.
- Release the vacuum and remove the vacuum pump.
- Fill the reservoir.

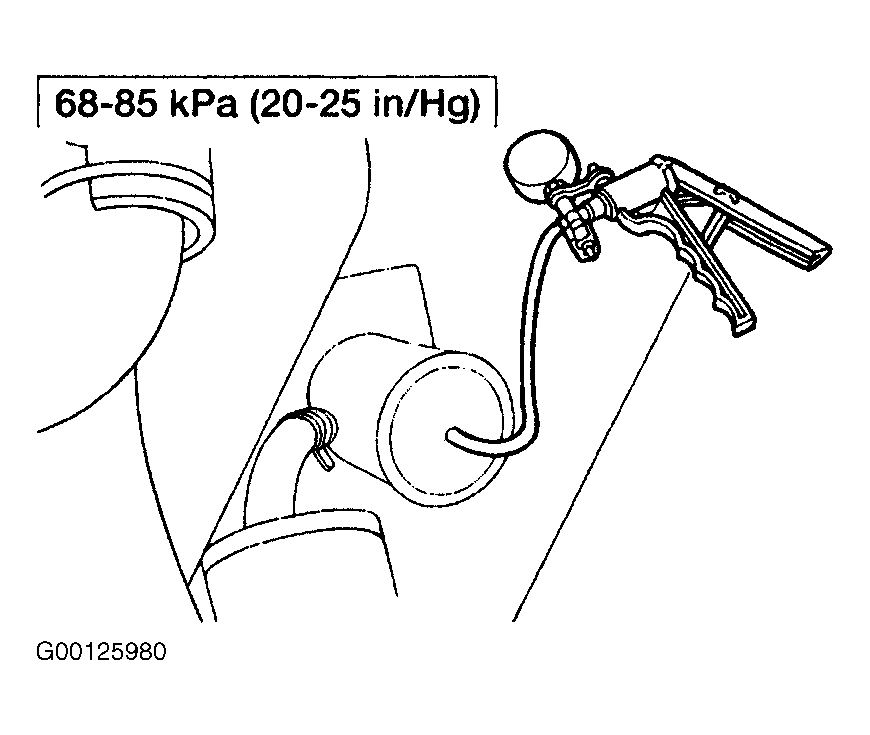

- Reinstall the vacuum pump. Apply and maintain maximum vacuum. Fig 1
- Cycle the steering wheel fully to the left and right every 30 seconds for approximately five minutes.
- Stop the engine, release the vacuum, and remove the vacuum pump.
- Install the reservoir cap.
- Check for fluid leaks at all of the connections. If the power steering fluid shows signs of air, repeat this procedure.
CAUTION:
Do not overfill the reservoir.
CAUTION:
Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump could occur.
