Removal And Installation: Installation

GC0164730Courtesy of CHRYSLER GROUP, LLC
  1. If removed, install the steering wheel switches.
  2. Position the steering wheel on the shaft, aligning the references on the steering wheel and on the steering column.

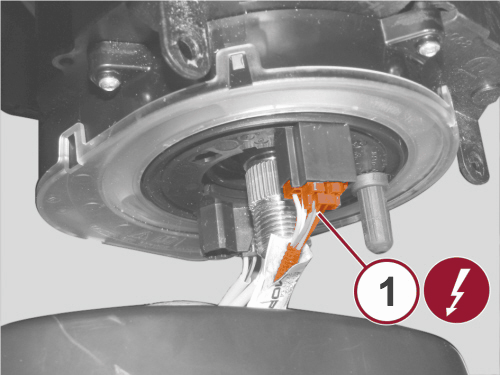

  3. Connect the steering wheel electrical connector (1).
    GC0164840Courtesy of CHRYSLER GROUP, LLC

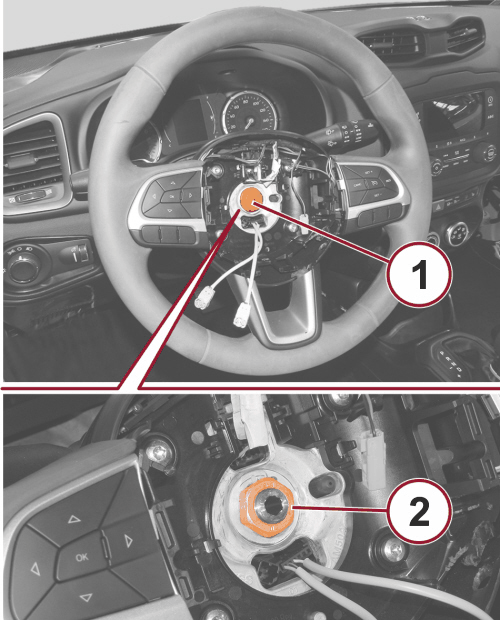

  4. Install the steering wheel fastener (2), and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  5. Install the steering wheel fastener cover (1).
  6. Install drivers airbag. Refer to AIR BAG, DRIVER, INSTALLATION .
  7. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
