Knob, Gearshift: Installation

GC0153082Courtesy of CHRYSLER GROUP, LLC
  1. Install the shifter knob (1) onto the shifter shaft (2) and seat fully, an audible click should be heard.

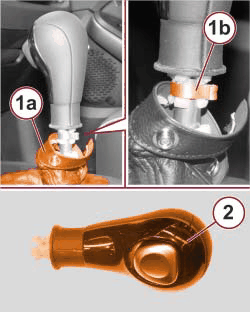

    GC0177164Courtesy of CHRYSLER GROUP, LLC
  2. Install a NEW  shifter knob retaining clamp (1b) and clamp with an appropriate tool.
  3. Firmly pull up on the knob to verify proper installation.
    GC0177165Courtesy of CHRYSLER GROUP, LLC
  4. Snap the shifter boot snap (1a) closed.
  5. Connect the negative battery cable.
