NS-1: Ignition Check Flow Charts

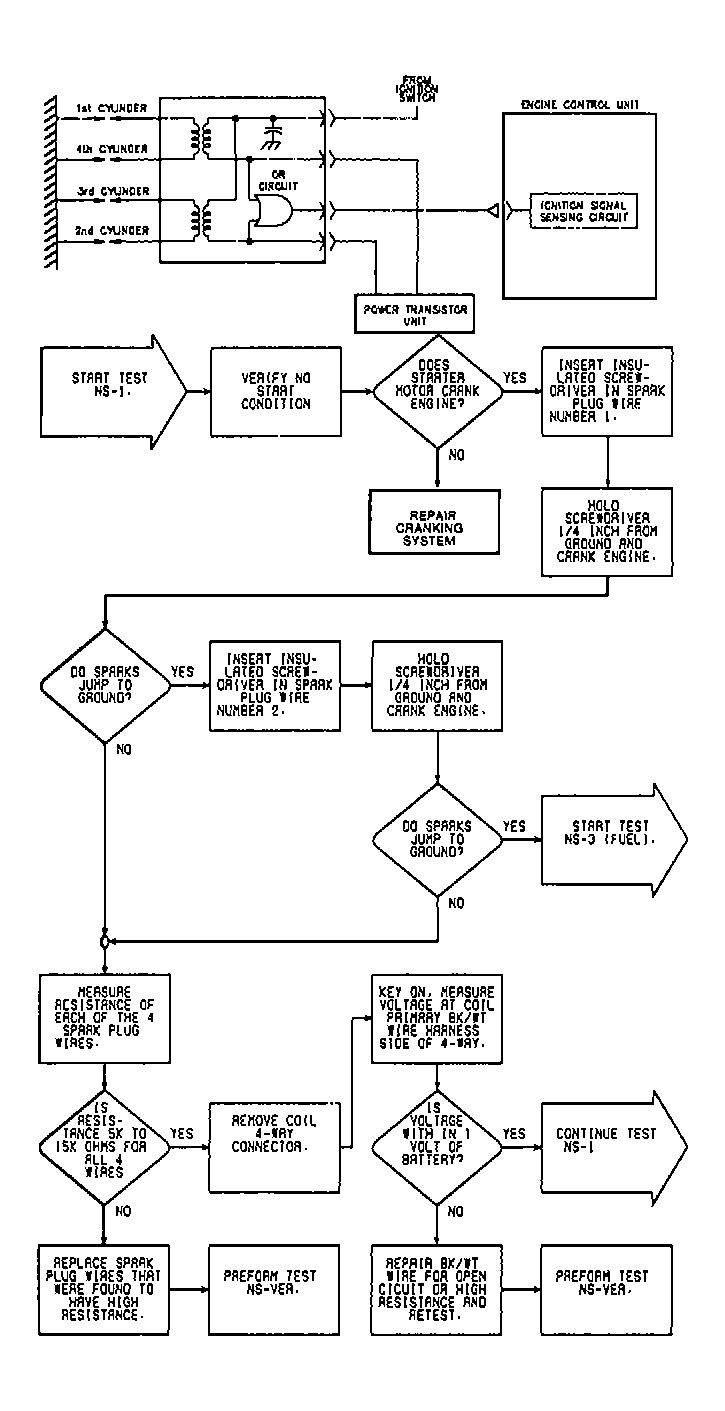

Fig 1: NS-1 Flow Chart & Circuit Diagram (1 of 5)
G90D12651

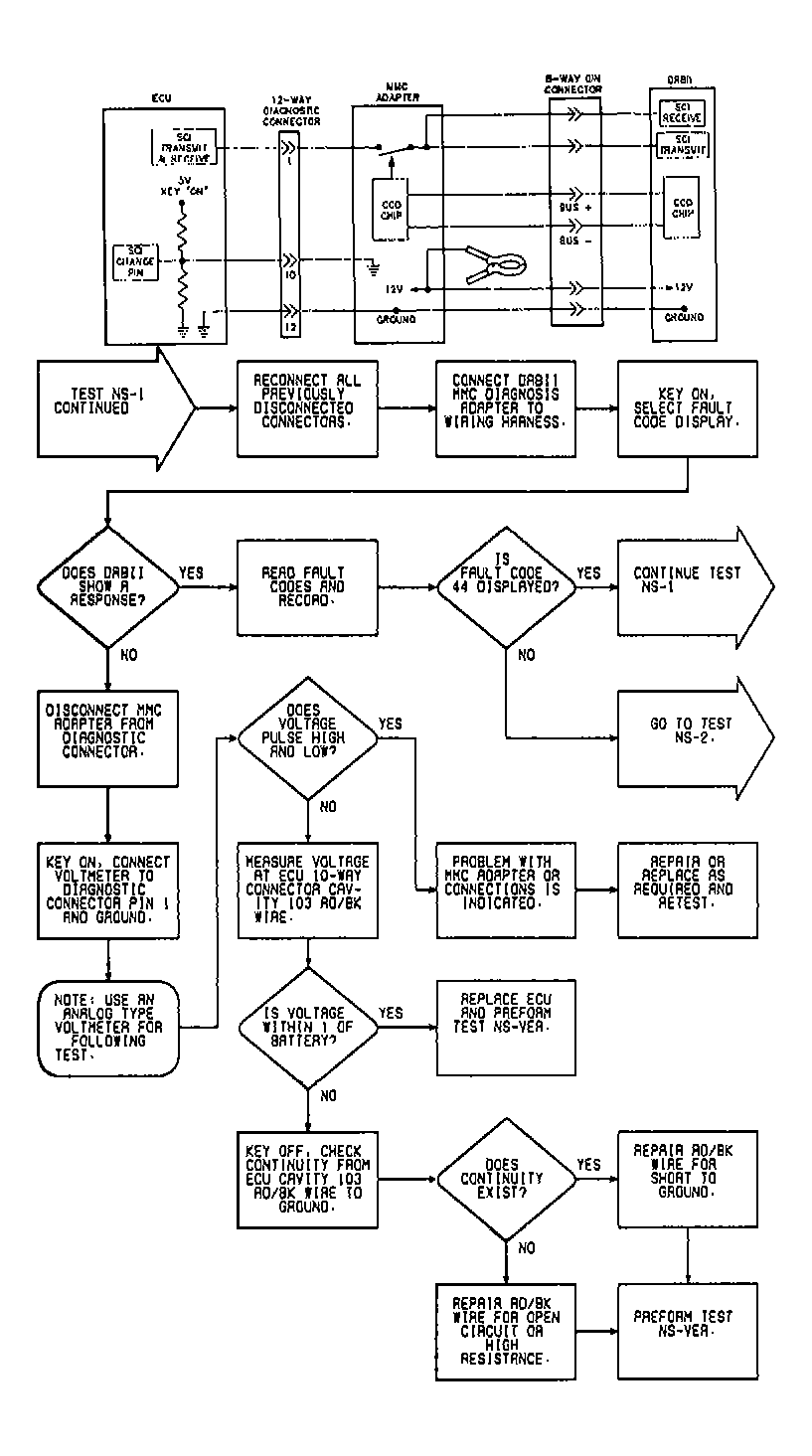

Fig 2: NS-1 Flow Chart & Circuit Diagram (2 of 5)
G90E12652

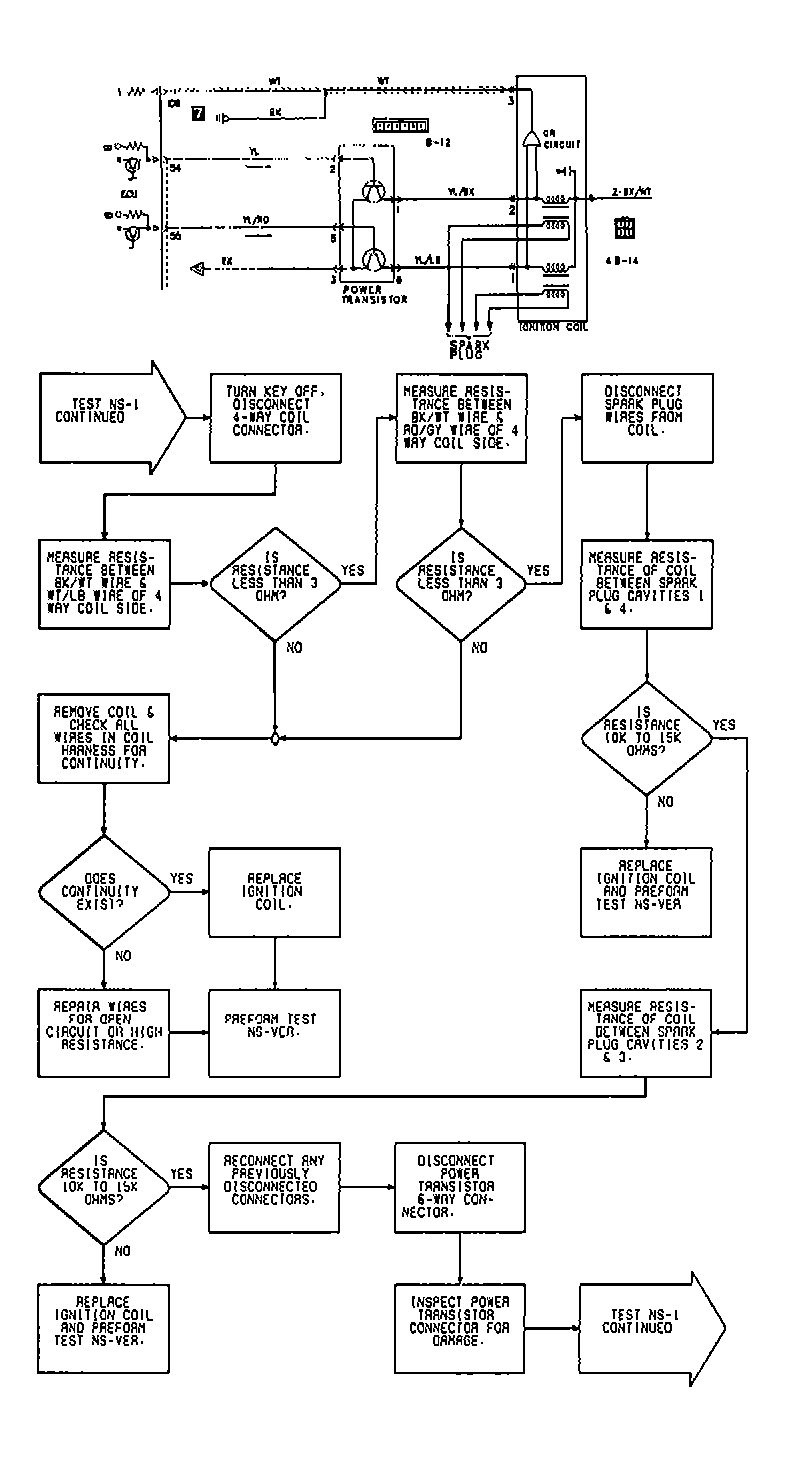

Fig 3: NS-1 Flow Chart & Circuit Diagram (3 of 5)
G90F12653

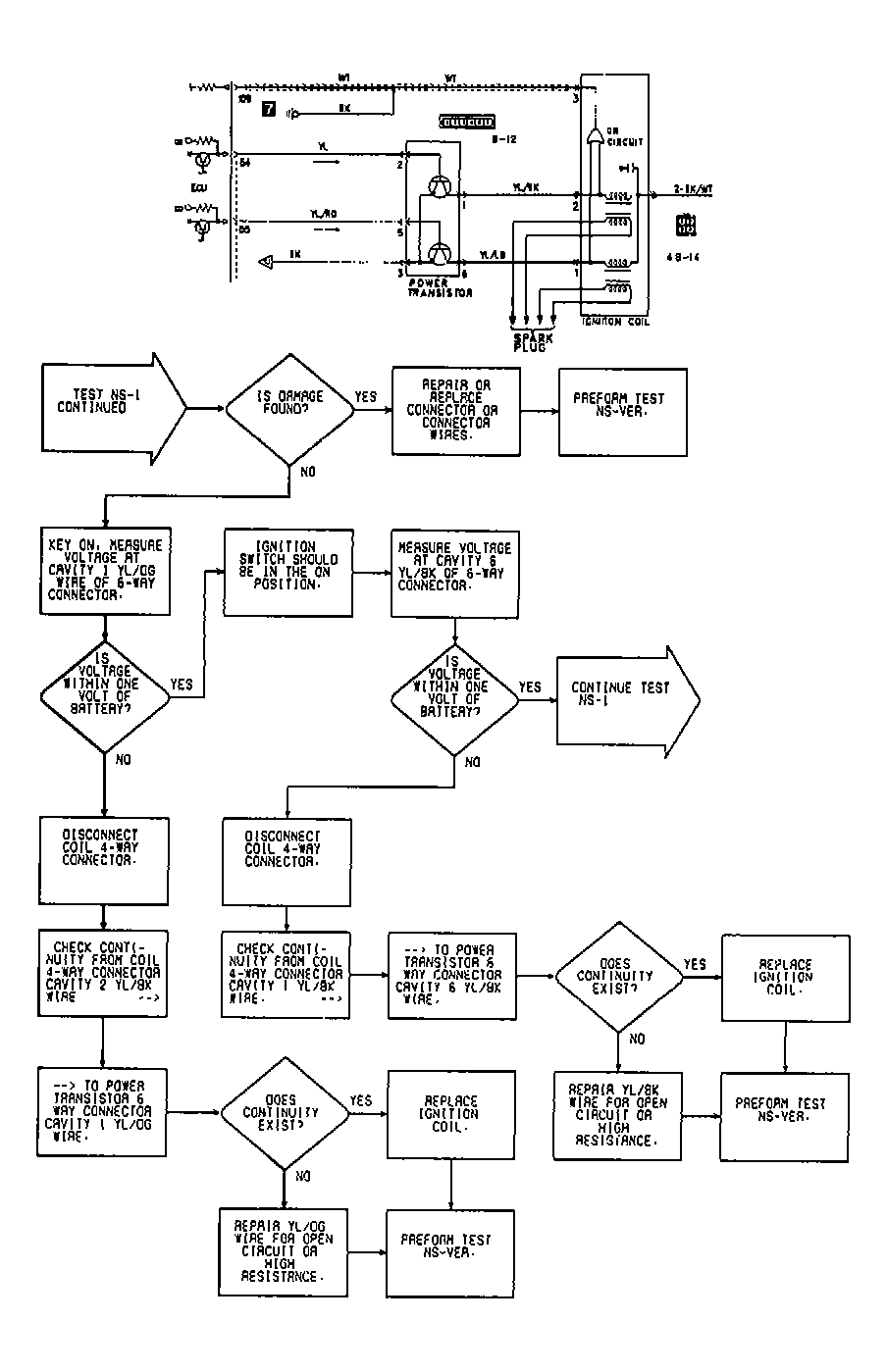

Fig 4: NS-1 Flow Chart & Circuit Diagram (4 of 5)
G90G12654

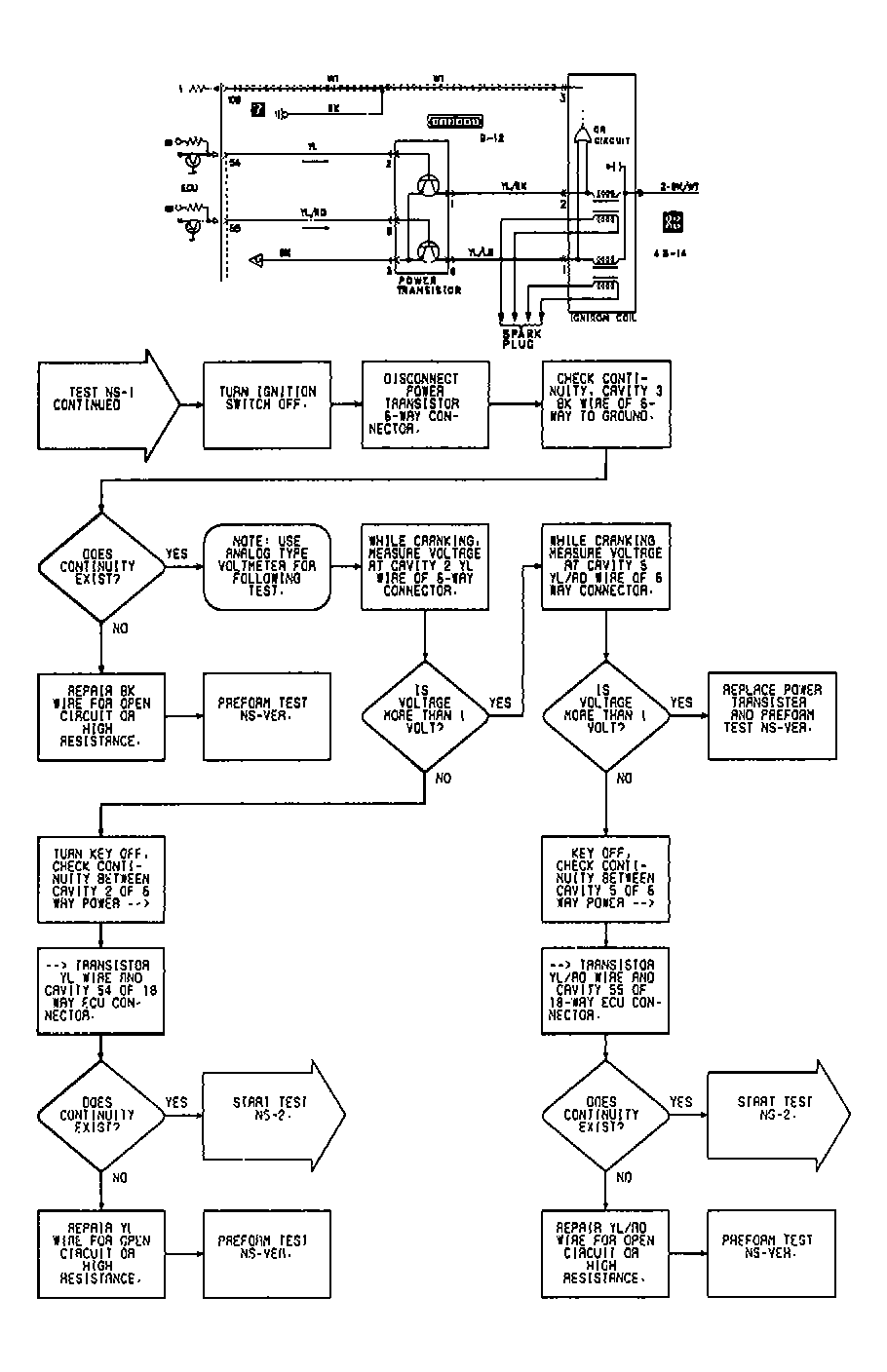

Fig 5: NS-1 Flow Chart & Circuit Diagram (5 of 5)
G90H12655
