Throttle Body: Installation: 2.0L/2.4L

Fig 1: THROTTLE BODY GASKET

Courtesy of CHRYSLER LLC

Make sure that the throttle body o-ring (1) is in place in the manifold.

Fig 2: THROTTLE BODY LOCATION
Courtesy of CHRYSLER LLC
Position throttle body on intake manifold alignment pins and install 2 mounting bolts. Do Not tighten bolts at this time.

Fig 3: BRACKET
Courtesy of CHRYSLER LLC
Install throttle body bracket.
Tighten throttle body bolts in a cross pattern to 9 N.m (79.5 in. lbs.).

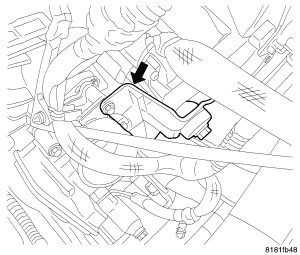

Fig 4: THROTTLE BODY BRACKET
Courtesy of CHRYSLER LLC
Throttle body bracket installed.

Fig 5: THROTTLE BODY ELECTRICAL CONNECTOR
Courtesy of CHRYSLER LLC
Connect electrical connector to throttle body.

Fig 6: WIRE CLIP CLOSE UP
Courtesy of CHRYSLER LLC
Install air tube and connect wiring harness to air tube.
Connect negative battery cable.
A Scan Tool may be used to learn electrical parameters. Go to the Miscellaneous menu, and then select ETC Relearn. If the relearn is not preformed, a Diagnostic Trouble Code (DTC) will be set. If necessary, use a scan tool to erase any Diagnostic Trouble Codes (DTC's) from PCM.
