Removal - 2.0L

The camshaft position sensor is mounted to the rear of the cylinder head. See Fig 1.

Fig 1: Camshaft Position Sensor Location

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove brake booster hose and electrical connector from holders on end of cylinder head cover and reposition.
2. Disconnect electrical connectors from camshaft position sensor.
3. Remove camshaft position sensor mounting screws. Remove sensor.
4. Loosen screw attaching target magnet to rear of camshaft. See Fig 2.

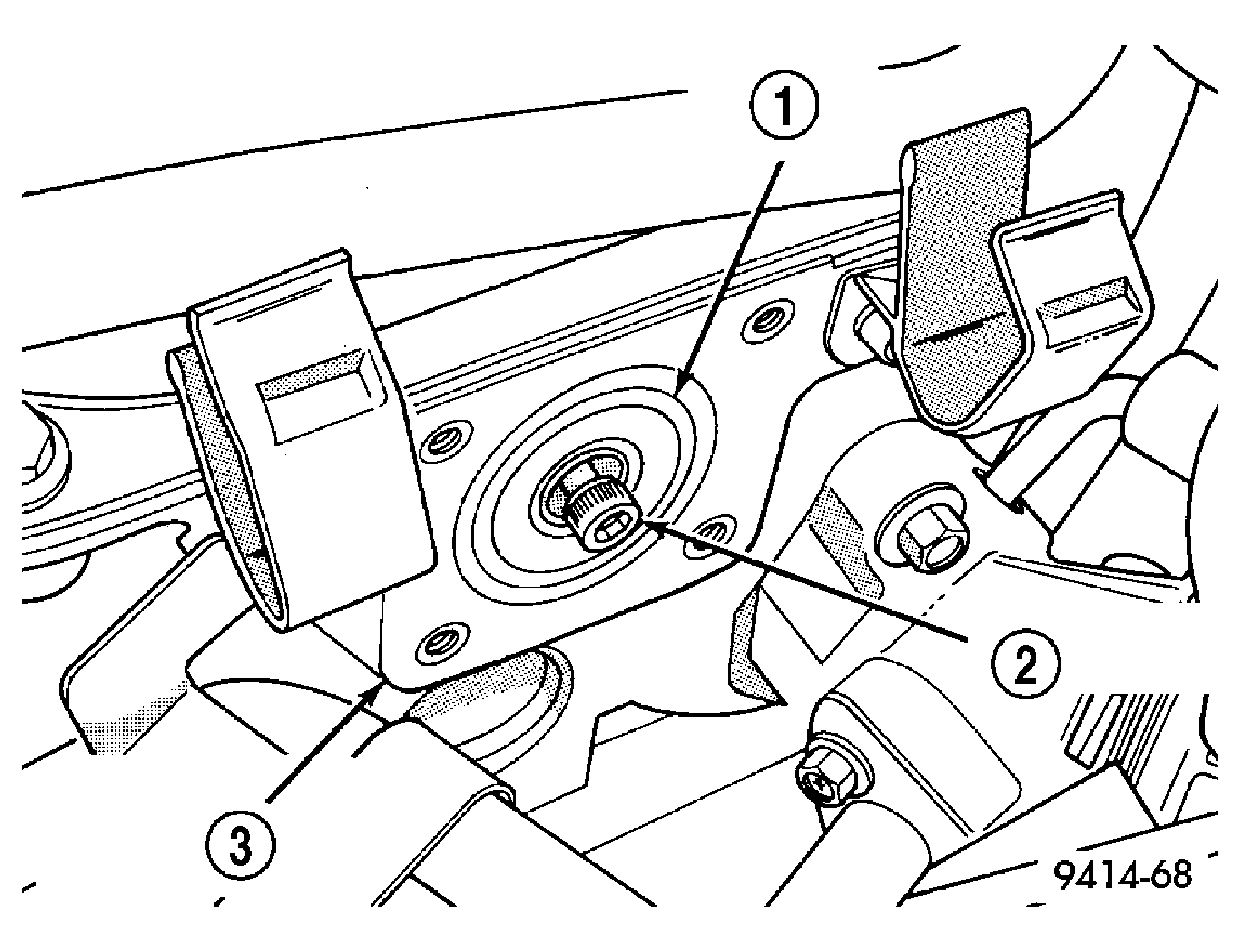

Fig 2: Target Magnet Removal/Installation

Courtesy of DAIMLERCHRYSLER CORP.
